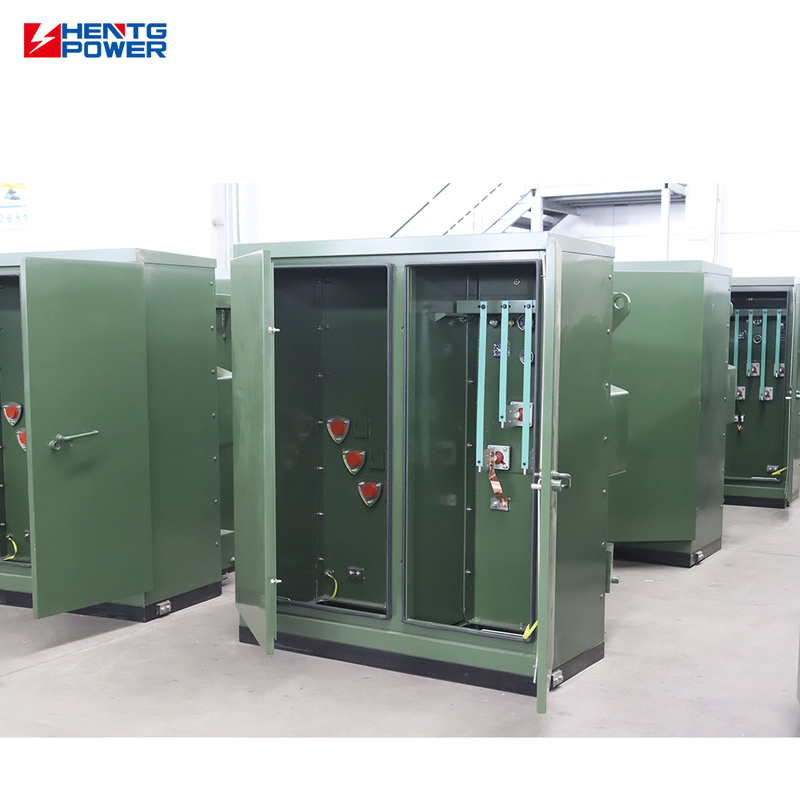

1250kVA Three Phase Pad Mounted Transformer with 35KV Rated Voltage and Dyn11 Vector Group for Power Distribution

Product Summary

HENTG Power Three-phase Loop Power Supply 1250kVA American 3-phase Pad Transformer North American Market Expertise: Extensive experience supplying transformers for projects across the United States and Canada. Local Support Network: Complete after-sales service with professional installation teams ...

Key Attributes

Brand Name: HENTG Power

Place of Origin: China

Certification: UL/CSA/IEEE

MOQ: 1

Product Custom Attributes

Highlight

1250kVA Three Phase Pad Mounted Transformer

35KV Rated Voltage Power Distribution Transformer

Dyn11 Vector Group Oil Immersed Distribution Transformer

Usage:

Power,Instrument,power Grid System,High Frequency,Distribution Transformer

Phase:

Three,Single,Single Or Three Phase

Coil Structure:

Toroidal,YNyn0d11,Other

Frequency:

50/60Hz,50Hz Or 60Hz

Rated Capacity:

1250kva

Standard:

IEC60076,IEC Standards,ANCI,DIN,GB1094-1996

Rated Voltage:

35KV,13.2KV,10KV,6.3KV,22KV

Material:

Copper,Alumnium Or Copper,Copper+alumnium

Output Voltage:

200v/220/240/380v/400v/415v/440v

Vector Group:

Dyn11,Dyn5,Yyno Or Others,Dyn11/Yzn11,Dyn11 / Yyn0

Cooling Method:

Oil Natural,ONAN,Oil Cooling

Winding Material:

Cooper

Input Voltage:

Customized Product,11kv/10.5kv/10kv/6.3kv/6kv,5-35kV

Advantage:

Best Price & Best Quality In China

Product Description

HENTG Power Three-phase Loop Power Supply 1250kVA American 3-phase Pad Transformer

1250kVA Three Phase Pad Mounted Transformer with 35KV Rated Voltage and Dyn11 Vector Group for Power Distribution 0

North American Market Expertise: Extensive experience supplying transformers for projects across the United States and Canada.

Local Support Network: Complete after-sales service with professional installation teams available throughout Canada and the USA for transformer commissioning, maintenance, and support.

Custom Design Capabilities: Specialized engineering for high-efficiency transformers, unique environmental conditions, low-noise operation, and both 50Hz/60Hz systems with k-factor ratings.

1250kVA Three Phase Pad Mounted Transformer with 35KV Rated Voltage and Dyn11 Vector Group for Power Distribution 1

Solar Energy Integration

Our transformers play a vital role in photovoltaic systems by converting and transmitting electrical energy. Solar panels generate DC electricity which is inverted to AC, then stepped up to appropriate grid voltages by our transformers.

Key functions include voltage adjustment for grid compatibility, electrical isolation for safety, and power stabilization for both grid-connected and off-grid applications. Optimized designs minimize energy losses while enhancing system reliability and economic viability.

1250kVA Three Phase Pad Mounted Transformer with 35KV Rated Voltage and Dyn11 Vector Group for Power Distribution 2

Key Features

Standards-Compliant Design: Manufactured to ANSI, DOE 2016, and IEEE C57.12.00 standards for safety and reliability
Flexible Power Options: Available from 30 to 3000 kVA with primary voltages from 2.4 kV to 35 kV (150 kV BIL) and secondary voltages up to 600V
Customizable Configurations: Multiple tap options including dual-voltage combinations with available impedance and loss variations
Compact & Safe Construction: Pad-mounted design for outdoor use with oil-immersed cooling and 65°C temperature rise rating
