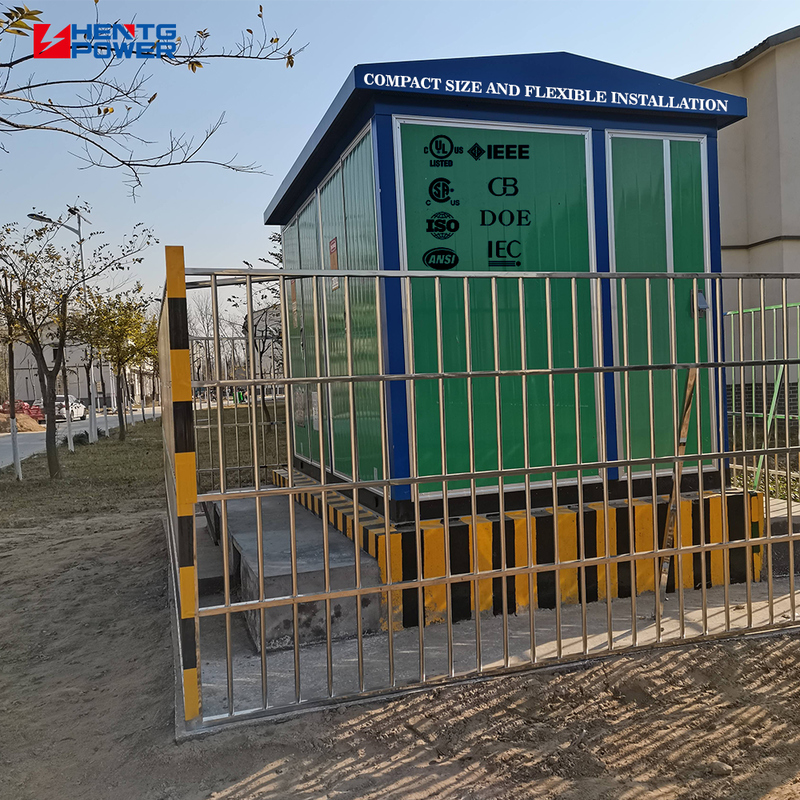

Outdoor Box Type Substation Compact Substation with 500kva 630kva 800kva Power Transformer
Transformer Manufacturer Box Type Substation Outdoor Power Transformer Compact Substation - 500kVA, 630kVA, 800kVA High-performance box type substation designed for outdoor power distribution applications. Available in 500kVA, 630kVA, and 800kVA configurations to meet diverse electrical infrastructu...
500kva Box Type Substation
,630kva Compact Substation
,800kva Power Transformer
High-performance box type substation designed for outdoor power distribution applications. Available in 500kVA, 630kVA, and 800kVA configurations to meet diverse electrical infrastructure requirements.
- Compact and space-saving design for efficient installation
- Robust construction for outdoor durability
- Available in 500kVA, 630kVA, and 800kVA capacity options
- Designed for reliable power distribution in industrial applications
- Complies with industry standards for electrical safety

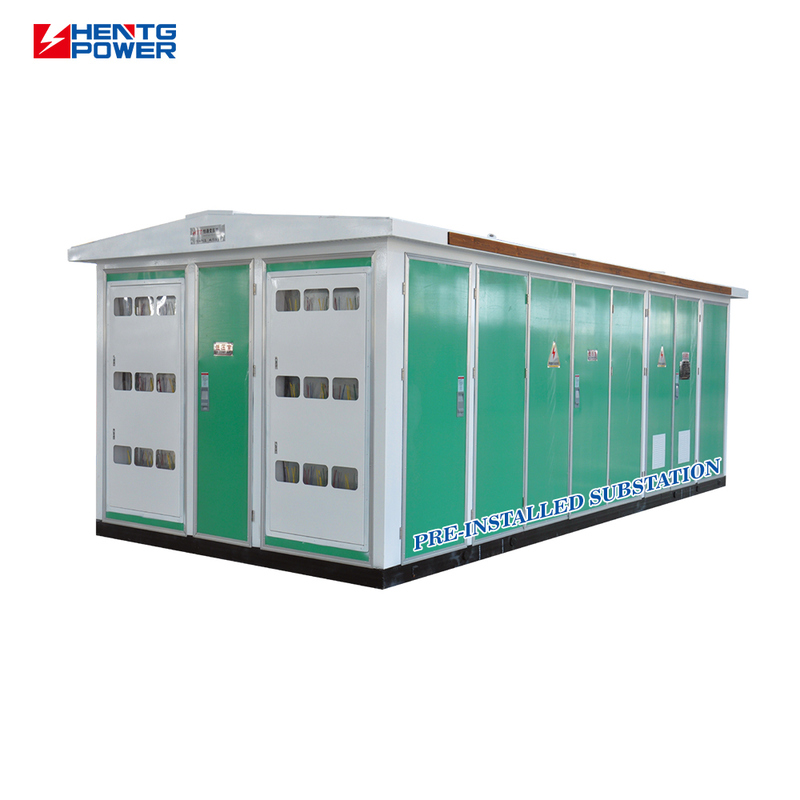

| Technical Data For YB Pre-installed Substation | |||
| HV | Item | Unit | Date |
| Rated Frequecy | Hz | 50 | |
| Rated Voltage | kV | 6 10 35 | |
| Industrial Requency Voltage-resisting Time / | kV | 32/36 42/48 95/118 | |
| isolationBallisticVoltage-resisting | |||
| Thunder and Lighting Ballistic Voltage-resisting Time /isolation Sectional Port | kV | 60/70 75/85 185/215 | |
| Rated Curent | A | 400 630 | |
| Rated Brief-period Curent-resisting | kA | 12.5(2s) 16(2s) 20(2s) | |
| Rated Crest Value Curent-resisting | kA | 32.5 40 50 | |
| LV | Rated Voltage | V | 380 220 |
| Rated Current Of Major Return Circuit | A | 100-3200 | |
| Branch Circuit | A | 10-800 | |
| Quantity Of Branch | line | 1月12日 | |
| Compensation Circuit | kVAR | 0-360 | |
| Transtorming | Rated Capacity | kVA | 50-2000 |
| Short-circuit lmpendance | % | 4 6 | |
| Scope Of Branch Connection | +2x2.5% ±5% | ||
| Vector Group | Yyn0 Dyn11 | ||
-
Outdoor HV MV Substation Compact Transformer 45kVA 75kVA 112kVA Ground Mounted
Outdoor HV MV Substation Compact Transformer 45kVA 75kVA 112kVA Ground Mounted Product Specifications Attribute Value Type Power transformer, distribution transformer, Auto Transformer Frequency 50Hz, 60Hz Winding Material Aluminum Application Power Distribution System Phase Three Input Voltage 3kV, 6kV, 10kV, 15kV, 35kV, 69kV, 110kV, 220kV, 400kV, 115kV, 132kV Output Voltage 5V, 400V, 208V, 200V, 415V, 127V, 11kV, 12V, 24V, 48V, 110V, 220V, 36V, 380V, 440V, 480V, 9V
-
500kVA Compact Substation Transformer Electric Voltage Transformer With Flyback Topology
500kVA Compact Substation Transformer Electric Voltage Transformer With Flyback Topology Product Specifications Attribute Value Type power transformer, distribution transformer, European Box-Type Substation Material Aluminum, Copper, Copper Winding Frequency 50Hz, 60Hz Shape flat, Rectangle Topology Flyback, Boost, BUCK, FORWARD Winding Material Copper, Aluminum Application Power Phase Three Coil Structure TOROIDAL Coil Number Multi-winding coil Input Voltage 380V, 180V, 115V
-
Box Type Compact Substation 500kva 630kva 800kva Outdoor Power Transformer
Box Type Compact Substation 500kva 630kva 800kva Outdoor Power Transformer Product Specifications Attribute Value Type Power transformer, distribution transformer Material Aluminum, Copper Frequency 50Hz, 60Hz Input Voltage 6kV, 10kV, 15kV, 35kV, 69kV, 110kV, 115kV Output Voltage 415V, 127V, 200V, 208V, 400V, 380V, 220V, 110V, 480V Capacity 500-2000 kVA Voltage Rating 11kV Power Rating 500kVA Insulation Class Class F Dimensions 1200mm x 800mm x 1000mm Cooling Method ONAN
