11KV 2000KVA Oil-Immersed Box Type Substation Intelligent HV/MV Transformer for Industrial Applications

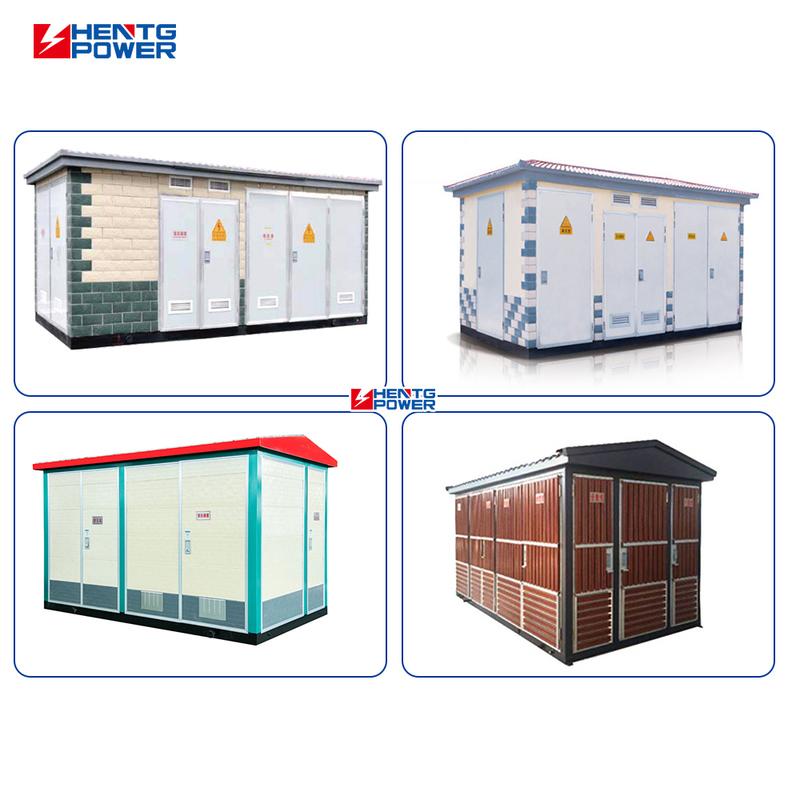

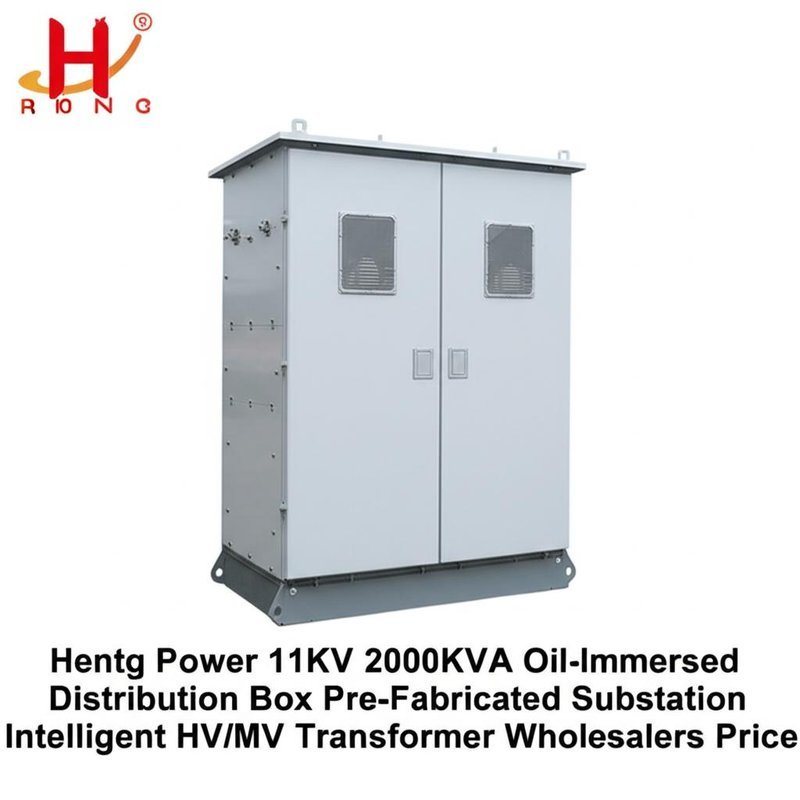

Hentg Power 11KV 2000KVA Oil-Immersed Distribution Box Pre-Fabricated Substation Intelligent HV/MV Transformer Product Features Aesthetic and Durable Appearance: Clean, modern design with strong environmental adaptability that integrates well with surrounding architecture and landscaping. Proximity ...
11KV Box Type Substation
,2000KVA Prefabricated Substation
,Oil-Immersed Electrical Transformer Substation
- Aesthetic and Durable Appearance: Clean, modern design with strong environmental adaptability that integrates well with surrounding architecture and landscaping.
- Proximity to Medium-Voltage Load Centers: Enables deployment close to load centers, reducing distribution line length, lowering losses, and improving power quality and reliability.
- Cost-Effective Operation: Requires no civil infrastructure or full-time staffing, with long maintenance cycles for lower total cost of ownership.
- Reusable and Environmentally Friendly: Modular design allows relocation and reuse based on urban development needs, supporting sustainable development goals.
| HV Specifications | ||
|---|---|---|
| Rated Frequency | Hz | 50 |
| Rated Voltage | kV | 6, 10, 35 |
| Max Working Voltage | kV | 6.9, 11.5, 40.5 |
| Industrial Frequency Voltage-resisting | kV | 32/36, 42/48, 95/118 |
| Thunder and Lighting Voltage-resisting | kV | 60/70, 75/85, 185/215 |
| Rated Current | A | 400, 630 |
| Rated Brief-period Current-resisting | kA | 12.5(2s), 16(2s), 20(2s) |
| Rated Crest Value Current-resisting | kA | 32.5, 40, 50 |
| LV Specifications | ||
|---|---|---|
| Rated Voltage | V | 380, 220 |
| Rated Current Of Major Circuit | A | 100-3200 |
| Rated short-circuit Current-resisting | kA | 15, 30, 50 |
| Rated Crest Value Current-resisting | kA | 30, 63, 110 |
| Branch Circuit | A | 10-800 |
| Quantity Of Branch | line | 1-12 |
| Compensation Circuit | kVAR | 0-360 |
| Transformer Specifications | ||
|---|---|---|
| Rated Capacity | kVA | 50-2000 |
| Short-circuit Impedance | % | 4, 6 |
| Scope Of Branch Connection | ±2x2.5%, ±5% | |
| Vector Group | Yyn0, Dyn11 | |
-
Outdoor HV MV Substation Compact Transformer 45kVA 75kVA 112kVA Ground Mounted
Outdoor HV MV Substation Compact Transformer 45kVA 75kVA 112kVA Ground Mounted Product Specifications Attribute Value Type Power transformer, distribution transformer, Auto Transformer Frequency 50Hz, 60Hz Winding Material Aluminum Application Power Distribution System Phase Three Input Voltage 3kV, 6kV, 10kV, 15kV, 35kV, 69kV, 110kV, 220kV, 400kV, 115kV, 132kV Output Voltage 5V, 400V, 208V, 200V, 415V, 127V, 11kV, 12V, 24V, 48V, 110V, 220V, 36V, 380V, 440V, 480V, 9V
-
500kVA Compact Substation Transformer Electric Voltage Transformer With Flyback Topology
500kVA Compact Substation Transformer Electric Voltage Transformer With Flyback Topology Product Specifications Attribute Value Type power transformer, distribution transformer, European Box-Type Substation Material Aluminum, Copper, Copper Winding Frequency 50Hz, 60Hz Shape flat, Rectangle Topology Flyback, Boost, BUCK, FORWARD Winding Material Copper, Aluminum Application Power Phase Three Coil Structure TOROIDAL Coil Number Multi-winding coil Input Voltage 380V, 180V, 115V
-
Box Type Compact Substation 500kva 630kva 800kva Outdoor Power Transformer
Box Type Compact Substation 500kva 630kva 800kva Outdoor Power Transformer Product Specifications Attribute Value Type Power transformer, distribution transformer Material Aluminum, Copper Frequency 50Hz, 60Hz Input Voltage 6kV, 10kV, 15kV, 35kV, 69kV, 110kV, 115kV Output Voltage 415V, 127V, 200V, 208V, 400V, 380V, 220V, 110V, 480V Capacity 500-2000 kVA Voltage Rating 11kV Power Rating 500kVA Insulation Class Class F Dimensions 1200mm x 800mm x 1000mm Cooling Method ONAN
