HENTG Power Single Phase Pole Mounted Transformer 100KVA Outdoor Oil Immersed 480V/400V for Overhead Line Distribution

Product Summary

Fully sealed, oil-immersed design Features: Double-sealed structure and insulating oil cooling system. Advantages: Effectively protects against moisture, dust, and corrosion, suitable for extreme outdoor environments. Values: Extends service life to over 20 years, reducing maintenance costs and the risk of power outages. High-efficiency silicon steel core and low-loss coils Features: Utilizes high-permeability silicon steel and copper windings, achieving no-load losses of

Key Attributes

Brand Name: HENTG Power

Place of Origin: China

Certification: CE

MOQ: 1

Product Custom Attributes

Highlight

100KVA pole mounted transformer

single phase oil immersed transformer

480V overhead line distribution transformer

Operating Temperature:

-40 To 60 Degrees Celsius

Dimensions:

24" X 24" X 36"

Power Rating:

1-10 KVA

Advantage:

High Quanlity

Frequency:

60 Hz

Standard:

IEC60076

Mounting Type:

Pole Mounted

Connection Type:

Delta/Wye

Number Of Taps:

Shape:

ROUND

Usage:

Outdoor Power Line Operation

Temperature Rise:

55°C

Secondary Connection:

Star

Type:

Oil-Immersed Transformer

Overload Capacity:

1.2 Times Rated Power For 1 Hour

Product Description

Fully sealed, oil-immersed design

Features: Double-sealed structure and insulating oil cooling system.

Advantages: Effectively protects against moisture, dust, and corrosion, suitable for extreme outdoor environments.

Values: Extends service life to over 20 years, reducing maintenance costs and the risk of power outages.

High-efficiency silicon steel core and low-loss coils

Features: Utilizes high-permeability silicon steel and copper windings, achieving no-load losses of less than 150W.

Advantages: Energy conversion efficiency >98%, reducing power waste during operation.

Values: Significantly reduces electricity costs and supports green energy compliance (such as IEEE standards).

Compact pole-mount and compatible design

Features: Lightweight construction (<800kg) and pre-installed lifting rings allow for compatibility with standard utility poles.

Advantages: Rapid deployment on existing power grids, eliminating the need for additional infrastructure modifications.

Values: Reduces project installation time by over 50%, optimizing grid upgrade efficiency.

HENTG Power Single Phase Pole Mounted Transformer 100KVA Outdoor Oil Immersed 480V/400V for Overhead Line Distribution 0

HENTG Power Single Phase Pole Mounted Transformer 100KVA Outdoor Oil Immersed 480V/400V for Overhead Line Distribution 1

HENTG Power Single Phase Pole Mounted Transformer 100KVA Outdoor Oil Immersed 480V/400V for Overhead Line Distribution 2

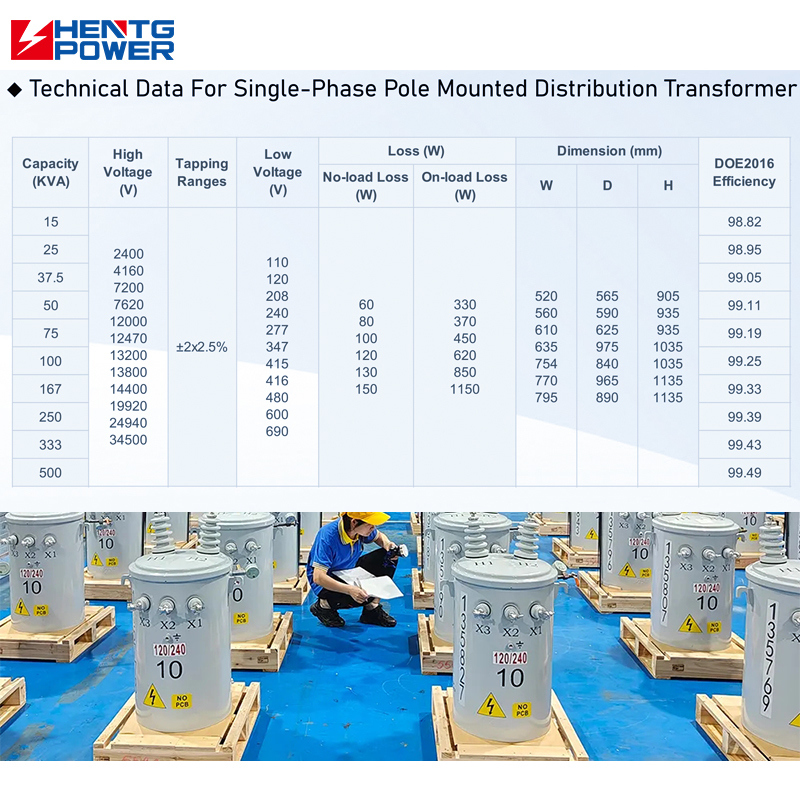

_Capacity _(KVA)	_HV	_{Tapping range}	_LV	No-load loss	_{Load loss}	Dimension (mm)			_Efficiency
						W	D	H
15	₂₄₀₀ ₄₁₆₀ ₇₂₀₀ ₇₆₂₀ ₁₂₀₀₀ ₁₂₄₇₀ ₁₃₂₀₀ ₁₃₈₀₀ ₁₄₄₀₀ ₁₉₉₂₀ ₂₄₉₄₀ ₃₄₅₀₀	_±2* _2.5%	₁₁₀ ₁₂₀ ₂₀₈ ₂₄₀ ₂₇₇ ₃₄₇ ₄₁₅ ₄₁₆ ₄₈₀ ₆₀₀ ₆₉₀	₆₀ ₈₀ ₁₀₀ ₁₂₀ ₁₃₀ ₁₅₀	330 ₃₇₀ ₄₅₀ ₆₂₀ ₈₅₀ ₁₁₅₀	520 560 610 635 754 770 795	565 590 625 975 840 965 890	905 935 935 1035 1035 1135 1135	98.82
25									98.95
37.5									99.05
50									99.11
75									99.19
100									99.25
167									99.33
250									99.39
333									99.43
500									99.49

WHY CHOOSE US

● Professional 30+ senior engineers offer 24 hours online service and response within 30 min. ● 100000m² factory, 250 workers, 30 +engineers .● 4 production line, 10000+ sets annual production capacity. ● 100% OQC testing with 25 detection contents. ● 15 years power transformer designing and production experience. ● Products comply with GB 20052-2024/ANSI/IEEE/DOE2016/CSA/IEC60076 standard. ● Cross-industry power transformer solution. ● Global on-site technical support.

Step 1: We will respond to your inquiry within 1 hour and recommend suitable transformer according to your needs. At the same time, we will provide you with reasonable quotations and payment terms.

We have a professional and independent drawing team and technical team, and we will confirm all the contents on the drawing with you within 7 days after payment. The drawing usually contains technical data, weight and parts list. If you have any questions, please click here to consult. Step 2: After designing the production drawing, the factory will prepare the stock, produce, and conduct quality inspection before shipment. If you have special accessory requirements, we can provide you with accessories. Our raw materials are strictly screened. In the quality inspection stage, we will provide you with the dual guarantee of QC report and test report to escort your products.
