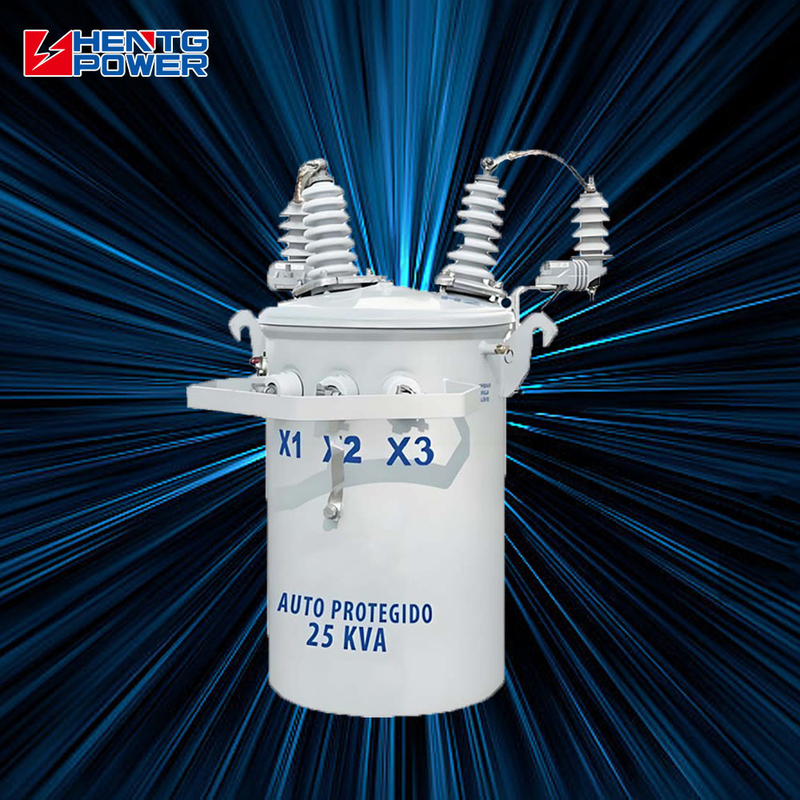

15kVA to 630kVA Single Phase Pole Mounted Power Transformer 33kV
HENTG Power Single Phase Pole Mounted Power Transformer (15kVA-100kVA) Technical Specifications Rated capacity (KVA) HV Tapping range LV No-load loss Load loss Dimension (mm) Efficiency 15 2400-34500 ±2*2.5% 110-690 60-150 330-1150 520-795 98.8-99.5% 25 99.0% 37.5 99.1% 50 99.1% 75 99.2% 100 99.3% Key Features and Benefits Reduced Line Losses: Installed close to the load, these transformers shorten the low-voltage supply radius, reducing line losses by over 99% and improving
15kVA pole mounted power transformer
,single phase oil immersed transformer
,33kV pole mounted transformer
| Rated capacity (KVA) | HV | Tapping range | LV | No-load loss | Load loss | Dimension (mm) | Efficiency |
|---|---|---|---|---|---|---|---|
| 15 | 2400-34500 | ±2*2.5% | 110-690 | 60-150 | 330-1150 | 520-795 | 98.8-99.5% |
| 25 | 99.0% | ||||||
| 37.5 | 99.1% | ||||||
| 50 | 99.1% | ||||||
| 75 | 99.2% | ||||||
| 100 | 99.3% | ||||||
- Reduced Line Losses: Installed close to the load, these transformers shorten the low-voltage supply radius, reducing line losses by over 99% and improving energy efficiency.
- Energy-Saving Design: Features high-efficiency wound core design for improved electrical performance and energy efficiency. Compact and lightweight for easier installation.
- Flexible Installation: Pole-mounted suspension installation allows direct mounting on utility poles without occupying ground space, ideal for rural and suburban areas.
- Cost-Effective Solution: Requires lower capital investment compared to traditional transformer systems, suitable for large-scale deployment.
- Reliable Operation: Fully enclosed structure provides excellent protection against dust and moisture. Strong overload capacity ensures stable operation during load surges.
- Professional 30+ senior engineers offer 24 hours online service with response within 30 minutes
- 100,000m² factory with 250 workers and 30+ engineers
- 4 production lines with 10,000+ sets annual production capacity
- 100% OQC testing with 25 detection contents
- 15 years power transformer designing and production experience
- Products comply with GB 20052-2024/ANSI/IEEE/DOE2016/CSA/IEC60076 standards
- Cross-industry power transformer solutions
- Global on-site technical support
HENTG Power is an ISO9001 certified transformer manufacturer specializing in reliable, high-performance solutions for global power systems since 2011. With a 100,000 m² factory, over 250 skilled workers, more than 30 senior engineers, and 10+ professional testing engineers, we deliver high-quality transformer solutions with strong production capacity of 20,000 units/year.
Our products comply with GB 20052-2024 and IEC 60076 standards, serving global markets across various applications including dry transformers, oil immersed transformers, substations, switchgear, and distribution boxes.
Guided by our mission — "To be Your Partner in Every Power Project." — we implement strict 5S factory management and conduct 100% Outgoing Quality Control (OQC) with 8 comprehensive testing procedures to ensure performance and reliability.
-
Industrial Grade Pole Mounted Electrical Power Transformer 15kVA-100kVA 60Hz Frequency
Industrial Grade Pole Mounted Electrical Power Transformer 15kVA-100kVA 60Hz Frequency Product Specifications Attribute Value Frequency 60Hz Phase Single Phase Application Power Transformer Output Voltage 110V, 220V, 380V, 400V, 440V, 480V Input Voltage 11kV, 10.5kV, 3kV, 6.6kV, 6.3kV, 35kV, 12.47kV, 6kV Type Pole Mounted Transformer Standard DOE/IEC60076/IEEE Warranty 2 Years Vector Group Dyn11/Yyn0/Yd11/YNd11 MOQ 1 Set Usage Outdoor Power Line Operation Customized Accept
-
60Hz Single Phase Pole Mounted Transformer 75kva 100kva 120V/240V
60Hz Single Phase Pole Mounted Transformer 75kva 100kva 120V/240V Product Specifications Attribute Value Frequency 60Hz Phase Single Phase Application Power Transformer Output Voltage 110V, 220V, 380V, 400V, 440V, 480V Input Voltage 11kV, 10.5kV, 3kV, 6.6kV, 6.3kV, 35kV, 12.47kV, 6kV High Voltage 6KV/6.6KV/10KV/10.5KV/11KV Low Voltage 120-240/240-480/347/600V Rated Capacity 10KVA-500KVA Vector Group Dyn11/Yyn0/Yd11/YNd11 Standard DOE/IEC60076/IEEE Warranty 2 Years MOQ 1 Unit
-
50kVA 100 Kva Pole Mounted Transformer Single Phase Oil Immersed Transformer IP65 Class
50kVA 100 Kva Pole Mounted Transformer Single Phase Oil Immersed Transformer IP65 Class Product Specifications Attribute Value Frequency 50Hz, 60Hz, 50/60Hz Phase Single Phase Application Power Transformer Output Voltage 110V, 220V, 380V, 400V Input Voltage 6.6kV, 12.47kV, 3kV, 6.3kV, 6kV Type Oil-Immersed Transformer Rated Capacity 25-250kVA Cooling Method Dry Type Insulation Class Class A Protection Class IP65 Winding Material Copper Operating Temperature 40°C Mounting Type
