Place of Origin:
Jiangsu, China
Brand Name:
HENTG Power
Certification:
CE
Model Number:
ZGS
| Attribute | Value |
|---|---|
| Frequency | 50Hz, 60Hz, 50Hz/60Hz |
| Phase | Single Phase |
| Coil Structure | Round coil |
| Output Voltage | 220V, 380V, 400V, 440V, 480V |
| Input Voltage | 35kV, 6kV, 10kV |
| Type | Isolation Transformer, AUTOTRANSFORMER, Pad Mounted Transformer |
| Cooling Method | ONAN |
| Warranty | 2 Years |
| Rated Power | 10-167 kVA |
| Protection Class | IP55 |
| Standards | ANSI/IEEE C57.12.28 |

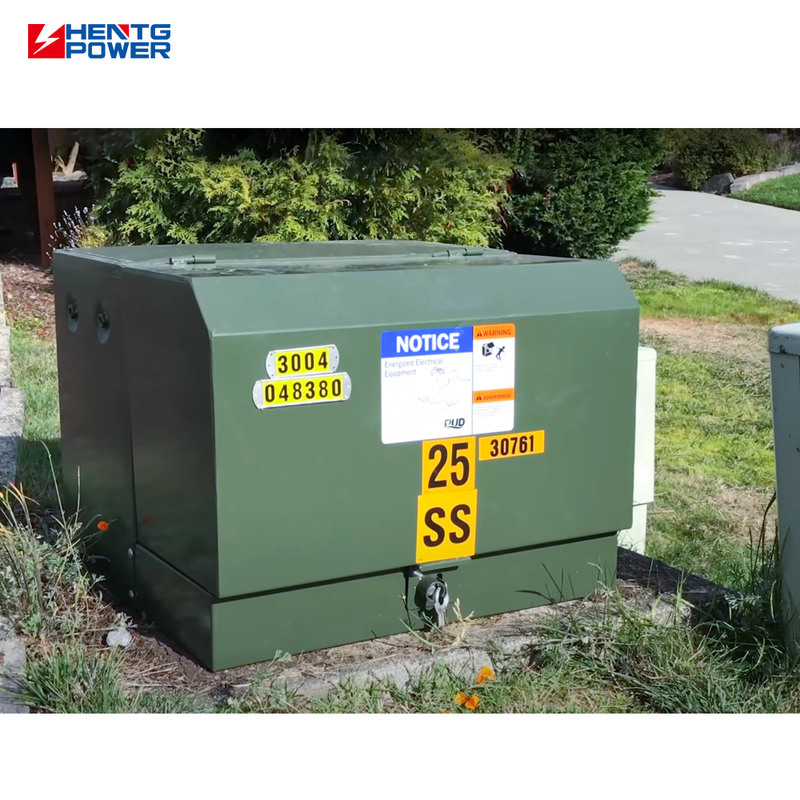

HENTG's Single Phase Pad Mounted Oil-Immersed Distribution Transformer (15kVA~500kVA) is designed for reliable, safe, and efficient power distribution in residential, commercial, and light industrial applications. Featuring a compact, tamper-proof, and weather-resistant pad-mounted design, this transformer ensures minimal maintenance and excellent performance in outdoor environments.
| Capacity (KVA) | HV | Tapping Range | LV | No-load Loss | Load Loss | Dimension (mm) | Efficiency |
|---|---|---|---|---|---|---|---|
| 15 | 2400-34500V | ±2X2.5% | 110-690V | 60W | 330W | 610×740×840 | 98.82% |
| 25 | 2400-34500V | ±2X2.5% | 110-690V | 80W | 370W | 610×740×840 | 98.95% |
| 50 | 2400-34500V | ±2X2.5% | 110-690V | 100W | 450W | 610×760×840 | 99.05% |
| 167 | 2400-34500V | ±2X2.5% | 110-690V | 150W | 1150W | 740×940×840 | 99.33% |
We respond within 1 hour with suitable transformer recommendations, reasonable quotations, and payment terms. Our technical team confirms all drawing details within 7 days after payment.
After design approval, we prepare stock, produce, and conduct rigorous quality inspections. We provide QC and test reports, with optional Factory Acceptance Testing (FAT).
We provide professional installation guidance and on-site support. All products come with a 2+ year warranty and ongoing technical assistance.
HENTG POWER is a professional designer, manufacturer and installer of power system solutions founded in 2011, specializing in reliable, high-performance solutions for global power systems.
We conduct pre-production sampling, final inspections before shipment, and provide QC & test reports. We accept Factory Acceptance Testing and offer a 2+ year warranty.
We have a professional technical team with 30+ senior engineers offering 24/7 support with 30-minute response times. Our independent drawing team confirms all specifications within 7 days.
We accept OEM orders and offer flexible payment terms. Our services include custom design, manufacturing, testing, installation support, and long-term maintenance.
