Manufacturer Direct Sale Single Phase Pad-mounted Transformer 100KVA 250KVA 500KVA

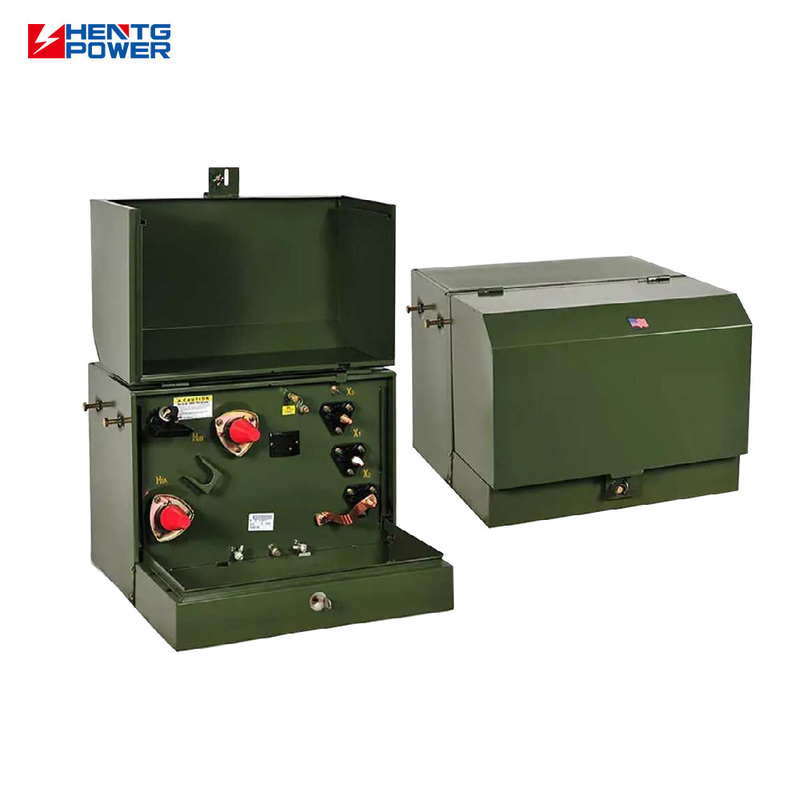

Single Phase Pad-Mounted Transformer (100KVA - 500KVA) Product Overview HENTG's Single Phase Pad Mounted Oil-Immersed Distribution Transformer (15kVA~500kVA) is designed for reliable, safe, and efficient power distribution in residential, commercial, and light industrial applications. Featuring a compact, tamper-proof, and weather-resistant pad-mounted design, this transformer ensures minimal maintenance and excellent performance in outdoor environments. Key Specifications
100kva oil filed transformer
,100kva single phase pad mounted transformer
,250kva oil filed transformer

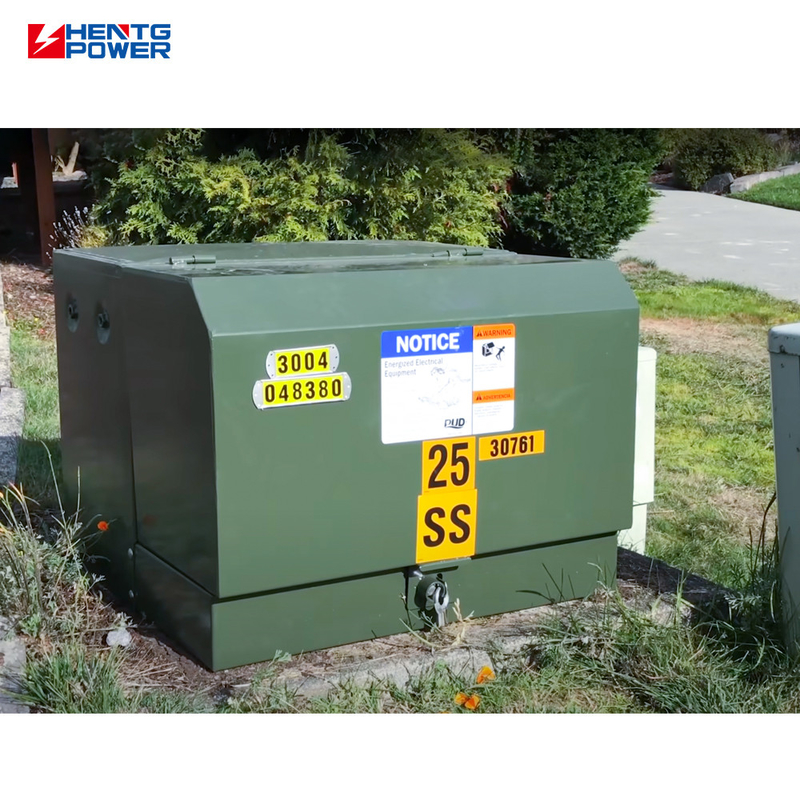

HENTG's Single Phase Pad Mounted Oil-Immersed Distribution Transformer (15kVA~500kVA) is designed for reliable, safe, and efficient power distribution in residential, commercial, and light industrial applications. Featuring a compact, tamper-proof, and weather-resistant pad-mounted design, this transformer ensures minimal maintenance and excellent performance in outdoor environments.
| Attribute | Value |
|---|---|
| Type | Power transformer, distribution transformer |
| Material | Metal, Copper/Aluminum |
| Frequency | 50Hz, 60Hz |
| Winding Material | Aluminum, Copper |
| Phase | Single Phase |
| Input Voltage | 10kV, 15kV, 35kV, 69kV, 110kV, 115kV, 3kV, 6kV |
| Output Voltage | 400V, 200V, 415V, 220V, 380V, 110V, 480V |
| Capacity | 50kVA - 167kVA |

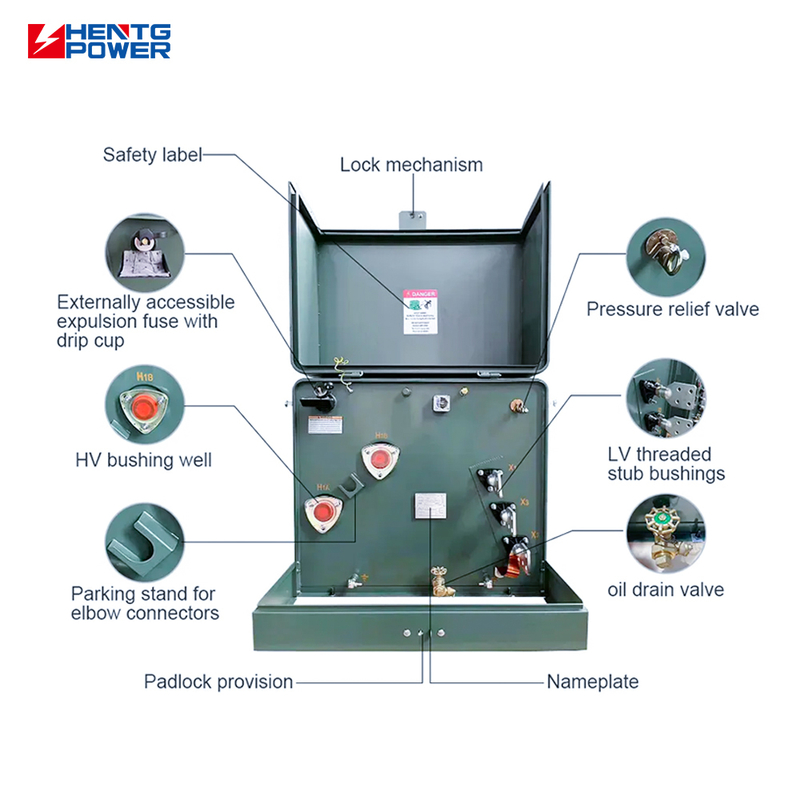

- Bayonet-style fuse protection
- Pressure relief valve & liquid level gauge
- Surge arrester mounting brackets
- Stainless steel cabinet or marine paint
- Pad mounting base or lifting lugs
| Capacity (KVA) | HV | Tapping Range | LV | No-load Loss | Load Loss | Dimension (mm) | Efficiency |
|---|---|---|---|---|---|---|---|
| 15 | 2400-34500V | ±2X2.5% | 110-690V | 60-150W | 330-1150W | 610-740 x 740-960 x 840mm | 98.82% |
| 25 | 98.95% | ||||||
| 37.5 | 99.05% | ||||||
| 50 | 99.11% | ||||||
| 75 | 99.19% | ||||||
| 100 | 99.25% | ||||||
| 167 | 99.33% | ||||||
| 250 | 99.39% | ||||||
| 333 | 99.43% | ||||||
| 500 | 99.49% | ||||||
We respond within 1 hour with suitable transformer recommendations, competitive quotations, and payment terms. Our technical team confirms all drawing details within 7 days after payment, including technical data, weight, and parts list.
After finalizing production drawings, we prepare stock, manufacture, and conduct rigorous quality inspections. We provide QC reports and test reports, with raw materials strictly screened to ensure quality.
Our professional team provides installation guidance and on-site support. All products come with a 2+ year warranty service.
HENTG POWER is a professional designer, manufacturer and installer of power system solutions founded in 2011, occupying 100,000 square meters. We specialize in reliable, high-performance solutions for global power systems.
We conduct pre-production sampling and final inspections before shipment, providing QC & test reports. We accept Factory Acceptance Tests (FAT) and manufacture according to ANSI/IEEE/DOE2016/CSA/IEC60076 standards.
We have a professional drawing and technical team with 30+ senior engineers offering 24/7 support with 30-minute response times. We confirm all drawing details within 7 days.
We accept OEM orders with negotiable payment terms, offering customized solutions to meet specific requirements.
-
