50kva Single Phase Power Transformer 75 Kva Copper Coil Oil Filed Transformer IP54
50kVA Single Phase Power Transformer 75 KVA Copper Coil Oil Filled Transformer IP54 Product Overview High-performance single phase oil-immersed transformer with copper winding construction, designed for reliable power distribution in various commercial and industrial applications. Key Specifications Frequency 50Hz, 60Hz Phase Single Phase Rated Capacity 50KVA Cooling Method Oil Cooling (ONAN) Vector Group Dyn11 / Yyn0 Winding Material 100% Copper Protection Rating IP54
50kva Single Phase Power Transformer
,IP54 75 Kva Oil Filed Transformer
,Copper Coil Single Phase Power Transformer
High-performance single phase oil-immersed transformer with copper winding construction, designed for reliable power distribution in various commercial and industrial applications.
| Frequency | 50Hz, 60Hz |
| Phase | Single Phase |
| Rated Capacity | 50KVA |
| Cooling Method | Oil Cooling (ONAN) |
| Vector Group | Dyn11 / Yyn0 |
| Winding Material | 100% Copper |
| Protection Rating | IP54 |
| Operating Temperature | 40°C |
| Insulation Class | Class A |
| Core Material | Silicon Steel |
- Fully Sealed Construction - Oil-immersed design for underground and above-ground distribution with complete enclosure protection
- Global Compliance - Meets CE, IEEE, and ANSI standards for safe and efficient operation
- High Efficiency - ONAN cooling system ensures optimal thermal performance and reliability
- Versatile Compatibility - Single phase operation, 60Hz/50Hz compatible for global applications
- Durable Construction - Steel enclosure with silicon steel core for long service life

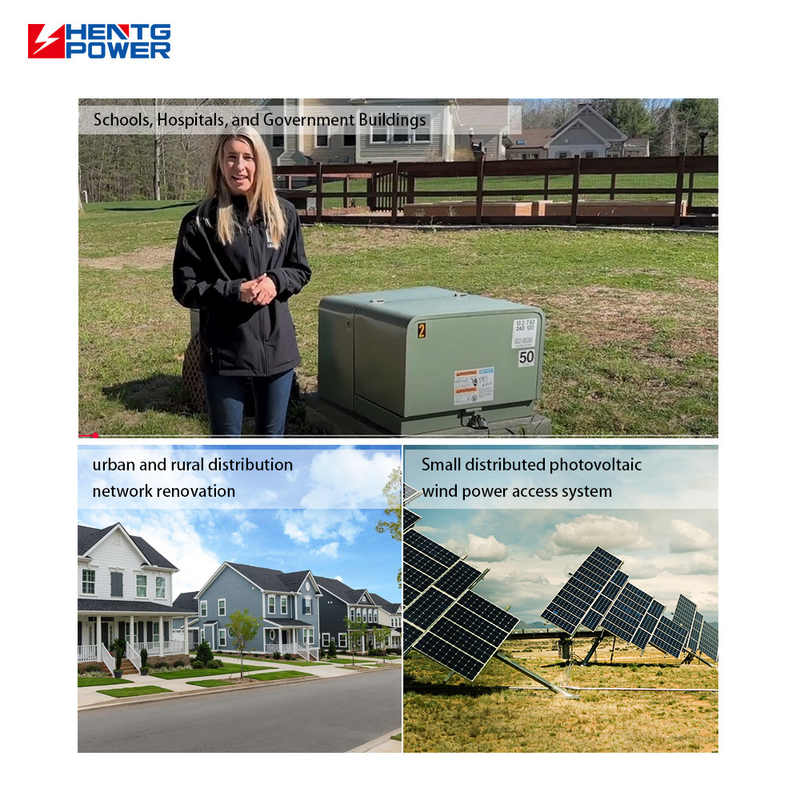

- Residential power distribution systems
- Commercial buildings and light industrial facilities
- Shopping centers and office parks
- Urban utility networks
- Renewable energy projects (solar power integration)
| Capacity (KVA) | HV | Tapping Range | LV | No-load Loss | Load Loss | Efficiency |
|---|---|---|---|---|---|---|
| 50 | 2400-34500V | ±2X2.5% | 110-690V | 60-150W | 330-1150W | 99.11% |
We respond within 1 hour with suitable transformer recommendations, competitive quotations, and payment terms. Our technical team confirms all drawing details within 7 days after payment.
After design approval, we prepare stock, manufacture, and conduct rigorous quality inspections. We provide QC and test reports, with optional Factory Acceptance Testing (FAT).
We offer professional installation guidance and on-site support. All products come with a minimum 2-year warranty and comply with GB 20052-2024 and IEC 60076 standards.
- 30+ senior engineers providing 24/7 technical support
- 100,000m² production facility with 250 skilled workers
- 4 dedicated production lines with 10,000+ units annual capacity
- 100% quality control with 25-point inspection process
- 15 years of transformer design and manufacturing experience
- Compliance with GB, ANSI, IEEE, DOE, CSA, and IEC standards
- Global on-site technical support available
-
