Home > Products >

Single Phase Pad Mounted Transformer

>

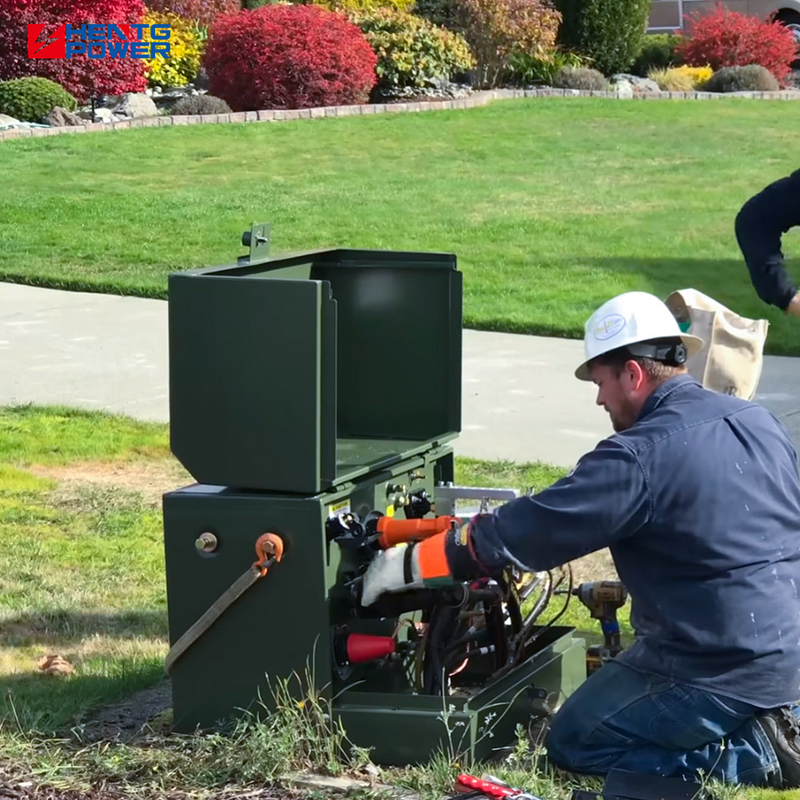

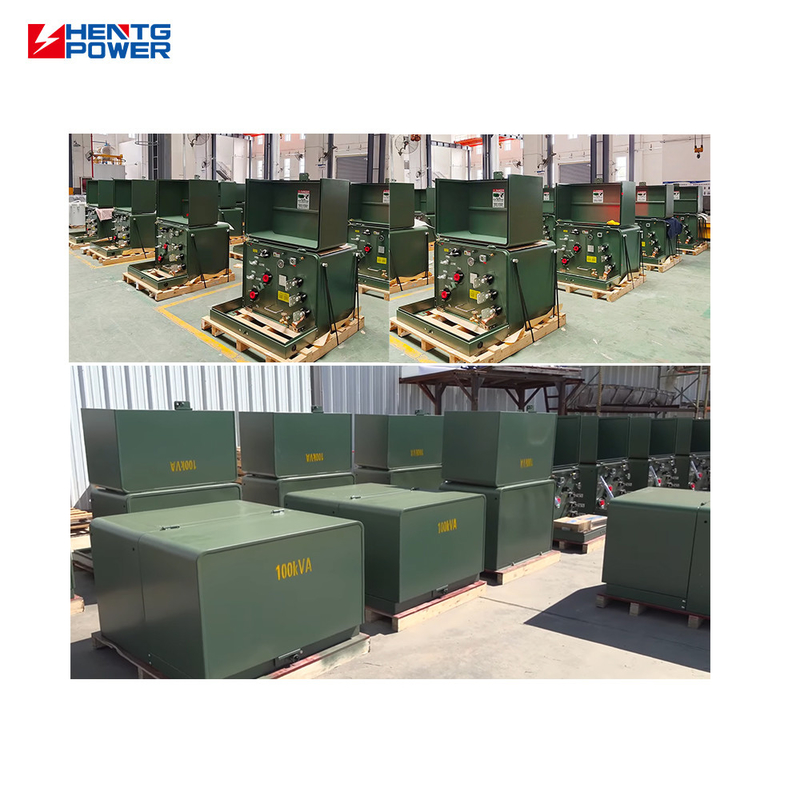

Medium Voltage Pad Mounted Transformer 37.5kVA Single Phase Low Losses Loop Feed Type

Quality Medium Voltage Pad Mounted Transformer 37.5kVA Single Phase Low Losses Loop Feed Type factory
Quality Medium Voltage Pad Mounted Transformer 37.5kVA Single Phase Low Losses Loop Feed Type factory
Quality Medium Voltage Pad Mounted Transformer 37.5kVA Single Phase Low Losses Loop Feed Type factory

Medium Voltage Pad Mounted Transformer 37.5kVA Single Phase Low Losses Loop Feed Type

Product Summary

Medium Voltage Pad Mounted Transformer 37.5kVA Single Phase Low Losses Loop Feed Type Product Specifications Attribute Value Type Distribution Transformer, Power Transformer, Oil-filled Transformer Frequency 50Hz, 60Hz Winding Material Aluminum Phase Single Phase Input Voltage 3kV - 400kV (Multiple Options) Output Voltage 5V - 480V (Multiple Options) Standards ANSI/IEEE C57.12.25, GB 20052-2024, IEC 60076 Cooling KNAN/ONAN; Self-Cooled Product Overview HENTG's Single Phase

Key Attributes
Brand Name: HENTG Power
Model Number: ZGS
Place of Origin: China
Certification: UL/CSA/IEEE
MOQ: 1
Product Custom Attributes
Highlight

Low Losses Pad Mounted Transformer 37.5kVA

,

37.5kVA Medium Voltage Pad Mounted Transformer

,

Loop Feed Type Pad Mounted Transformer

Type:
Distribution Transformer, Power Transformer, Oil-filled Transformer
Frequency:
50Hz, 60Hz
Winding Material:
Aluminum
Phase:
Single Phase
Coil Structure:
TOROIDAL
Coil Number:
Multi-winding Coil
Input Voltage:
3kV, 6kV, 10kV, 15kV
Output Voltage:
400V , 208V, 200V, 415V, 127V, 11kV,, 110V, 220V, 380V, 440V, 480V,
Application:
Power Distribution System
Product Name:
Toroidal Transformer
Usage:
Power Electronic
Material:
Aluminum Winding
Transformer Type:
Single Phase Autotransformer
Name:
High Fequency Transformer
Feature:
High Efficiency
Feed Type:
Loop Feed
Transformer Type:
Pad Mounted, Compartmental-Type I
No Load Loss:
273W
Vector Group:
II6
Phase Configuration:
Single Phase
Ratings:
Complies With ANSI / IEEE #C57.12.25
Stamd:
ANSI IEEE
Bil:
95KV
Cooling:
KNAN / ONAN; Self-Cooled
Product Description
Medium Voltage Pad Mounted Transformer 37.5kVA Single Phase Low Losses Loop Feed Type
Product Specifications
Attribute Value
Type Distribution Transformer, Power Transformer, Oil-filled Transformer
Frequency 50Hz, 60Hz
Winding Material Aluminum
Phase Single Phase
Input Voltage 3kV - 400kV (Multiple Options)
Output Voltage 5V - 480V (Multiple Options)
Standards ANSI/IEEE C57.12.25, GB 20052-2024, IEC 60076
Cooling KNAN/ONAN; Self-Cooled
Product Overview
HENTG's Single Phase Pad Mounted Oil-Immersed Distribution Transformer (15kVA~500kVA) is designed for reliable, safe, and efficient power distribution in residential, commercial, and light industrial applications. Featuring high-quality silicon steel cores and aluminum windings, it delivers low losses, high efficiency, and long service life.
Key Applications
  • Residential Distribution (Backyard/Sidewalk Transformers)
  • Commercial & Light Industrial Buildings
  • Shopping Centers & Office Parks
  • Urban Utility Networks
  • Renewable Energy Projects (Solar Power)
Technical Specifications
Capacity (kVA) HV (V) LV (V) No-load Loss (W) Load Loss (W) Dimensions (mm) Efficiency (%)
15 2400-34500 110-690 60-150 330-1150 610×740×840 98.82
37.5 2400-34500 110-690 60-150 330-1150 610×740×840 98.95
50 2400-34500 110-690 60-150 330-1150 610×740×840 99.05
75 2400-34500 110-690 60-150 330-1150 610×740×840 99.11
Key Features
  • Versatile Design: Clamshell cabinet for easy access to connections with multiple protection and switching configurations
  • Safe Installation: Ground-mounted design with NEMA 3R protection level and safety interlocks
  • High Reliability: Long service life with fully enclosed design for protection against environmental factors
  • Low Noise: Suitable for noise-sensitive residential areas
  • Customizable: Modular structure allows for flexible configuration of shell, switches, and protection features
Our Manufacturing Process
Step 1: Design & Quotation
We respond within 1 hour with product recommendations and competitive quotations. Our technical team provides detailed drawings within 7 days after payment confirmation.
Step 2: Production & Quality Control
Strict material screening followed by production and comprehensive quality inspection. We provide QC reports and test documentation, including optional Factory Acceptance Tests.
Step 3: Installation & Support
Professional installation guidance with optional on-site support. All products come with a minimum 2-year warranty and ongoing technical assistance.
Frequently Asked Questions
Who are we?
HENTG POWER is a professional designer and manufacturer of power system solutions since 2011, with 100,000 square meter production facility specializing in reliable, high-performance transformers for global markets.
How do we guarantee quality?
Pre-production samples, final inspections before shipment, and comprehensive QC/test reports. We manufacture oil-type and dry-type transformers up to 500KV/480MVA, complying with ANSI/IEEE/DOE2016/CSA/IEC60076 standards.
Why choose us?
30+ senior engineers provide 24/7 technical support with 30-minute response time. Custom engineering capabilities with fast 7-day drawing confirmation.
Product Range
Oil-immersed transformers • Dry-type power transformers • Amorphous alloy transformers • Prefabricated substations • Modular substations • New energy system transformers • Custom-engineered solutions
Tags:

single phase pad mounted distribution transformers

1 phase pad mounted transformer

oil filled pad mounted transformer
