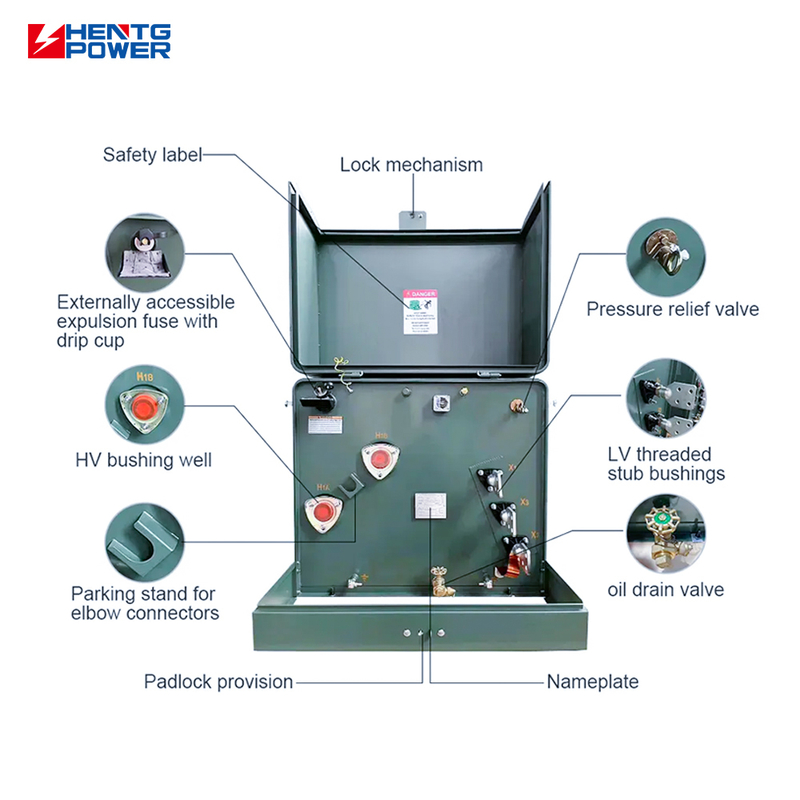

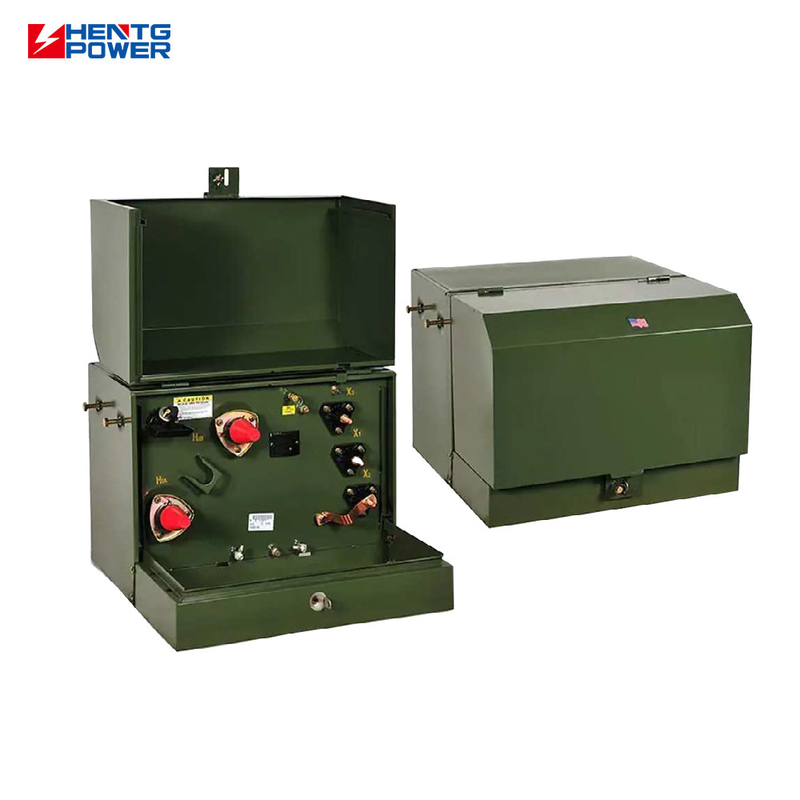

Electrical Oil Pad Mounted Single Phase Transformer 100 Kva Step Down Transformers HV
Electrical Oil Pad Mounted Single Phase Transformer 100 Kva Step Down Transformers HV Product Overview High-performance single phase pad mounted transformer designed for efficient power distribution with customizable voltage ratings and robust construction. Key Specifications Attribute Value Type Distribution transformer Material 100% Copper Frequency 50Hz, 60Hz Phase Single Phase Input Voltage 3kV, 6kV, 10kV, 15kV, Output Voltage 11kV, 12V, 24V, 110V, 220V, 380V, 440V, 480V
Pad Mounted Single Phase Transformer 100 Kva
,Electrical Oil Pad Mounted Transformer
,Pad Mounted Step Down Transformers
High-performance single phase pad mounted transformer designed for efficient power distribution with customizable voltage ratings and robust construction.
| Attribute | Value |
|---|---|
| Type | Distribution transformer |
| Material | 100% Copper |
| Frequency | 50Hz, 60Hz |
| Phase | Single Phase |
| Input Voltage | 3kV, 6kV, 10kV, 15kV, |
| Output Voltage | 11kV, 12V, 24V, 110V, 220V, 380V, 440V, 480V |
| Rated Capacity | 100KVA |
| Cooling Method | ONAN ONAF OFAF |
| Efficiency | Up to 98% |
- Environmentally Safe & Energy-Efficient: Uses biodegradable oil and optimized for low loss and high efficiency
- Customizable Ratings & Features: Primary voltage, secondary voltage, tapping range, and terminal type can be customized
- Industry Compliance: Fully compliant with ANSI, UL, IEEE, and other utility standards
- Environmental Ready: Designed for temperature ranges of -40°C to +50°C, IP54 or better
| Capacity (KVA) | HV | Tapping range | LV | No-load loss | Load loss | Efficiency |
|---|---|---|---|---|---|---|
| 15 | 2400-34500 | ±2X2.5% | 110-690 | 60-150 | 330-1150 | 98.82% |
| 100 | 99.25% |
We respond within 1 hour with suitable transformer recommendations, quotations, and payment terms. Our professional team confirms all drawing details within 7 days after payment, including technical data, weight, and parts list.
After design approval, we prepare stock, produce, and conduct rigorous quality inspections. We provide QC reports, test reports, and accept Factory Acceptance Tests (FAT).
Professional installation guidance and on-site support available. All products come with a minimum 2-year warranty.
- 30+ senior engineers providing 24/7 support with 30-minute response time

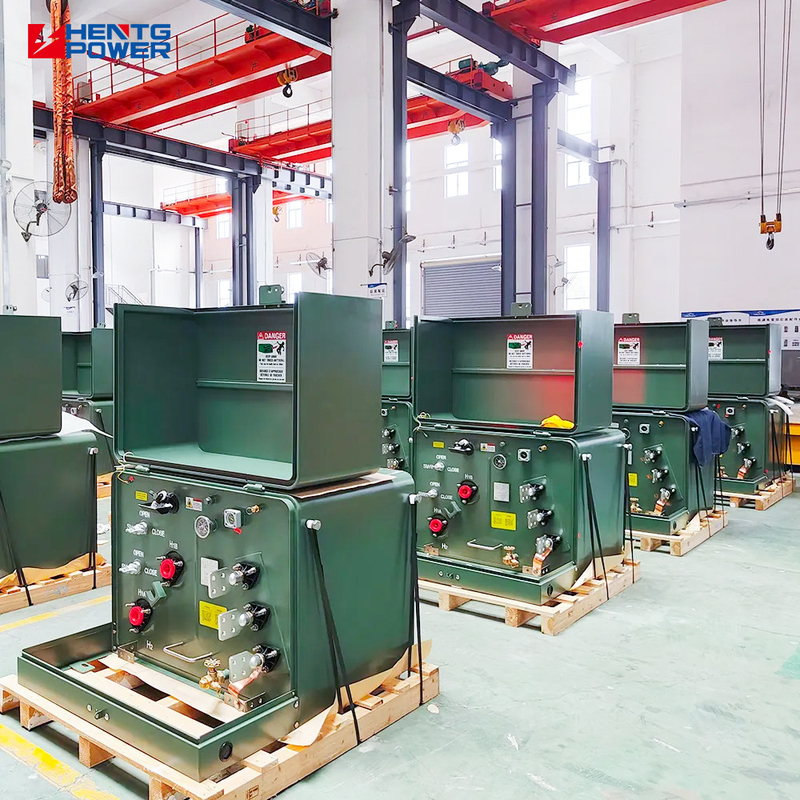

- 100,000m² factory with 250 workers and 30+ engineers
- 4 production lines with 10,000+ sets annual capacity
- 100% OQC testing with 25 detection parameters
- 15 years power transformer design and production experience
- Compliance with GB 20052-2024/ANSI/IEEE/DOE2016/CSA/IEC60076 standards
HENTG POWER is a professional designer, manufacturer and installer of power system solutions founded in 2011, specializing in reliable, high-performance solutions for global power systems.
We conduct pre-production samples, final inspections before shipment, and provide QC & test reports. We accept FAT and offer a 2+ year warranty on all products.
We have a professional technical team with 30+ senior engineers offering 24/7 support. Our independent drawing team confirms all specifications within 7 days.
We accept OEM orders and negotiate business payment terms to meet your specific requirements.
-
