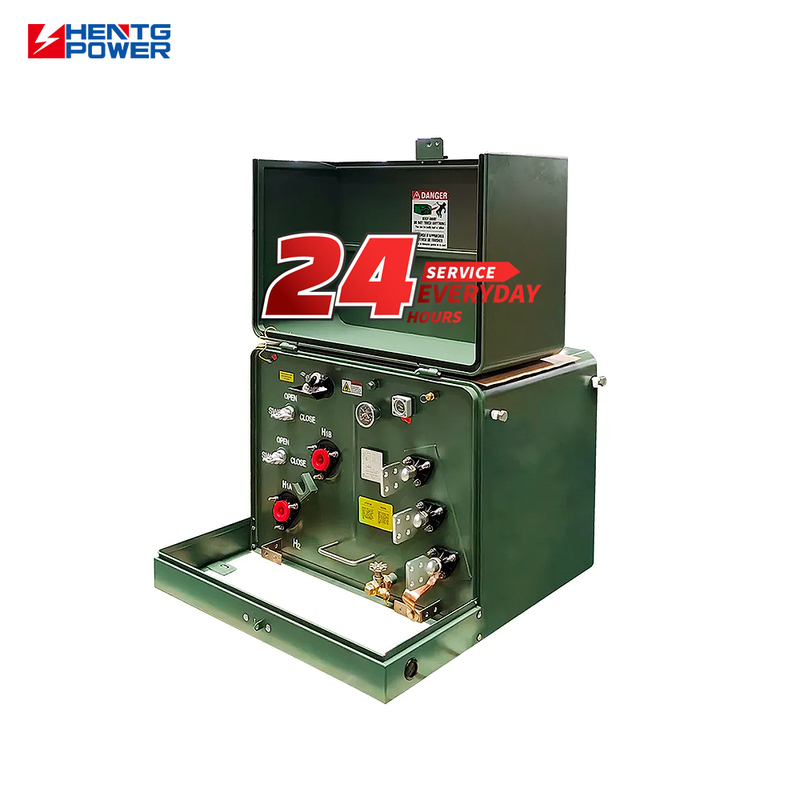

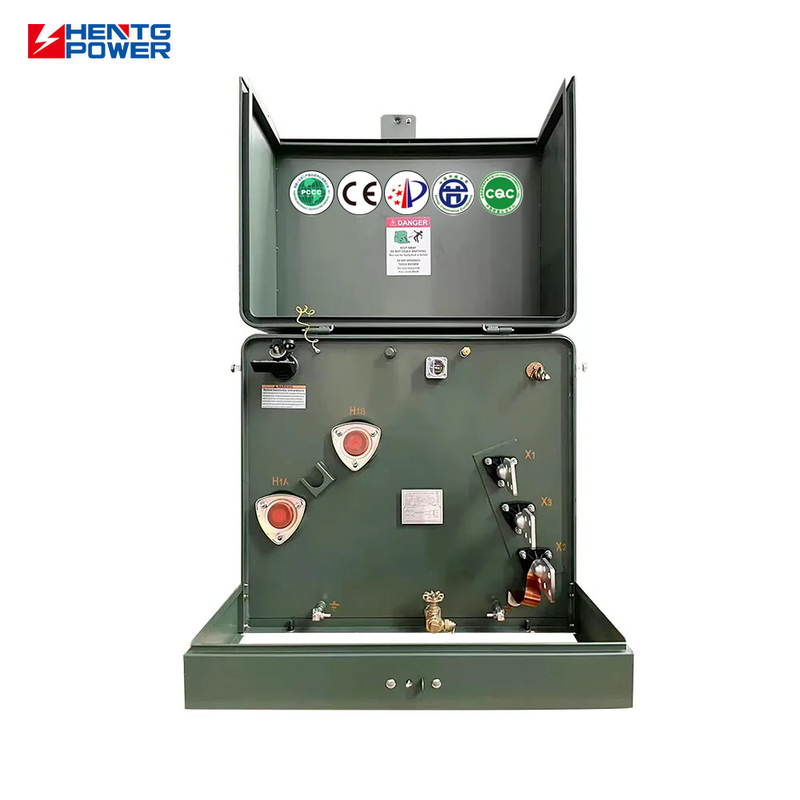

Step Down Oil Immersed Transformer Oil Type Distribution Transformer 100kva 1 Phase

Step Down Oil Immersed Transformer Oil Type Distribution Transformer 100kva 1 Phase

Step Down Oil Immersed Transformer

1 Phase Oil Type Distribution Transformer

Place of Origin:

Jiangsu, China

Brand Name:

HENTG Power

Certification:

CE

Model Number:

ZGS

Chat Now
Request A Quote
Step Down Oil Immersed Transformer Oil Type Distribution Transformer 100kva 1 Phase
Step Down Oil Immersed Transformer Oil Type Distribution Transformer 100kva 1 Phase Step Down Oil Immersed Transformer Oil Type Distribution Transformer 100kva 1 Phase Step Down Oil Immersed Transformer Oil Type Distribution Transformer 100kva 1 Phase
Product Details
Type:
Distribution Transformer, Oil-IMMERSED Transformer
Material:
Copper, 100% Copper
Frequency:
50Hz, 60Hz
Shape:
Rectangle
Application:
Power
Phase:
Single Phase
Coil Structure:
Wound Coil
Coil Number:
Dual-winding Coil
Input Voltage:
3kV, 6kV, 10kV, 15kV, 35kV, 69kV, 110kV, 115kV, 132kV, 220kV, 400kV
Output Voltage:
11kV, 12V , 24V, 110V, 220V, 380V, 440V, 480V
Rated Capacity:
100~300KVA
Cooling Method:
ONAN ONAF OFAF
Capacity:
13200~24940HV
Rated Frequency:
50Hz-60 Hz
Product Name:
Single Phase Pad Mounted Transformer
Warranty:
3 Years
Highlight:

Step Down Oil Immersed Transformer

,

1 Phase Oil Type Distribution Transformer

Payment & Shipping Terms
Minimum Order Quantity
2 sets
Price
CN¥4490/units
RELATED PRODUCTS
Good price 75kVA 167 Kva Single Phase Distribution Transformer Pad Mounted IEEE Standard online Video

75kVA 167 Kva Single Phase Distribution Transformer Pad Mounted IEEE Standard

Chat Now
Good price Step Down Single Phase Transformer 167kVA 250kVA 500kVA Pad Mounted IP55 Protection online Video

Step Down Single Phase Transformer 167kVA 250kVA 500kVA Pad Mounted IP55 Protection

Chat Now
Good price High Frequency Pad Mounted Transformer 50 Kva Silicon Core Electric Power Transformer online Video

High Frequency Pad Mounted Transformer 50 Kva Silicon Core Electric Power Transformer

Chat Now
Good price 75kVA 100kVA 167kVA Transformer Single Phase Pad Installation Transformers Pad Mounted Transformer online Video

75kVA 100kVA 167kVA Transformer Single Phase Pad Installation Transformers Pad Mounted Transformer

Chat Now
Contact Us
+86 15074989773
info@hentgpower.com
Chat Now
Product Description
Step Down Oil Immersed Transformer - 100kVA Single Phase
Product Specifications
Attribute Value
Type Distribution transformer, Oil-Immersed Transformer
Material Copper, 100% Copper
Frequency 50Hz, 60Hz
Phase Single Phase
Input Voltage 3kV, 6kV, 10kV, 15kV, 35kV, 69kV, 110kV, 115kV, 132kV, 220kV, 400kV
Output Voltage 11kV, 12V, 24V, 110V, 220V, 380V, 440V, 480V
Rated Capacity 100~300KVA
Cooling Method ONAN ONAF OFAF
Warranty 3 Years
Key Features
  • Fully Sealed Oil-Immersed Construction - Designed for underground and above-ground distribution with complete enclosure protection
  • Pad-Mounted Cabinet Design - Tamper-proof lockable cabinet with separate HV and LV compartments for safety
  • Corrosion-Resistant Outdoor Enclosure - Powder-coated tank with stainless hardware for harsh environments
  • Compact, Space-Saving Structure - Designed to fit in limited spaces like urban grids, residential areas, and commercial complexes
Optional Features
Bayonet-style fuse protection, Pressure relief valve & liquid level gauge, Surge arrester mounting brackets, Stainless steel cabinet or marine paint, Pad mounting base or lifting lugs
Technical Specifications
Capacity (KVA) HV Tapping Range LV No-load Loss Load Loss Efficiency
15 2400-34500 ±2X2.5% 110-690 60-150 330-1150 98.82-99.49%
Ordering Process
Step 1: Inquiry & Quotation
We respond within 1 hour with suitable transformer recommendations, competitive quotations, and payment terms. Our technical team confirms all drawing details within 7 days after payment.
Step 2: Production & Quality Control
After finalizing production drawings, we prepare stock, manufacture, and conduct rigorous quality inspections. We provide QC and test reports, with optional Factory Acceptance Test (FAT).
Step 3: Installation & Warranty
Our professional team provides installation guidance or on-site support. All products come with a 3-year warranty for your peace of mind.
Product Advantages
  • Single-phase pad-mounted transformer features a clamshell cabinet for easy access to connections.
  • Versatile design accommodates various protection and switching configurations to meet diverse distribution system requirements.
  • Ideal for ground installation in open areas with NEMA 3R protection level.
  • High reliability with long service life, superior safety performance, low noise operation, and convenient modular maintenance.
About HENTG POWER
Who are we?
Professional designer, manufacturer and installer of power system solutions since 2011, with 100,000 square meter facility specializing in reliable, high-performance solutions for global power systems.
How do we guarantee quality?
Pre-production samples, final inspections, QC & test reports, and FAT available. We manufacture oil and dry type transformers up to 500KV 480MVA, meeting ANSI/IEEE/DOE2016/CSA/IEC60076 standards.
Why choose us?
Professional drawing and technical teams with 30+ senior engineers offering 24/7 support with 30-minute response time. Quick 7-day drawing confirmation process.
What services do we provide?
OEM services available with flexible payment terms. Comprehensive support from design to installation.
