Oil Immersed Distribution Transformer Step Up 100kva Transformer Auto 333kva Copper Coil Pad Electric Transformer
Oil Immersed Distribution Transformer Step Up 100kVA Transformer Auto 333kVA Copper Coil Pad Electric Transformer Product Specifications Attribute Value Type Distribution Transformer, Oil-Immersed Transformer Material Copper, Aluminum, 100% Copper Frequency 50Hz, 60Hz Winding Material Copper Application Power Phase Single Phase Coil Structure Wound Coil Coil Number Dual-winding coil Input Voltage 3kV, 6kV, 10kV, 15kV, 35kV, 69kV, 110kV, 115kV, 132kV, 220kV, 400kV Output
100kva distribution transformer oil type
,100kva oil immersed distribution transformer
,333kva distribution transformer oil type
| Attribute | Value |
|---|---|
| Type | Distribution Transformer, Oil-Immersed Transformer |
| Material | Copper, Aluminum, 100% Copper |
| Frequency | 50Hz, 60Hz |
| Winding Material | Copper |
| Application | Power |
| Phase | Single Phase |
| Coil Structure | Wound Coil |
| Coil Number | Dual-winding coil |
| Input Voltage | 3kV, 6kV, 10kV, 15kV, 35kV, 69kV, 110kV, 115kV, 132kV, 220kV, 400kV |
| Output Voltage | 11kV, 12V, 24V, 110V, 220V, 380V, 440V, 480V |
| Rated Capacity | 100~333KVA |
| Cooling Method | ONAN ONAF OFAF |
| Capacity | 13200~24940HV |
| Vector Group | Dyn1/Yyn0 |
| Rated Frequency | 50Hz-60 Hz |
| Product Name | Single Phase Pad Mounted Transformer |
| Warranty | 3 Years |

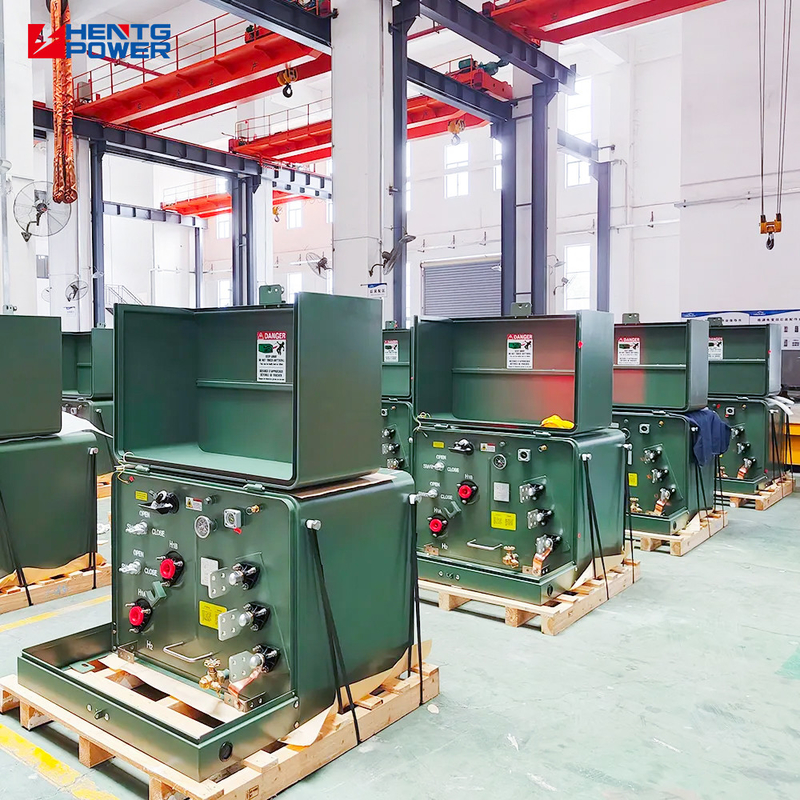

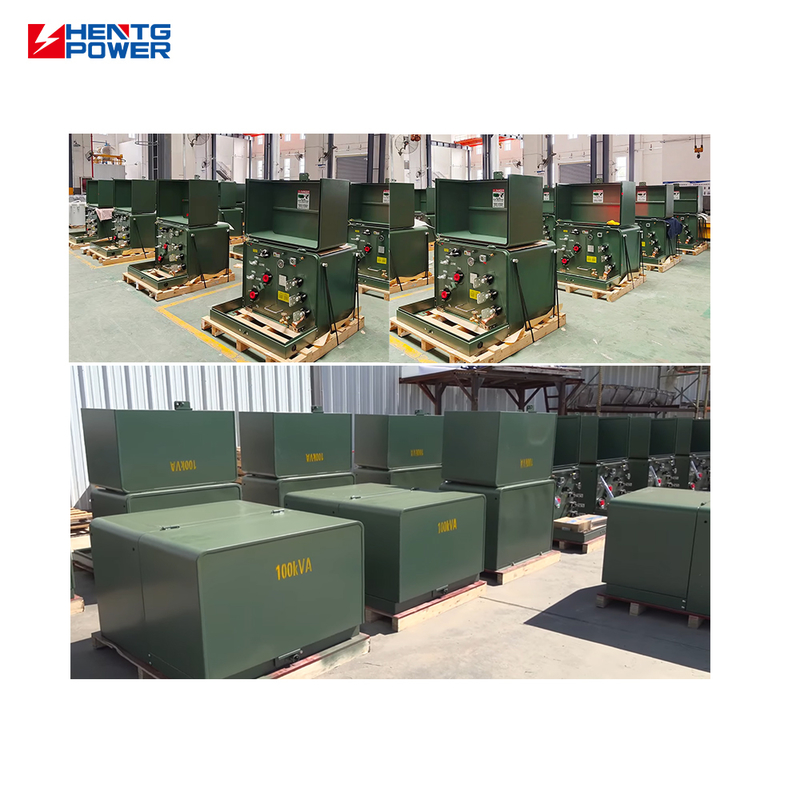

HENTG's Single-phase pad-mounted transformer features a clamshell cabinet for easy opening and uninhibited access to connections. The versatile design allows for various protection and switching configurations, providing multi-service options while meeting the reliability and safety requirements of any distribution system.
- Quick and Easy Installation: Factory-assembled and tested, reducing on-site installation time and ensuring quicker deployment.
- Safe and Secure: Tamper-proof design with dead-front construction to ensure safety in residential and commercial installations.
- Space-Efficient for Urban Installations: The pad-mounted design is ideal for limited space environments, ensuring effective space utilization.
- Low Maintenance, Long Life: Hermetically sealed tank with minimal maintenance over a 20-30 year lifespan.
| Capacity (KVA) | HV | Tapping Range | LV | No-load Loss | Load Loss | Dimension (mm) | Efficiency |
|---|---|---|---|---|---|---|---|
| 15 | 2400-34500 | ±2X2.5% | 110-690 | 60-150 | 330-1150 | 610-740 x 740-960 x 840 | 98.82% |
| 25 | 98.95% | ||||||
| 37.5 | 99.05% | ||||||
| 50 | 99.11% | ||||||
| 75 | 99.19% | ||||||
| 100 | 99.25% | ||||||
| 167 | 99.33% | ||||||
| 250 | 99.39% | ||||||
| 333 | 99.43% | ||||||
| 500 | 99.49% |
We respond to inquiries within 1 hour and recommend suitable transformers according to your needs. We provide reasonable quotations and payment terms. Our professional team confirms all drawing contents with you within 7 days after payment.
After finalizing production drawings, we prepare stock, manufacture, and conduct quality inspections before shipment. We provide QC reports and test reports for quality assurance.
Our professional team provides installation guidance and on-site support. We offer more than 2 years of warranty service.
- Single-phase pad-mounted transformer with clamshell cabinet for easy access to connections
- Versatile design allows for various protection and switching configurations
- Ground installation suitable for residential areas and commercial parks
- Fully sealed design with NEMA 3R protection level
- Equipped with grounding ring, anti-misoperation interlock, and overcurrent protector
- High-low voltage compartment separation design ensures operational safety
- Long service life with better reliability than traditional column-mounted transformers
- Low noise operation suitable for noise-sensitive areas
- Modular structure for quick maintenance
- Customizable shell, switch, and protection functions
HENTG POWER is a professional designer, manufacturer and installer of power system solutions worldwide, founded in 2011. We specialize in reliable, high-performance solutions for global power systems across 100,000 square meters of facilities.
We conduct pre-production samples before mass production and final inspections before shipment, providing QC & test reports. We accept Factory Acceptance Tests (FAT) and manufacture to ANSI/IEEE/DOE2016/CSA/IEC60076 standards.
We have professional drawing and technical teams that confirm all drawing contents within 7 days. Our team of 30+ senior engineers offers 24-hour online service with responses within 30 minutes.
We accept OEM orders and negotiate business payment terms to meet customer requirements.
-
