75kVA 167 Kva Single Phase Distribution Transformer Pad Mounted IEEE Standard
75kVA 167 Kva Single Phase Distribution Transformer Pad Mounted IEEE Standard Product Specifications Attribute Value Phase Single Phase Application Power Transformer Output Voltage 110V, 220V, 380V, 400V, 440V, 480V Input Voltage 11kV, 10.5kV, 3kV, 6.6kV, 6.3kV, 12.47kV, 6kV Type Pad Mounted Transformer Standard DOE/IEC60076/IEEE Vector Group Dyn11/Yyn0/Yd11/YNd11 MOQ 1 Set Usage Outdoor Power Line Operation High Voltage 11kv 10kv 6.3kv 6kv Low Voltage 120-240/240-480/347/600
14400v Single Phase Distribution Transformer
,IEEE Standard Single Phase Distribution Transformer
| Attribute | Value |
|---|---|
| Phase | Single Phase |
| Application | Power Transformer |
| Output Voltage | 110V, 220V, 380V, 400V, 440V, 480V |
| Input Voltage | 11kV, 10.5kV, 3kV, 6.6kV, 6.3kV, 12.47kV, 6kV |
| Type | Pad Mounted Transformer |
| Standard | DOE/IEC60076/IEEE |
| Vector Group | Dyn11/Yyn0/Yd11/YNd11 |
| MOQ | 1 Set |
| Usage | Outdoor Power Line Operation |
| High Voltage | 11kv 10kv 6.3kv 6kv |
| Low Voltage | 120-240/240-480/347/600 |
| Customized | Accept |

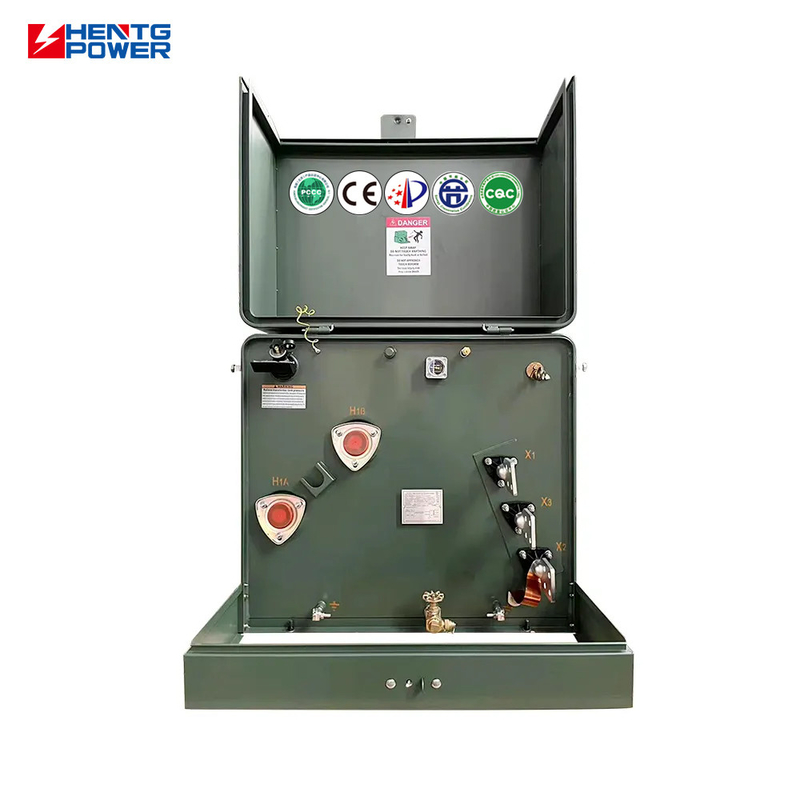

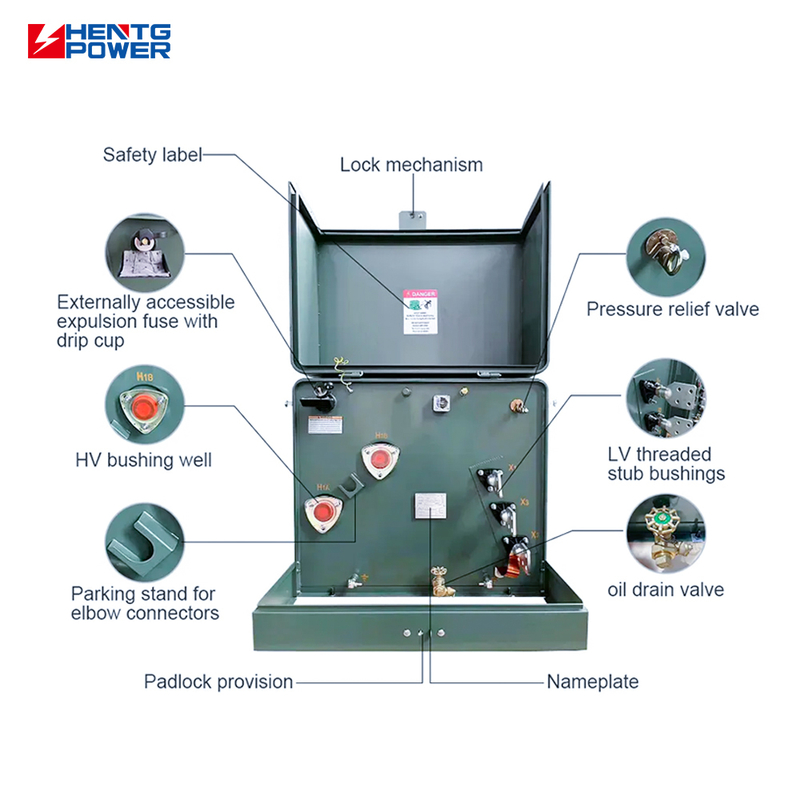

HENTG's Single Phase Pad Mounted Oil-Immersed Distribution Transformer (15kVA~500kVA) is designed for reliable, safe, and efficient power distribution in residential, commercial, and light industrial applications. Featuring a compact, tamper-proof, and weather-resistant pad-mounted design, this transformer ensures minimal maintenance and excellent performance in outdoor environments.
- Customizable Ratings & Terminals: Primary voltage, secondary voltage, bushing type, and tank finish can all be customized.
- Available in Loop or Radial Feed: Loop feed models support networked underground distribution.
- Environmental Ready: Designed for temperature ranges of -40°C to +50°C, IP54 or better.
- Industry Compliance: Fully compliant with ANSI, UL, IEEE, and other utility standards.
With high-quality silicon steel cores and copper or aluminum windings, it delivers low losses, high efficiency, and long service life. Ideal for use in underground or ground-level power systems.
| Capacity (KVA) | HV | Tapping range | LV | No-load loss | Load loss | Dimension(mm) | Efficiency |
|---|---|---|---|---|---|---|---|
| 15 | 2400-34500 | ±2X2.5% | 110-690 | 60-150 | 330-1150 | 610-740 | 98.82% |
| 25 | 98.95% | ||||||
| 37.5 | 99.05% | ||||||
| 50 | 99.11% | ||||||
| 75 | 99.19% | ||||||
| 100 | 99.25% | ||||||
| 167 | 99.33% | ||||||
| 250 | 99.39% | ||||||
| 333 | 99.43% | ||||||
| 500 | 99.49% |
We will respond to your inquiry within 1 hour and recommend suitable transformer according to your needs. We will provide you with reasonable quotations and payment terms. Our professional drawing team will confirm all technical details with you within 7 days after payment.
After finalizing the production drawing, we prepare stock, manufacture, and conduct rigorous quality inspection before shipment. We provide QC reports and test reports for all products, with optional Factory Acceptance Test (FAT).
We provide professional installation guidance and on-site support. All products come with more than 2 years warranty service.

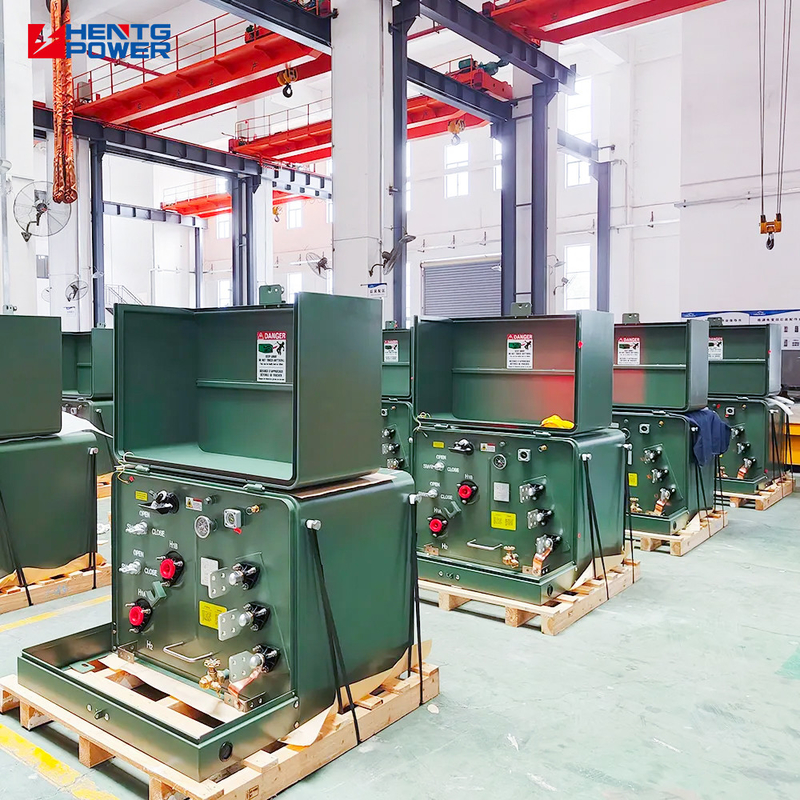

- 100,000m² factory with 250 workers and 30+ senior engineers
- 4 production lines with 10,000+ sets annual production capacity
- 100% OQC testing with 25 detection contents
- 15 years experience in power transformer design and production
- Products comply with GB 20052-2024/ANSI/IEEE/DOE2016/CSA/IEC60076 standards
- Global on-site technical support available
HENTG POWER is a professional designer, manufacturer and installer of power system solutions founded in 2011, occupying 100,000 square meters. We specialize in reliable, high-performance solutions for global power systems.
We always provide pre-production samples before mass production and conduct final inspection before shipment with QC & test reports. We accept Factory Acceptance Tests (FAT) and provide over 2 years warranty service.
We have professional drawing and technical teams that can confirm all drawing contents within 7 days. Our 30+ senior engineers offer 24-hour online service with response within 30 minutes.
We accept OEM orders and offer flexible payment terms. Our services include custom design, manufacturing, testing, installation support, and long-term maintenance.
-
