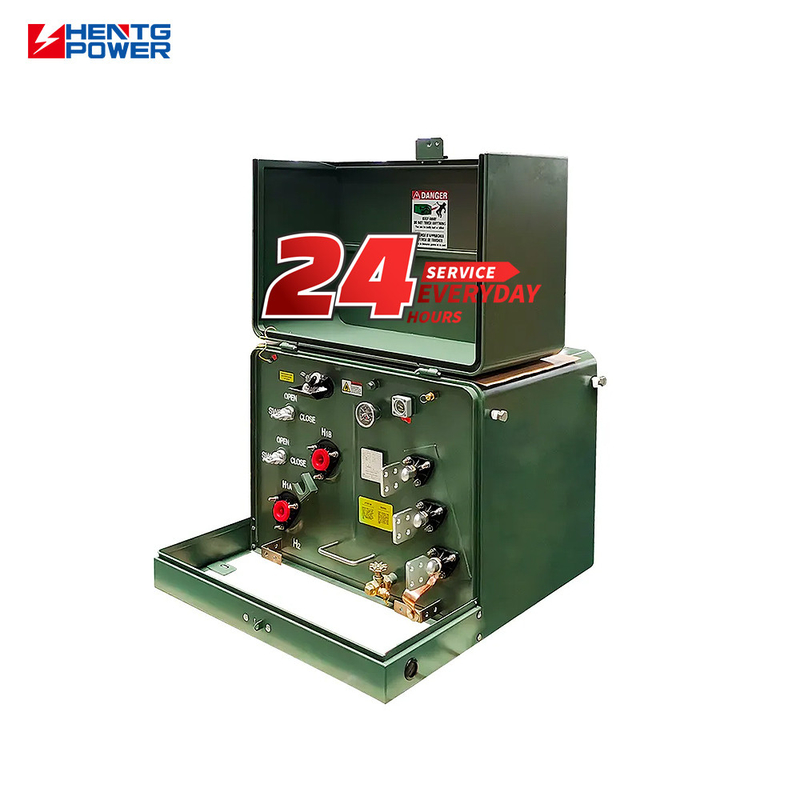

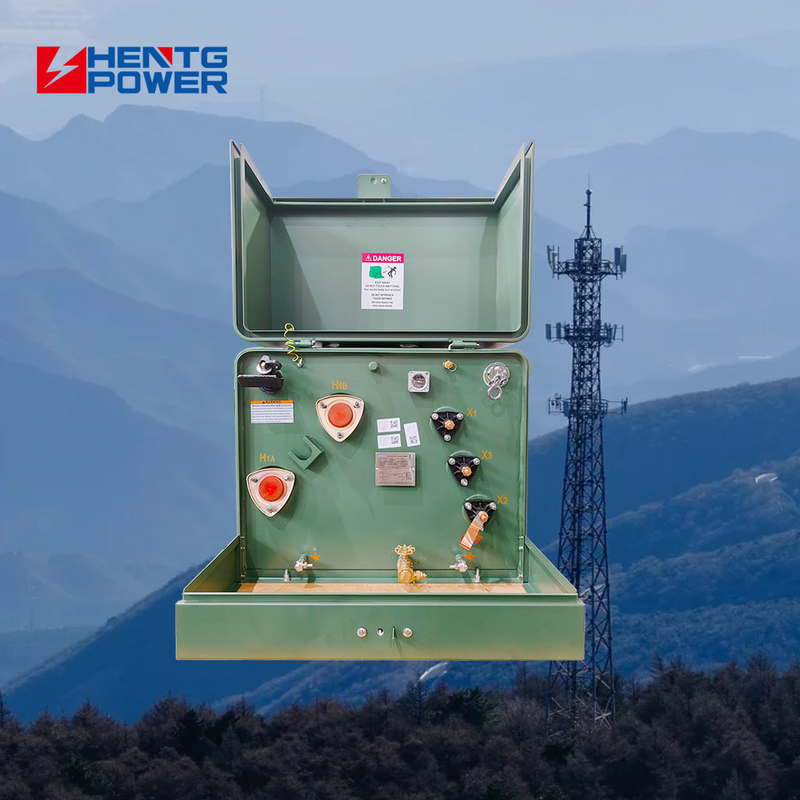

Single Phase Pad Mounted Power Transformer Oil Type 15kVA 25kVA 50kVA 100kVA OEM
Single Phase Pad Mounted Power Transformer Oil Type 15kVA-100kVA Product Specifications Attribute Value Material Aluminum, Copper, Copper Winding Frequency 60Hz, 50Hz Shape ROUND Winding Material Aluminum Phase Single Phase Coil Structure TOROIDAL Coil Number Dual-winding coil Input Voltage 180V, 115V, 3kV, 10kV, 6kV, 15kV, 35kV, 69kV, 100V Output Voltage 400V, 208V, 200V, 415V, 9V, 127V, 5V Type Oil-filled Transformer Application Power Distribution System Key Features Safe
Power Transformer Oil Type 15kVA
,Pad Mounted Power Transformer Oil Type
,OEM Pad Mounted Power Transformer
| Attribute | Value |
|---|---|
| Material | Aluminum, Copper, Copper Winding |
| Frequency | 60Hz, 50Hz |
| Shape | ROUND |
| Winding Material | Aluminum |
| Phase | Single Phase |
| Coil Structure | TOROIDAL |
| Coil Number | Dual-winding coil |
| Input Voltage | 180V, 115V, 3kV, 10kV, 6kV, 15kV, 35kV, 69kV, 100V |
| Output Voltage | 400V, 208V, 200V, 415V, 9V, 127V, 5V |
| Type | Oil-filled Transformer |
| Application | Power Distribution System |
- Safe and Secure: Tamper-proof design with dead-front construction ensures safety in residential and commercial installations.
- Compact Design: Space-saving structure fits in limited spaces like urban grids, residential areas, and commercial complexes.
- Durable Construction: Powder-coated steel tank and stainless-steel hardware prevent corrosion in harsh environments.
- Easy Installation: Factory-assembled and tested, reducing on-site installation time for quicker deployment.
- Bayonet-style fuse protection
- Pressure relief valve & liquid level gauge
- Surge arrester mounting brackets
- Stainless steel cabinet or marine paint
- Pad mounting base or lifting lugs
| Capacity (KVA) | HV | Tapping range | LV | No-load loss | Load loss | Dimension(mm) | Efficiency |
|---|---|---|---|---|---|---|---|
| 15 | 2400-34500 | ±2X2.5% | 110-690 | 60-150 | 330-1150 | 610-740 | 98.82-99.49 |
| 25 | 2400-34500 | ±2X2.5% | 110-690 | 60-150 | 330-1150 | 610-740 | 98.95 |
| 37.5 | 2400-34500 | ±2X2.5% | 110-690 | 60-150 | 330-1150 | 610-740 | 99.05 |
| 50 | 2400-34500 | ±2X2.5% | 110-690 | 60-150 | 330-1150 | 610-740 | 99.11 |
| 75 | 2400-34500 | ±2X2.5% | 110-690 | 60-150 | 330-1150 | 610-740 | 99.19 |
| 100 | 2400-34500 | ±2X2.5% | 110-690 | 60-150 | 330-1150 | 610-740 | 99.25 |
Step 1: We respond to inquiries within 1 hour, recommend suitable transformers, and provide quotations. Our technical team confirms all drawing details within 7 days after payment, including technical data, weight, and parts list.
Step 2: After design approval, we prepare stock, produce, and conduct quality inspections. We provide QC and test reports, with options for Factory Acceptance Testing (FAT).
Step 3: We offer professional installation guidance, on-site support, and provide more than 2 years of warranty service.
- 100,000m² factory with 250 workers and 30+ engineers
- 4 production lines with 10,000+ sets annual capacity
- 100% OQC testing with 25 detection points
- 15 years power transformer design and production experience
- Compliance with GB 20052-2024/ANSI/IEEE/DOE2016/CSA/IEC60076 standards
- Cross-industry power transformer solutions
- Global on-site technical support
HENTG POWER is a professional designer, manufacturer and installer of power system solutions founded in 2011, occupying 100,000 square meters. We specialize in reliable, high-performance solutions for global power systems.
We conduct pre-production sampling, final inspections before shipment, and provide QC & test reports. We accept Factory Acceptance Testing (FAT) and manufacture transformers up to 500KV 480MVA capacity, complying with international standards. All products come with a 2+ year warranty.
We have professional drawing and technical teams that confirm all drawing details within 7 days. Our 30+ senior engineers provide 24/7 online support with 30-minute response times.
We accept OEM orders and negotiate business payment terms to meet customer requirements.
-
