1 Phase Pad Mounted Distribution Transformer Variable Step Down 100kVA 250KVA 333KVA
1 Phase Pad Mounted Distribution Transformer (100kVA, 250kVA, 333kVA) Product Overview HENTG's single-phase pad-mounted transformer features a clamshell cabinet for easy access to connections. The versatile design allows for various protection and switching configurations, meeting the reliability and safety requirements of modern distribution systems. Key Specifications Attribute Value Type Power transformer, distribution transformer, Oil-filled Transformer Frequency 50Hz,
Variable Step Down Distribution Transformer
,1 Phase Pad Mounted Distribution Transformer
,333KVA Pad Mounted Distribution Transformer

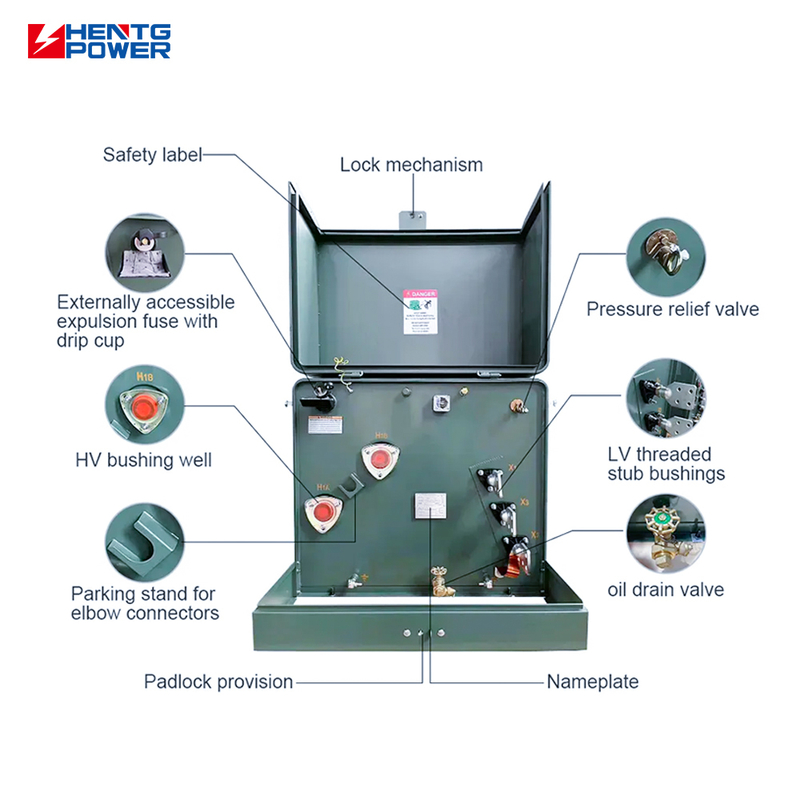

HENTG's single-phase pad-mounted transformer features a clamshell cabinet for easy access to connections. The versatile design allows for various protection and switching configurations, meeting the reliability and safety requirements of modern distribution systems.
| Attribute | Value |
|---|---|
| Type | Power transformer, distribution transformer, Oil-filled Transformer |
| Frequency | 50Hz, 60Hz |
| Phase | Single Phase |
| Winding Material | Copper, Aluminum |
| Input Voltage | 380V, 180V, 115V, 3kV, 6kV, 10kV, 15kV, 35kV, 69kV |
| Output Voltage | 400V, 208V, 200V, 415V, 127V, 11kV, 24V, 12V |
| Application | Power Distribution System |
- Environmental Ready: Operates in -40°C to +50°C range with IP54 or better protection
- Customizable: Primary/secondary voltage, tapping range, and terminal type can be customized
- Eco-Friendly: Uses biodegradable oil and optimized for low loss/high efficiency
| Capacity (kVA) | HV | Tapping Range | LV | No-load Loss | Load Loss | Efficiency |
|---|---|---|---|---|---|---|
| 15 | 2400-34500 | ±2X2.5% | 110-690 | 60-150 | 330-1150 | 98.82% |
Step 1: Inquiry & Design
We respond within 1 hour with recommendations and quotations. Technical drawings are confirmed within 7 days after payment.
Step 2: Production & QC
Rigorous quality inspections with QC/test reports. Factory Acceptance Tests (FAT) available.
Step 3: Installation & Support
Professional installation guidance and on-site support with 2+ years warranty.
- 30+ senior engineers with 30-minute response time

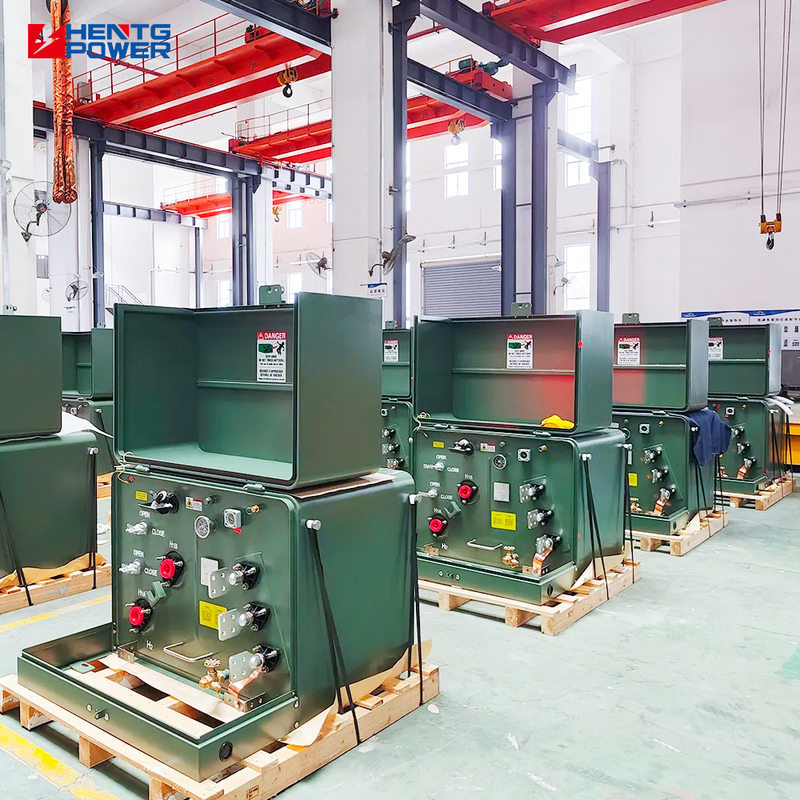

- 100,000m² factory with 250 workers and 30+ engineers
- 10,000+ sets annual production capacity
- 100% quality testing with 25 detection points
- 15 years transformer design/production experience
- Compliance with GB/ANSI/IEEE/CSA/IEC standards
- Global technical support
Who are we?
HENTG POWER is a professional designer and manufacturer of power system solutions since 2011, specializing in reliable, high-performance transformers.
Quality Assurance?
Pre-production samples, final inspections, QC reports, FAT available, with 2+ years warranty.
Why choose us?
Professional technical teams with 24/7 support and rapid response times.
Services offered?
OEM orders available with flexible payment terms to meet specific requirements.
-
