Variable Voltage Single Phase Pole Mounted Transformer Oil Immersed Mv Hv Transformer

Variable Voltage Single Phase Pole Mounted Transformer Oil Immersed Mv Hv Transformer

Pole Mounted Transformer Variable Voltage

Mv Hv Single Phase Pole Mounted Transformer

Oil Immersed Mv Hv Transformer

Place of Origin:

Jiangsu, China

Brand Name:

HENTG Power

Certification:

CE

Model Number:

D11

Chat Now
Request A Quote
Variable Voltage Single Phase Pole Mounted Transformer Oil Immersed Mv Hv Transformer
Variable Voltage Single Phase Pole Mounted Transformer Oil Immersed Mv Hv Transformer Variable Voltage Single Phase Pole Mounted Transformer Oil Immersed Mv Hv Transformer Variable Voltage Single Phase Pole Mounted Transformer Oil Immersed Mv Hv Transformer
Product Details
Type:
Distribution Transformer, Oil-IMMERSED Transformer
Material:
Aluminum, Copper
Frequency:
50Hz, 60Hz
Shape:
ROUND
Winding Material:
Copper
Application:
Power
Phase:
Single Phase
Coil Structure:
Circular Coil
Coil Number:
Dual-winding Coil
Input Voltage:
3kV, 6kV, 10kV, 15kV, 35kV, 100V, 69kV, 110kV, 115kV, 132kV, 220kV, 400kV
Output Voltage:
400V , 208V, 200V, 415V, 127V, 11kV, 380V, 440V, 480V
Product Name:
Oil Distribution Transformer
Application:
Power Distribution System
Standard:
ANSI
Usage:
New Energy
Color:
White
Warranty:
3 Years
Vector Group:
II0/II6
Core Material:
Copper
Efficiency:
98%
Temperature Rise:
55°C
Insulation Class:
Class A
Rated Power:
1-10 KVA
Impedance:
2-4%
Protection Level:
IP23
Mounting Type:
Pole Mounted
Secondary Voltage:
230/400 V
Primary Voltage:
11 KV
Cooling Method:
ONAN
Highlight:

Pole Mounted Transformer Variable Voltage

,

Mv Hv Single Phase Pole Mounted Transformer

,

Oil Immersed Mv Hv Transformer

Payment & Shipping Terms
Minimum Order Quantity
2 sets
Price
CN¥15,277.77-38,112.50/units
RELATED PRODUCTS
Good price Variable Voltage Oil Immersed Distribution Transformer Mv Hv Pole Mounted Class H Insulation online Video

Variable Voltage Oil Immersed Distribution Transformer Mv Hv Pole Mounted Class H Insulation

Chat Now
Good price 1 Phase Oil Immersed Pole Mounted Transformer 167KVA 250KVA 333KVA High Efficiency online Video

1 Phase Oil Immersed Pole Mounted Transformer 167KVA 250KVA 333KVA High Efficiency

Chat Now
Good price Single Phase Pole Mounted Oil Type Transformer 25/34.5KV 240/480V 250KVA online Video

Single Phase Pole Mounted Oil Type Transformer 25/34.5KV 240/480V 250KVA

Chat Now
Good price Step Down Pole Mounted Single Phase Transformer Dual Voltage 15KVA To 167KVA online Video

Step Down Pole Mounted Single Phase Transformer Dual Voltage 15KVA To 167KVA

Chat Now
Contact Us
+86 15074989773
info@hentgpower.com
Chat Now
Product Description
HENTG POWER Variable Voltage Oil Immersed Transformer
25kVA Single Phase Pole Mounted Distribution Transformer
HENTG POWER ─ Global Power System Solutions

Founded in 2011 | 100,000㎡ production base | One-stop service for design, manufacturing and installation

Product Attributes
Attribute Value
Type Distribution Transformer, Oil-Immersed Transformer
Material Aluminum, Copper
Frequency 50Hz, 60Hz
Winding Material Copper
Application Power Distribution System
Phase Single Phase
Standard ANSI
Warranty 3 Years
Efficiency 98%
Cooling Method ONAN
Technical Specifications
Rated Capacity (kVA) HV Tapping Range LV No-load Loss (W) Load Loss (W) Dimension (mm) Efficiency
15 2400-34500V ±2*2.5% 110-690V 60-150 330-1150 520-1135 98.8%
25 2400-34500V ±2*2.5% 110-690V 80-170 370-1250 560-1185 99.0%
Quality Commitment
Double quality inspection: pre-production sample verification + final inspection before shipment (with QC/test report)
International standards: in compliance with ANSI/IEEE/DOE2016/CSA/IEC60076
Service guarantee: FAT factory acceptance test + ≥2-year warranty
Core Advantages
Technical response: independent design team completes drawing confirmation within 7 days
Expert support: 30+ senior engineer team, 24h online (30-minute response)
Product Features
Energy-saving mode: adjust the load and reduce energy consumption
Efficient heat dissipation: optimize the heat dissipation design and extend the service life
Powerful power: supports up to 25kVA power output to meet industrial needs
Heavy load capacity: suitable for high-load equipment, excellent stability
All-round protection: equipped with multiple safety protection measures

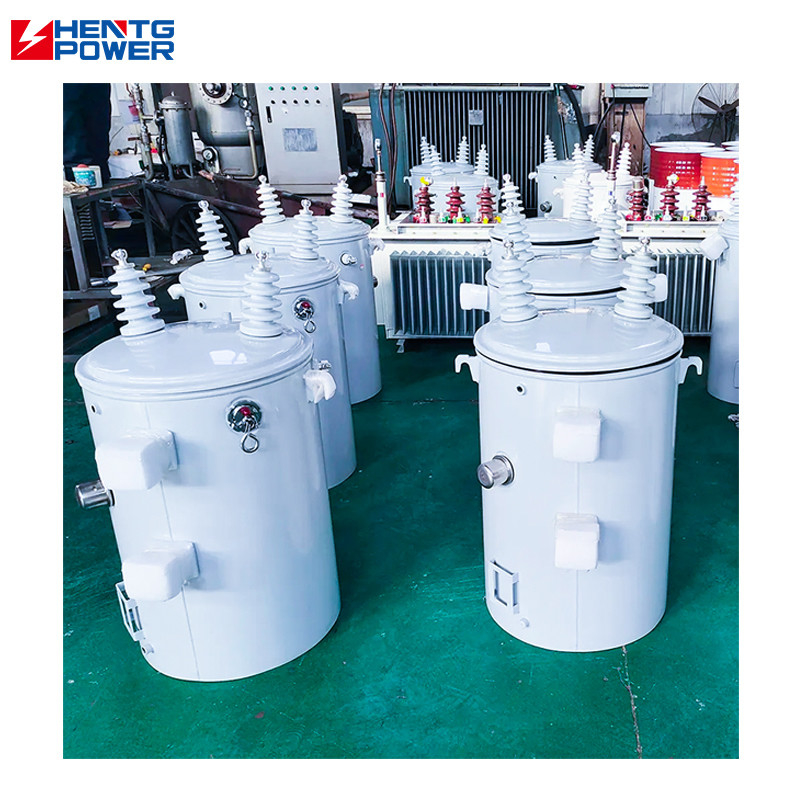

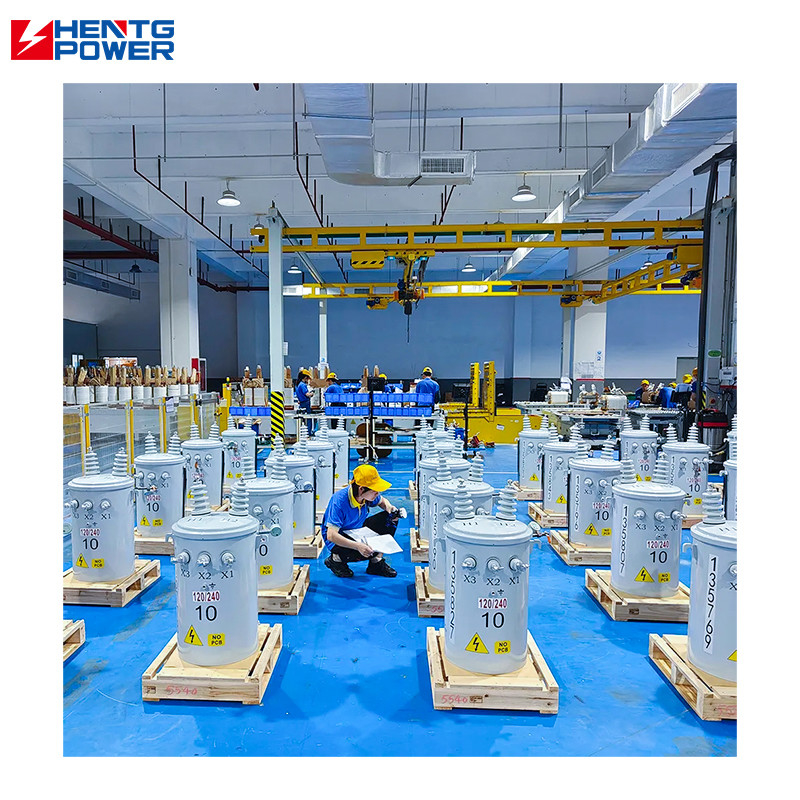

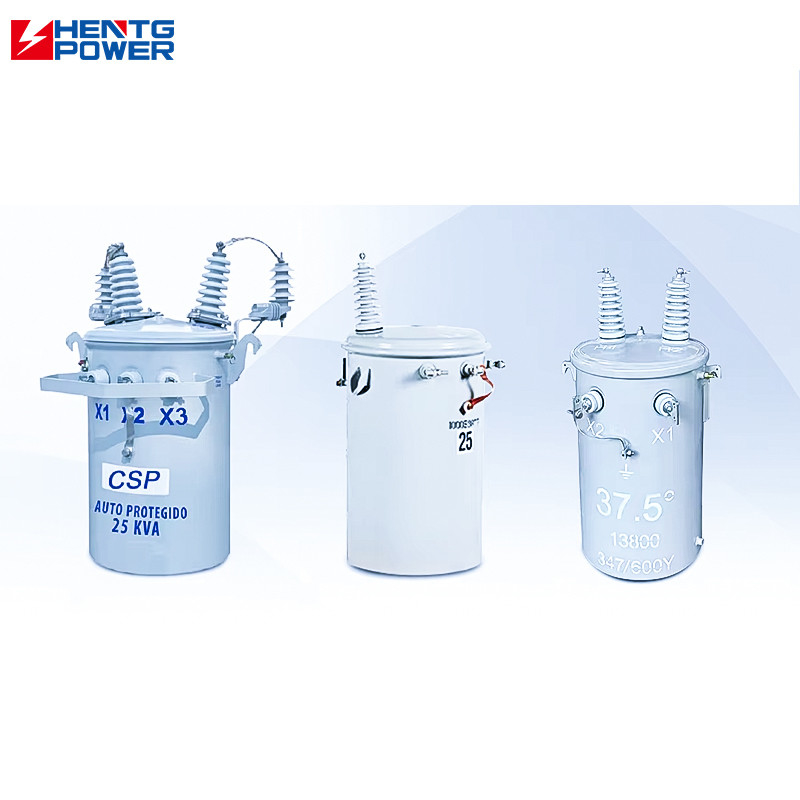

Product Images
Variable Voltage Single Phase Pole Mounted Transformer Oil Immersed Mv Hv Transformer 0 Variable Voltage Single Phase Pole Mounted Transformer Oil Immersed Mv Hv Transformer 1 Variable Voltage Single Phase Pole Mounted Transformer Oil Immersed Mv Hv Transformer 2 Variable Voltage Single Phase Pole Mounted Transformer Oil Immersed Mv Hv Transformer 3 Variable Voltage Single Phase Pole Mounted Transformer Oil Immersed Mv Hv Transformer 4 Variable Voltage Single Phase Pole Mounted Transformer Oil Immersed Mv Hv Transformer 5 Variable Voltage Single Phase Pole Mounted Transformer Oil Immersed Mv Hv Transformer 6 Variable Voltage Single Phase Pole Mounted Transformer Oil Immersed Mv Hv Transformer 7
Customized Cooperation
OEM services available
Flexible payment options
Global project installation support
