Quality One Phase Pole Mounted Transformer Self Cooled 98% Efficiency For Power Distribution factory

One Phase Pole Mounted Transformer Self Cooled 98% Efficiency For Power Distribution

Name: One Phase Pole Mounted Transformer Self Cooled 98% Efficiency For Power Distribution
Brand: Hunan Hentg Power Electric Technology Co., Ltd.
SKU: ZGS Series
Availability: InStock

Product Summary

Single Phase Pole Mounted Transformer - Self Cooled, 98% Efficiency for Power Distribution Product Specifications Attribute Value Frequency 50Hz, 60Hz Phase Single Phase Coil Number Three Windings, Multi Winding, Two Windings, Single Winding Application Distribution System Output Voltage 110V, 220V, ...

Key Attributes

Brand Name: HENTG Power

Model Number: ZGS Series

Place of Origin: China

Certification: CE/UL/CSA/IEEE

MOQ: 1

Product Custom Attributes

Highlight

Pole Mounted Transformer Self Cooled

One Phase Pole Mounted Transformer

Frequency:

50Hz, 60Hz

Phase:

Single Phase

Coil Number:

Three Windings, Multi Winding, Two Windings, Single Winding

Application:

Distribution System

Output Voltage:

110V, 220V, 380V, 400V , 480V

Input Voltage:

10.5kV, 6.3kV, 6kV, 10kV, 11kV

Type:

Single Phase Pole Mounted Transformer

Application:

Power Distribution System Power Transformer

Rated Capacity:

10KVA-500KVA

Vector Group:

Dyn11 / Yyn0

Low Voltage:

110-240/240-480/600-690V

Standard:

DOE/IEC60076/IEEE/ANSI

Feature:

High Frequncy Distribution Transformer

MOQ:

2 Sets

Operating Temperature:

40°C

Primary Winding Material:

Aluminum

Enclosure Type:

NEMA 3R

Efficiency:

98%

Cooling Method:

Self-cooled

Secondary Winding Material:

Copper

Insulation Class:

Class H

Mounting Type:

Pole Mounted

Product Description

Single Phase Pole Mounted Transformer - Self Cooled, 98% Efficiency for Power Distribution

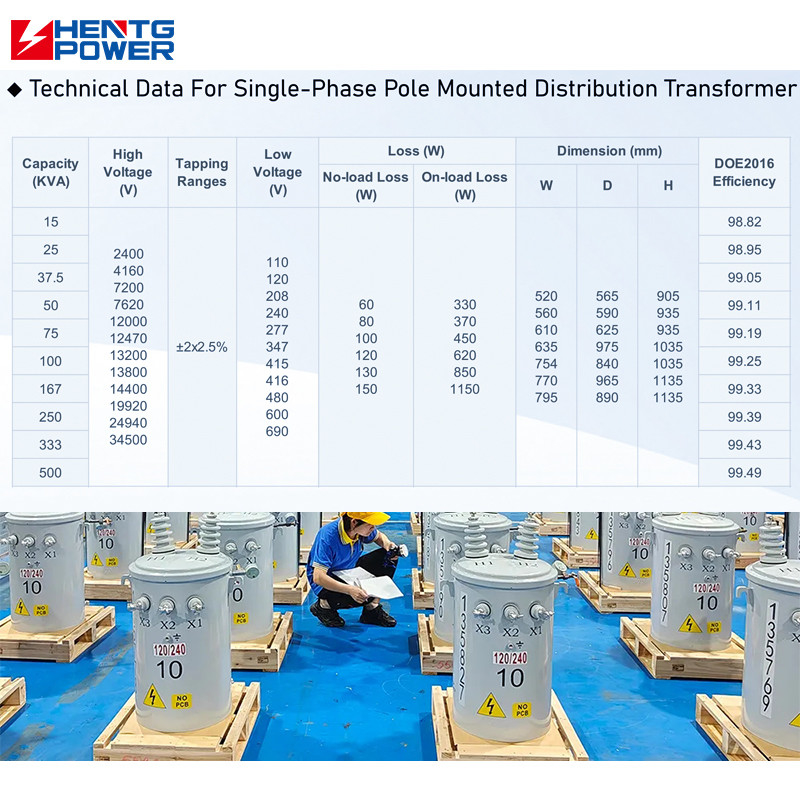

Product Specifications

Attribute	Value
Frequency	50Hz, 60Hz
Phase	Single Phase
Coil Number	Three Windings, Multi Winding, Two Windings, Single Winding
Application	Distribution System
Output Voltage	110V, 220V, 380V, 400V, 480V
Input Voltage	10.5kV, 6.3kV, 6kV, 10kV, 11kV
Type	Single Phase Pole Mounted Transformer
Rated Capacity	15KVA-500KVA
Vector Group	Dyn11 / Yyn0
Low Voltage	110-240/240-480/600-690V
Standard	DOE/IEC60076/IEEE/ANSI
Feature	High Frequency Distribution Transformer
MOQ	2 Sets
Operating Temperature	40°C
Primary Winding Material	Aluminum
Enclosure Type	NEMA 3R
Efficiency	98%
Cooling Method	Self-cooled
Secondary Winding Material	Copper
Insulation Class	Class H
Mounting Type	Pole mounted

Working Principle

High voltage (such as 10,000 volts) enters the transformer → through electromagnetic induction → outputs household voltage (220V). This process functions similarly to an express sorting center converting package sizes for distribution.

Our Service Process

Step 1: Consultation & Quotation

We respond to inquiries within 1 hour and recommend suitable transformers according to your needs. We provide reasonable quotations and payment terms. Our professional drawing and technical teams will confirm all drawing details with you within 7 days after payment, including technical data, weight, and parts list.

Step 2: Production & Quality Assurance

After finalizing production drawings, we prepare stock, manufacture, and conduct rigorous quality inspections before shipment. For special accessory requirements, we can provide customized solutions. All raw materials are strictly screened, and we provide both QC reports and test reports for quality assurance.

Step 3: Installation & Support

Our professional team provides installation guidance and supports on-site installation. We offer more than 2 years of warranty service to ensure long-term performance and reliability.
