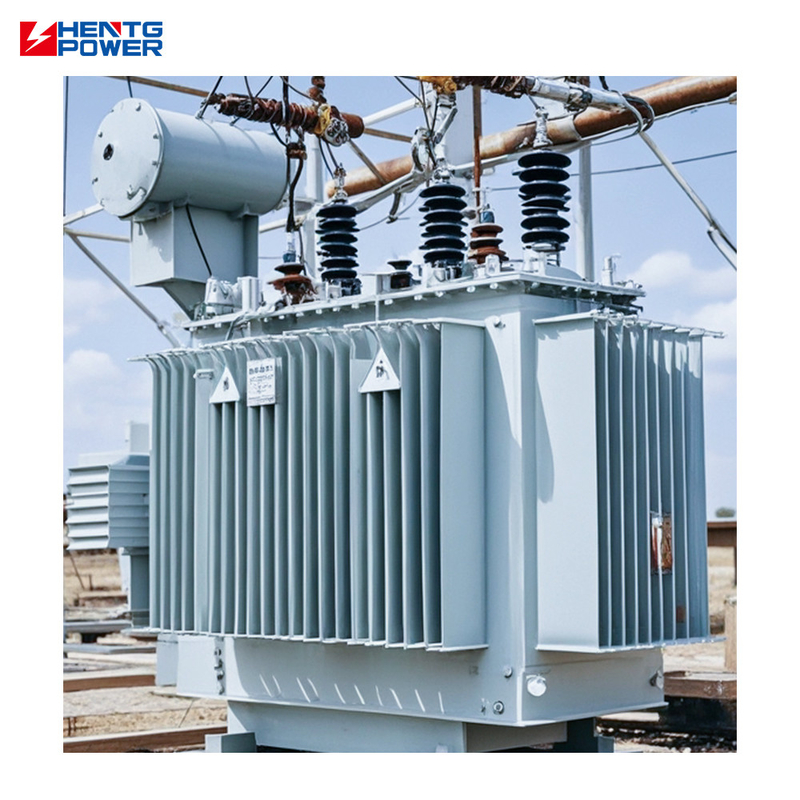

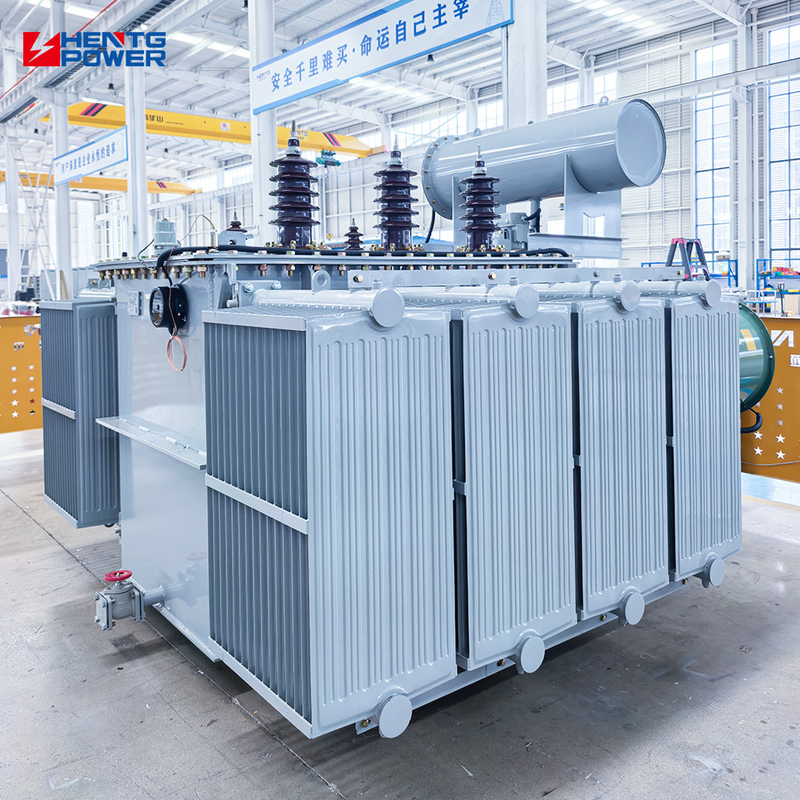

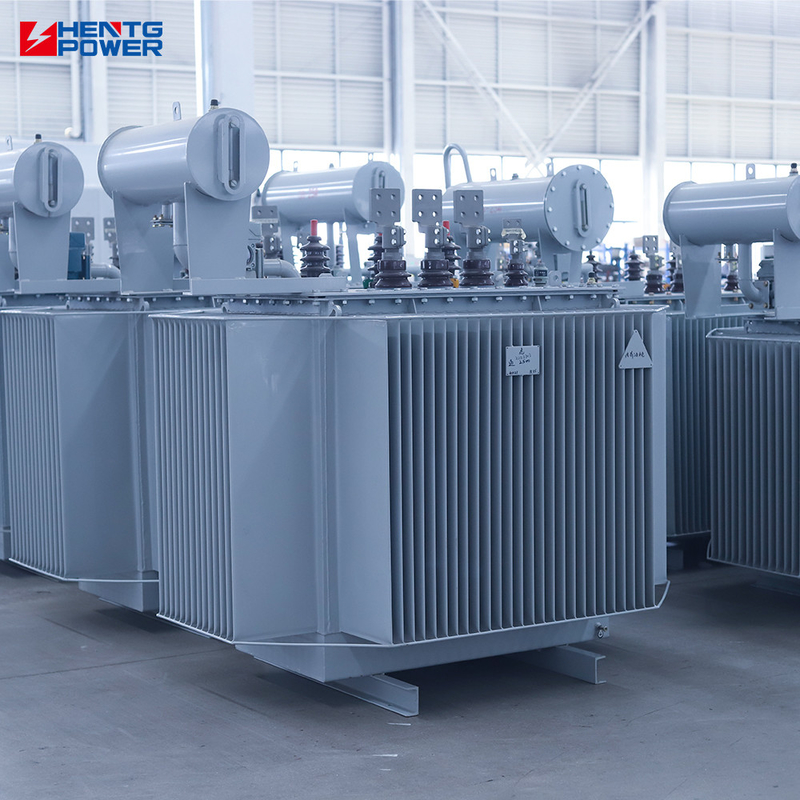

Three Phase 10KV 0.4KV Pole Mounted Distribution Transformer 200KVA 500KVA
Three Phase 10KV 0.4KV Pole Mounted Distribution Transformer 200KVA-500KVA Key Specifications Attribute Value Frequency 50Hz, 60Hz, 50/60Hz Phase Three Coil Number Three Windings Application Distribution System Coil Structure PIE COIL Output Voltage 380V, 400V, 440V, 480V Input Voltage 10kV, 35kV, ...
440V Pole Mounted Distribution Transformer
,Three Phase 10KV Distribution Transformer
| Attribute | Value |
|---|---|
| Frequency | 50Hz, 60Hz, 50/60Hz |
| Phase | Three |
| Coil Number | Three Windings |
| Application | Distribution System |
| Coil Structure | PIE COIL |
| Output Voltage | 380V, 400V, 440V, 480V |
| Input Voltage | 10kV, 35kV, 6kV |
| Type | Oil-Immersed Transformer, Distribution Transformer |
| Rated Capacity | 200KVA-500KVA |
| Cooling Method | ONAN ONAF |
| Vector Group | Dyn11 / Yyn0 |
| Winding Material | Copper |
- Rated Voltage: 35kV
- Capacity Range: 50kVA to 3150kVA
- Cooling Method: Oil-immersed
- Frequency: 50Hz or 60Hz
- Impedance Voltage: Customizable
- Ambient Temperature: -25°C to +40°C
| Capacity (KVA) | HV (KV) | HV Tapping | LV (KV) | Vector Group | No-load Loss (W) | On-load Loss (W) | No-load Current (%) | Short Circuit Impedance (%) |
|---|---|---|---|---|---|---|---|---|
| 630 | 35 | ±5% | 3.15 6.3 10.5 |
Yd11 | 830 | 7870 | 1.1 | 6.5 |
| 800 | 35 | ±5% | 3.15 6.3 10.5 |
Yd11 | 980 | 9410 | 1 | 6.5 |
| 1000 | 35 | ±5% | 3.15 6.3 10.5 |
Yd11 | 1150 | 11540 | 1 | 6.5 |
| 1250 | 35 | ±5% | 3.15 6.3 10.5 |
Yd11 | 1410 | 13940 | 0.9 | 6.5 |
| 1600 | 35 | ±5% | 3.15 6.3 10.5 |
Yd11 | 1700 | 16670 | 0.8 | 6.5 |
We respond to inquiries within 1 hour and recommend suitable transformers according to your needs. We provide reasonable quotations and payment terms. Our professional drawing and technical team confirms all drawing contents with you within 7 days after payment, including technical data, weight and parts list.
After finalizing production drawings, we prepare stock, manufacture, and conduct rigorous quality inspection before shipment. We strictly screen raw materials and provide both QC report and test report for quality assurance.
Our professional team provides installation guidance and on-site installation support. We offer more than 2 years of warranty service for your peace of mind.
- 30+ senior engineers offering 24/7 online service with 30-minute response time
- 100,000m² factory with 250 workers and 30+ engineers
- 4 production lines with 10,000+ sets annual production capacity
- 100% OQC testing with 25 detection contents
- 15 years power transformer design and production experience
- Products comply with GB 20052-2024/ANSI/IEEE/DOE2016/CSA/IEC60076 standards
- Cross-industry power transformer solutions
- Global on-site technical support
HENTG POWER is a professional designer, manufacturer and installer of power system solutions worldwide, founded in 2011 with 100,000 square meter facility. We specialize in reliable, high-performance solutions for global power systems.
We always provide pre-production samples before mass production and conduct final inspection before shipment, including QC & test reports. We accept FAT (Factory Acceptance Test). Our factory manufactures oil type and dry type distribution transformers up to 500KV 480MVA power transformers, GIS, switchgear, and substations, complying with ANSI/IEEE/DOE2016/CSA/IEC60076 standards. We provide over 2 years warranty service.
We have professional and independent drawing and technical teams that can confirm all drawing contents with you within 7 days. Our technical team includes 30+ senior engineers offering 24/7 online service with 30-minute response time.
We accept OEM orders and negotiate business payment terms. For any questions or to discuss your specific requirements, please contact our team.
-
