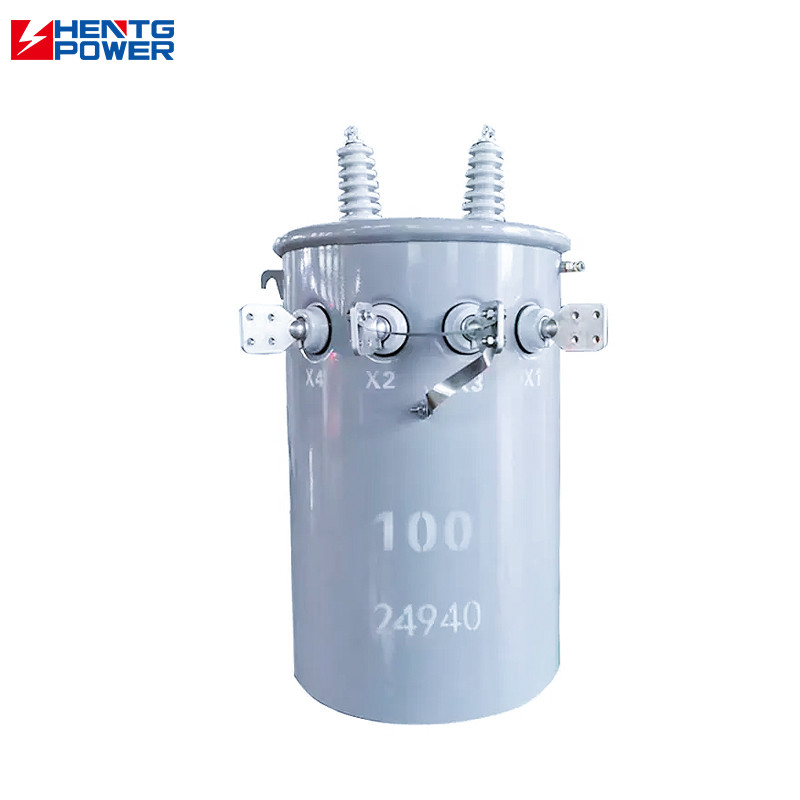

Name: Industrial 25 Kva 1 Phase Medium Voltage Transformer Step Up And Down Transformer
Brand: Hunan Hentg Power Electric Technology Co., Ltd.
SKU: ZGS Series
Price: 1,990.00 USD
Availability: InStock

Home > products > Single Phase Pole Mounted Transformer >

Industrial 25 Kva 1 Phase Medium Voltage Transformer Step Up And Down Transformer

1 Phase Medium Voltage Transformer

Industrial 25 Kva Medium Voltage Transformer

25 Kva Step Up And Down Transformer

Place of Origin:

Jiangsu, China

Brand Name:

HENTG Power

Certification:

Model Number:

ZGS Series

Chat Now

Request A Quote

Product Details

Type:

Oil-Immersed Transformer, Oil-filled Transformer

Material:

Copper

Frequency:

50Hz, 60Hz

Shape:

ROUND

Toplogy:

Double Winding Structure

Winding Material:

Aluminum, Copper

Application:

Distribution System

Phase:

Single Phase

Coil Structure:

Other

Coil Number:

Dual-winding Coil

Input Voltage:

10kV, 35kV, 69kV, 100V, 115kV, 132kV, 220kV, 400kV, 3kV, 6kV, 11kv, 10.5kv, 12.47kv, 6.6kv, 6.3kv

Output Voltage:

110V, 220V, 380V, 480V, 400V , 415V, 440V

Product Name:

Single-phase Oil Immersed Transformer

Application:

Power Distribution System

Capacity:

15 ~ 100KVA

Standard:

IEC60076/GOST/IEEE/ANSI/AZS

Overload Capacity:

1.2 Times Rated Current For 1 Hour

Installation Type:

Pole Mounted

Protection Level:

IP54

Impedance Voltage:

Temperature Rise:

≤65°C

Efficiency:

≥98%

Rated Voltage:

11kV

Cooling Method:

ONAN

Rated Power:

5kVA

Short Circuit Withstand Capacity:

25kA For 3 Seconds

Insulation Class:

Class A

Highlight:

1 Phase Medium Voltage Transformer

Industrial 25 Kva Medium Voltage Transformer

25 Kva Step Up And Down Transformer

Payment & Shipping Terms

Minimum Order Quantity

1 sets

Price

CN¥1680-2300/units

Pole Mounted Step Up And Down Transformer 25 Kva Single Phase Oil Filled Transformer

Chat Now

Video

Oil Immersed Single Phase Pole Mounted Transformer 75KVA 250KVA Customized CE Certified

Chat Now

Video

Step Down Pole Mounted Single Phase Transformer Dual Voltage 15KVA To 167KVA

Chat Now

Video

Single Phase Pole Mounted Distribution Transformer 15kva 25kva 16Kva 37.5kva 50kva 7.62kv 15kv

Chat Now

+86 15074989773

info@hentgpower.com

Chat Now

Product Description

Industrial 25 KVA Single Phase Medium Voltage Transformer

Product Overview

This oil-immersed transformer features a robust double winding structure with copper/aluminum windings, designed for reliable step-up and step-down voltage conversion in power distribution systems.

Key Specifications

Attribute	Value
Type	Oil-Immersed Transformer, Oil-filled Transformer
Phase	Single Phase
Capacity Range	15 ~ 100KVA
Input Voltage	10kV, 35kV, 69kV, 100V, 115kV, 132kV, 220kV, 400kV, 3kV, 6kV, 11kV, 10.5kV, 12.47kV, 6.6kV, 6.3kV
Output Voltage	110V, 220V, 380V, 480V, 400V, 415V, 440V
Cooling Method	ONAN
Efficiency	≥98%
Protection Level	IP54
Temperature Rise	≤65°C

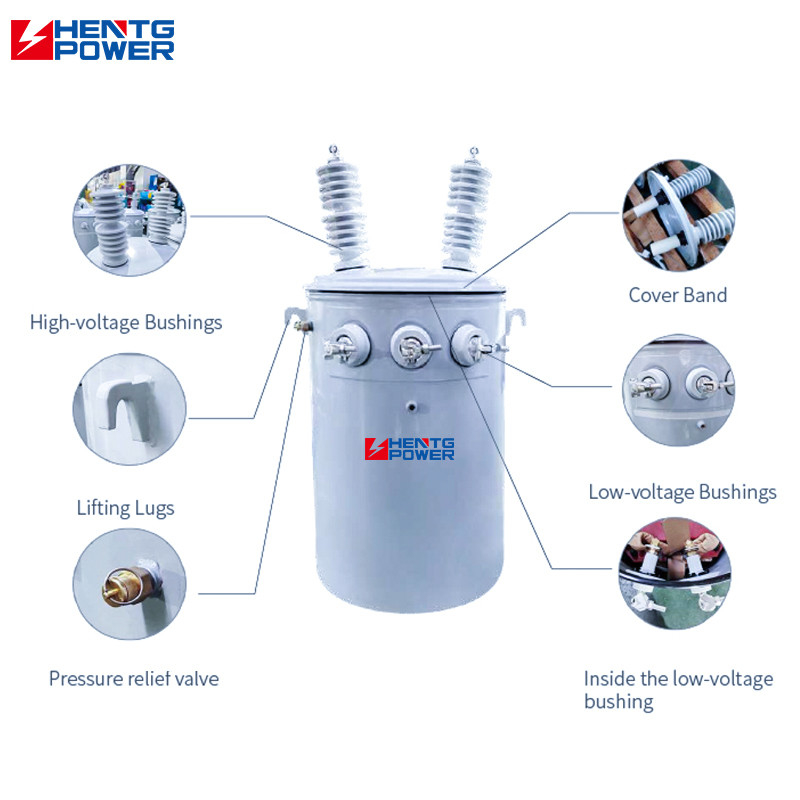

Technical Features

Double winding structure for enhanced performance
Available in both copper and aluminum winding options
Overload capacity: 1.2 times rated current for 1 hour
Short circuit withstand capacity: 25kA for 3 seconds
Pole mounted installation for space efficiency
Compliant with IEC60076/GOST/IEEE/ANSI/AZS standards

Working Principle

The transformer efficiently converts high voltage inputs (e.g., 10,000V) through electromagnetic induction to deliver standard household voltages (220V), functioning like a precision voltage conversion system for power distribution networks.

Applications

Ideal for power distribution systems, electricity express stations, and industrial facilities requiring reliable medium voltage transformation.
