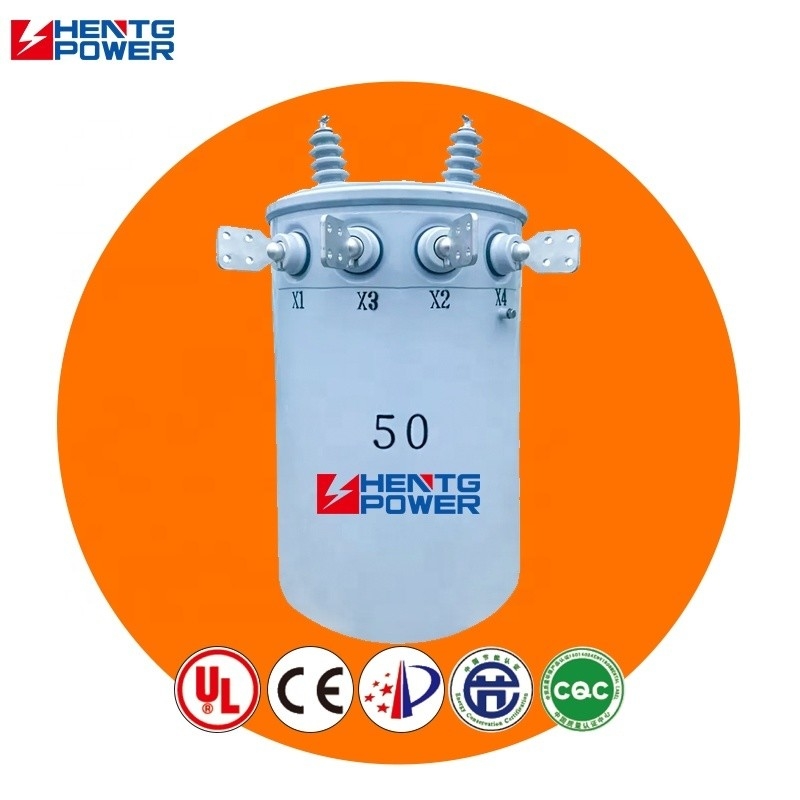

Single Phase Pole Mounted Distribution Transformer Oil Cooling 15kVA 37.5kVA 100kVA 75kVA
Single Phase Pole Mounted Distribution Transformer Oil Cooling 15kVA 37.5kVA 100kVA 75kVA Product Specifications Attribute Value Frequency 50Hz, 60Hz, 50/60Hz Phase Single Phase Coil Structure Shell-Type Coil, layer coil, fully sealed construction, round coil, Disc Coil Output Voltage 10kV, 415V, 110V, 220V, 380V, 400V, 440V, 480V, 11kV Input Voltage 11kV, 10.5kV, 3kV, 12.47kV, 6.6kV, 6.3kV, 6kV, 10kV, 35kV, 69kV, 110kV, 115kV Type Isolation Transformer, Voltage Regulator
Pole Mounted Distribution Transformer Oil Cooling
,Single Phase 75kVA Distribution Transformer
| Attribute | Value |
|---|---|
| Frequency | 50Hz, 60Hz, 50/60Hz |
| Phase | Single Phase |
| Coil Structure | Shell-Type Coil, layer coil, fully sealed construction, round coil, Disc Coil |
| Output Voltage | 10kV, 415V, 110V, 220V, 380V, 400V, 440V, 480V, 11kV |
| Input Voltage | 11kV, 10.5kV, 3kV, 12.47kV, 6.6kV, 6.3kV, 6kV, 10kV, 35kV, 69kV, 110kV, 115kV |
| Type | Isolation Transformer, Voltage Regulator Transformer, AUTOTRANSFORMER, Oil-Immersed Transformer |
| Rated Capacity | 15KVA~100KVA |
| Cooling Method | Oil Cooling |
| Vector Group | Dyn11 / Yyn0 |
| Winding Material | Copper |
- Reduced Line Losses: Installed close to the load, these transformers shorten the low-voltage supply radius, reducing line losses by over 99%.
- Energy Efficient Design: Features high-efficiency wound core design for improved electrical performance and energy efficiency.
- Space-Saving Installation: Pole-mounted suspension installation requires no ground space, ideal for rural and suburban areas.
- Cost Effective: Lower capital investment compared to traditional transformer systems.
- High Reliability: Fully enclosed structure provides excellent protection against dust and moisture with strong overload capacity.
Silicon Steel Laminated Core, Copper Winding (H-Class Insulation)

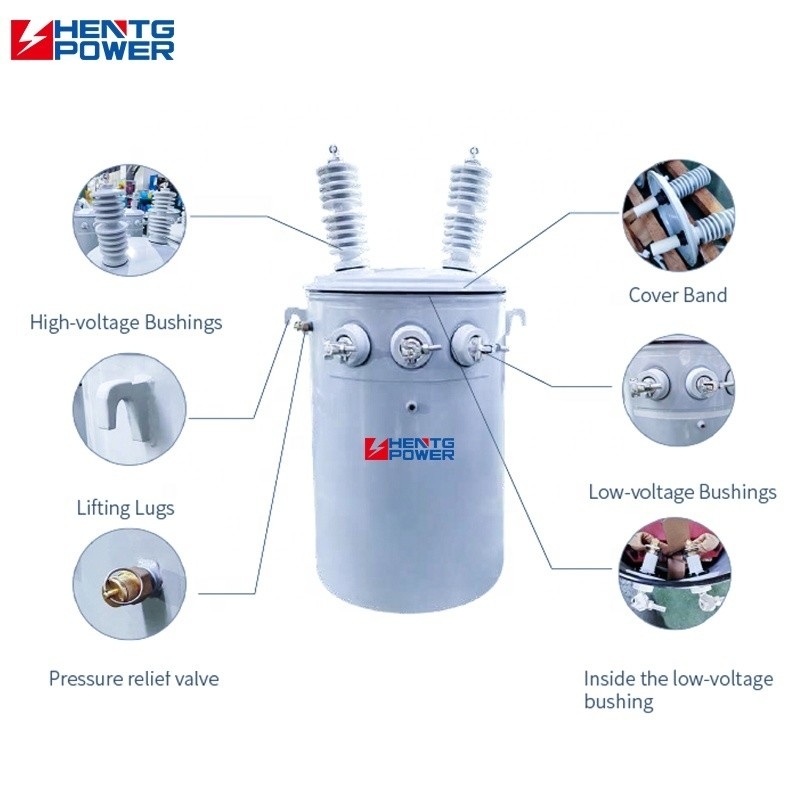

IP55 Protection Grade Oil Tank with Pressure Relief Valve and Oil Level Gauge
| Item | Typical Value |
|---|---|
| Rated Capacity | 10kVA/25kVA/50kVA |
| No-load Loss | ≤45W (25kVA Example) |
| Impedance Voltage | 4%±10% |
- Fully sealed structure for anti-oxidation
- Axial heat sink for enhanced convection
- Anti-theft mechanical locks
- Compact and lightweight design
-
Industrial Grade Pole Mounted Electrical Power Transformer 15kVA-100kVA 60Hz Frequency
Industrial Grade Pole Mounted Electrical Power Transformer 15kVA-100kVA 60Hz Frequency Product Specifications Attribute Value Frequency 60Hz Phase Single Phase Application Power Transformer Output Voltage 110V, 220V, 380V, 400V, 440V, 480V Input Voltage 11kV, 10.5kV, 3kV, 6.6kV, 6.3kV, 35kV, 12.47kV, 6kV Type Pole Mounted Transformer Standard DOE/IEC60076/IEEE Warranty 2 Years Vector Group Dyn11/Yyn0/Yd11/YNd11 MOQ 1 Set Usage Outdoor Power Line Operation Customized Accept
-
60Hz Single Phase Pole Mounted Transformer 75kva 100kva 120V/240V
60Hz Single Phase Pole Mounted Transformer 75kva 100kva 120V/240V Product Specifications Attribute Value Frequency 60Hz Phase Single Phase Application Power Transformer Output Voltage 110V, 220V, 380V, 400V, 440V, 480V Input Voltage 11kV, 10.5kV, 3kV, 6.6kV, 6.3kV, 35kV, 12.47kV, 6kV High Voltage 6KV/6.6KV/10KV/10.5KV/11KV Low Voltage 120-240/240-480/347/600V Rated Capacity 10KVA-500KVA Vector Group Dyn11/Yyn0/Yd11/YNd11 Standard DOE/IEC60076/IEEE Warranty 2 Years MOQ 1 Unit
-
50kVA 100 Kva Pole Mounted Transformer Single Phase Oil Immersed Transformer IP65 Class
50kVA 100 Kva Pole Mounted Transformer Single Phase Oil Immersed Transformer IP65 Class Product Specifications Attribute Value Frequency 50Hz, 60Hz, 50/60Hz Phase Single Phase Application Power Transformer Output Voltage 110V, 220V, 380V, 400V Input Voltage 6.6kV, 12.47kV, 3kV, 6.3kV, 6kV Type Oil-Immersed Transformer Rated Capacity 25-250kVA Cooling Method Dry Type Insulation Class Class A Protection Class IP65 Winding Material Copper Operating Temperature 40°C Mounting Type
