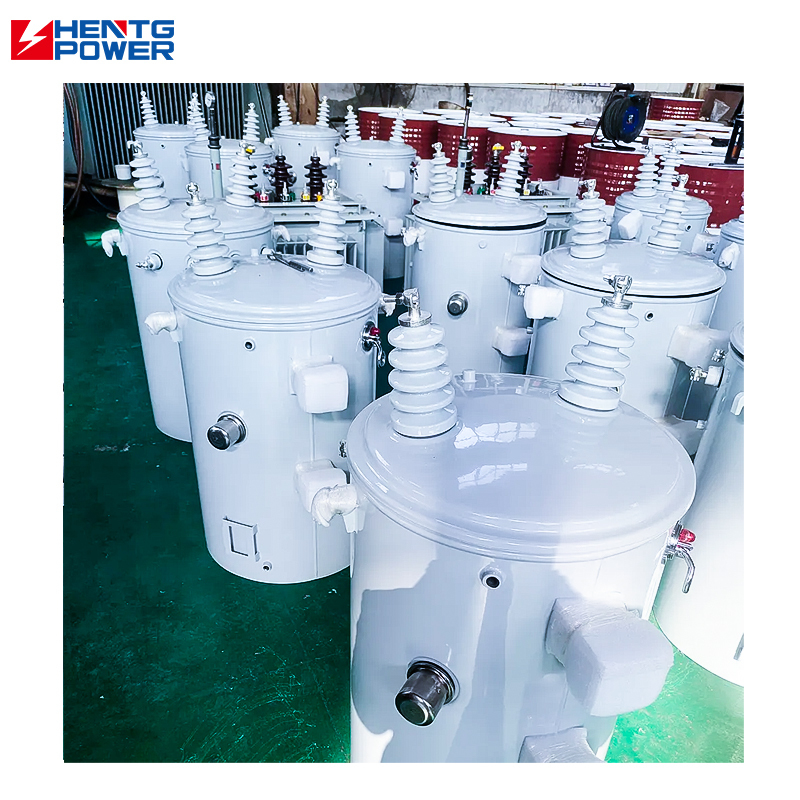

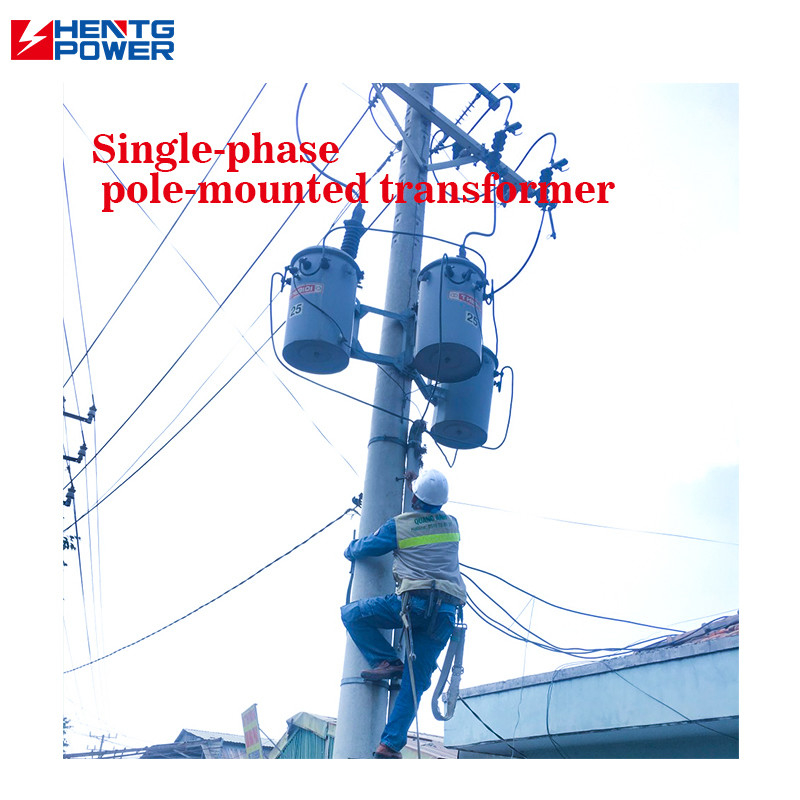

Pole Mounted Oil Immersed Transformer 15KVA 500KVA HV 1 Phase Distribution Transformer
Pole Mounted Oil Immersed Transformer 15KVA 500KVA HV 1 Phase Distribution Transformer Product Overview HENTG POWER Single-Phase Pole Mounted CE-Certified Transformer 15KVA-500KVA HV Distribution Oil-immersed Transformer Key Specifications Attribute Value Frequency 50Hz, 60Hz Phase Single Phase Capacity Range 15kVA - 500kVA Input Voltage 3kV, 6kV, 6.6kV, 6.3kV, 10kV, 35kV Output Voltage 480V, 440V, 400V, 380V Efficiency >98.80% Protection Level IP65 Standards IEC 60076
Pole Mounted Oil Immersed Transformer
,HV Pole Mounted Oil Transformer
,HV 1 Phase Distribution Transformer
| Attribute | Value |
|---|---|
| Frequency | 50Hz, 60Hz |
| Phase | Single Phase |
| Capacity Range | 15kVA - 500kVA |
| Input Voltage | 3kV, 6kV, 6.6kV, 6.3kV, 10kV, 35kV |
| Output Voltage | 480V, 440V, 400V, 380V |
| Efficiency | >98.80% |
| Protection Level | IP65 |
| Standards | IEC 60076 |
| Cooling Method | Oil Immersed |
- High-efficiency & Energy saving wound core structure
- Over 99% reduction in low-voltage line loss
- Strong overload capacity
- High reliability in continuous operation
- Easy to maintain
- Compact design suitable for various installation locations
- Flexible application for small shops and household equipment
- High cost-performance ratio
| Rated Capacity (KVA) | HV | Tapping Range | LV | No-load Loss | Load Loss | Dimension (mm) | Efficiency |
|---|---|---|---|---|---|---|---|
| 15 | 2400-34500 | ±2*2.5% | 110-690 | 60-150 | 330-1150 | 520-1135 | 98.8 |
| 25 | 99.0 | ||||||
| 37.5 | 99.1 | ||||||
| 50 | 99.1 | ||||||
| 75 | 99.2 | ||||||
| 100 | 99.3 | ||||||
| 167 | 99.3 | ||||||
| 250 | 99.4 | ||||||
| 333 | 99.4 | ||||||
| 500 | 99.5 |

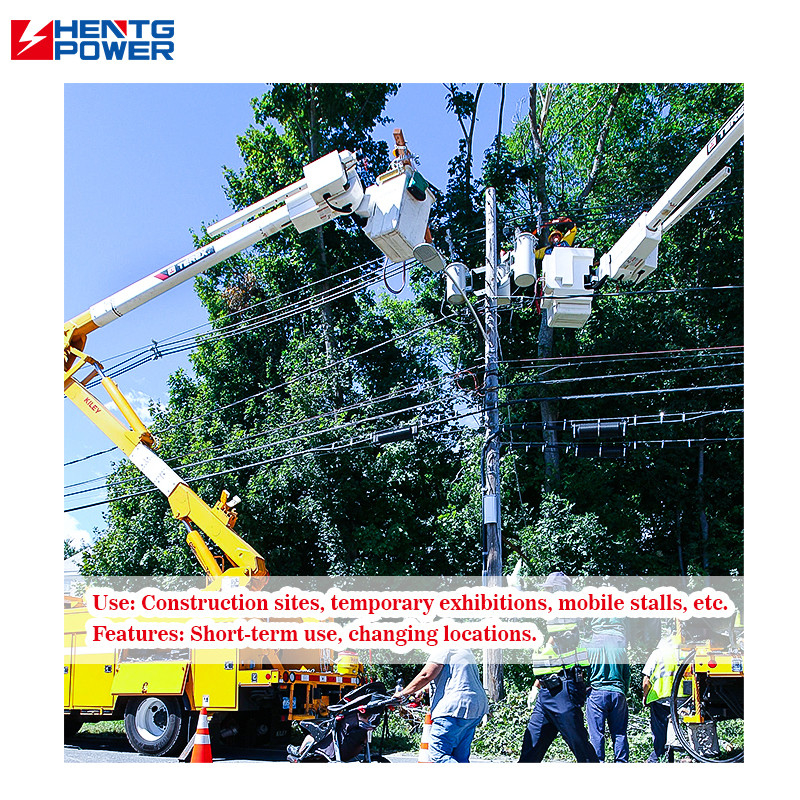

- Distribution systems
- Small commercial establishments
- Residential applications
- GIS switchgear installations
- Substation applications
-
