Name: 112kVA Three Phase Outdoor Pad Mounted Transformer High Efficiency
Brand: Hunan Hentg Power Electric Technology Co., Ltd.
SKU: ZGS Series
Price: 89964 USD
Availability: InStock

Home > products > Three Phase Pad Mounted Transformer >

112kVA Three Phase Outdoor Pad Mounted Transformer High Efficiency

three phase outdoor pad mounted transformer

outdoor pad mounted transformer high efficiency

112kva cooper pad mounted transformer

Place of Origin:

Hunan, China

Brand Name:

HENTG Power

Certification:

Model Number:

ZGS Series

Chat Now

Request A Quote

Product Details

Frequency:

50Hz, 60Hz

Phase:

Three

Coil Number:

Multi Winding, Three Windings

Application:

Distribution System

Coil Structure:

Layer Coil, Fully Sealed Construction, Disc Coil

Output Voltage:

415V, 110V, 220V, 380V, 400V , 440V

Input Voltage:

10kV

Type:

Oil-Immersed Transformer, Dual Winding Transformer

Name:

Oil Type Three Phase Pad Mounted Transformer

Primary Voltage:

2.4 Through 35KV (150KV BIL)

Low Voltage:

Up To 600 Volts

Capacity:

300kva 500kva 750kva

Enclosure:

NEMA Type 3R

Insulation Rating:

Class E Insulation - 120°C, 248°F

Enclosure Rating:

NEMA 3R Weatherproof

Dimensions:

71-W X 73-D X 71-H

Insulation Level:

E Class

Feed Type:

Loop Feed

Warranty:

Varies Depending On Model

Insulation Class:

Varies Depending On Model

Winding Material:

Copper Or Aluminum

Primary Voltage:

Varies Depending On Model

Cooling Type:

ONAN/KNAN

Highlight:

three phase outdoor pad mounted transformer

outdoor pad mounted transformer high efficiency

112kva cooper pad mounted transformer

Payment & Shipping Terms

Minimum Order Quantity

2 sets

Price

CN¥89964/sets

Outdoor Oil Immersed Power Transformer 3 Phase Pad Mounted 750kVA

Chat Now

Video

750kVA Three Phase Oil Filled Pad Mounted Transformer Outdoor Power Solution

Chat Now

Video

Oil Immersed Three Phase Pad Mounted Transformer 225KVA CE Certified ONAN Cooling

Chat Now

Video

Three Phase Pad Mounted Transformer Step Up Step Down 500KVA 750KVA 1000kVA 1500KVA

Chat Now

+86 15074989773

info@hentgpower.com

Chat Now

Product Description

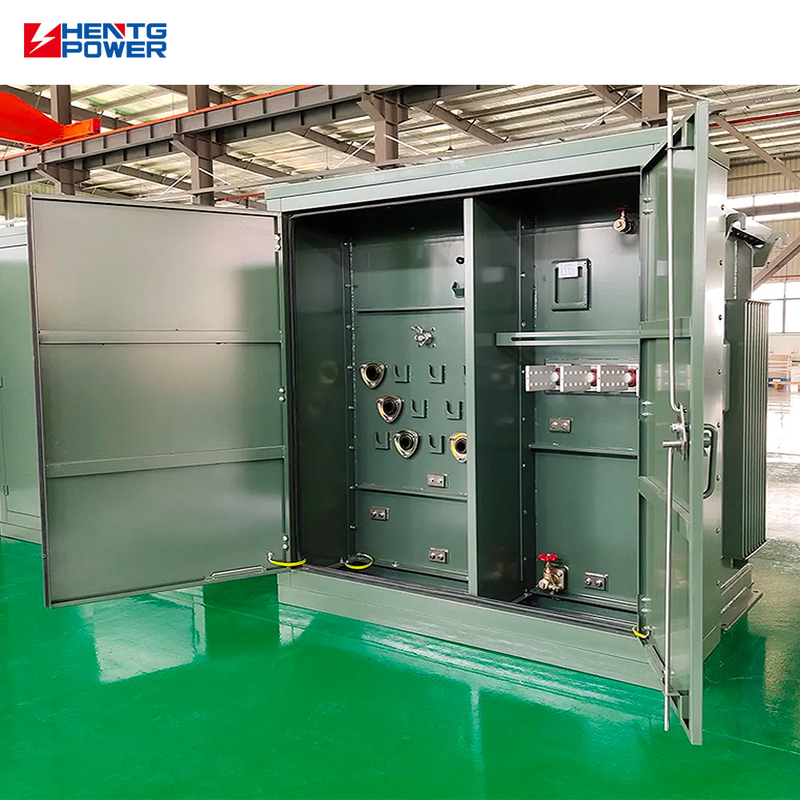

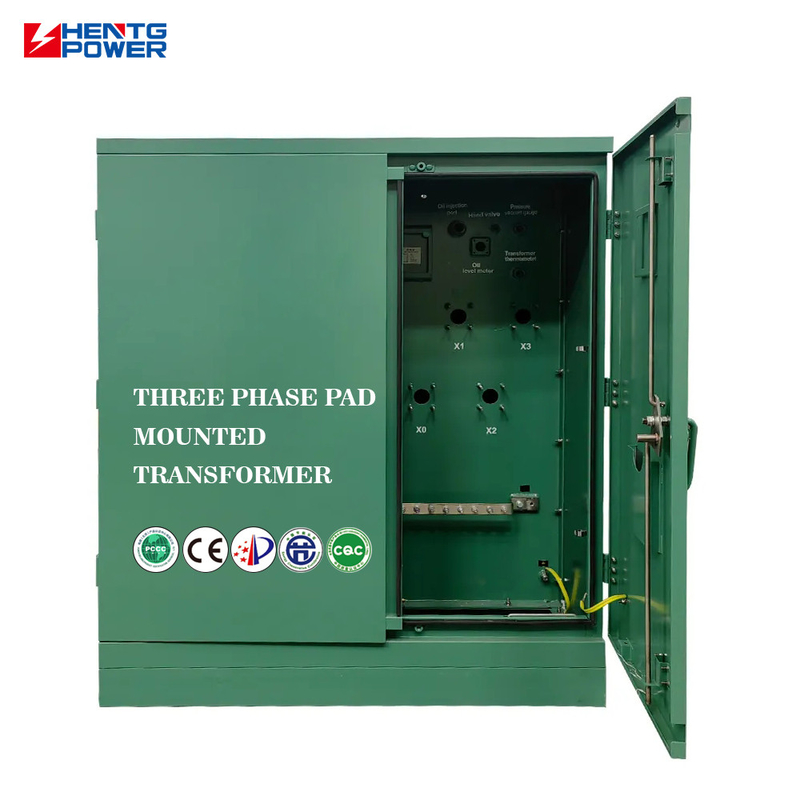

112kVA Three-Phase Pad-Mounted Transformer

High-Efficiency, Reliable Outdoor Power Distribution

Product Specifications

Attribute	Value
Frequency	50Hz, 60Hz
Phase	Three
Coil Number	Multi Winding, Three Windings
Application	Distribution system
Coil Structure	Layer coil, fully sealed construction, Disc Coil
Output Voltage	415V, 110V, 220V, 380V, 400V, 440V
Input Voltage	10kV
Type	Oil-Immersed Transformer, Dual Winding Transformer
Primary Voltage	2.4 through 35KV (150KV BIL)
Low Voltage	Up to 600 volts
Capacity	300kva 500kva 750kva
Enclosure	NEMA Type 3R
Insulation Rating	Class E Insulation - 120°C, 248°F
Enclosure Rating	NEMA 3R Weatherproof
Dimensions	71-W x 73-D x 71-H
Feed Type	Loop Feed
Winding Material	Copper or Aluminum
Cooling Type	ONAN/KNAN

Technical Parameters

Capacity (KVA)	HV	Tapping range	LV	No-load loss	Load loss	Impedance	Efficiency
75	2400 4160 7200 7620 12000 12470 13200 13800 14400 19920 24940 34500	±2X2.5%	110 120 208 240 277 347 415 416 480 600 690	130	100	4.0-6.3	99.03
152				200	1800		99.16
225				350	3100		99.23
300				430	3700		99.27
500				600	5410		99.35
750				880	7500		99.4

Product Overview

The 112kVA Three-Phase Pad-Mounted Transformer is engineered for reliable, high-efficiency power distribution in outdoor applications. It is designed to provide a stable and consistent power supply for medium-sized commercial, industrial, and residential applications. With its rugged oil-immersed insulation and weatherproof design, this transformer ensures low maintenance, safe operation, and long-lasting performance in a variety of challenging outdoor environments.

Key Features

Rated Capacity: 112kVA - Ideal for powering medium-to-large commercial, industrial, and utility applications.
Three-Phase Power - Provides reliable, balanced power to three-phase systems commonly used in commercial and industrial settings.
Pad-Mounted Design - Compact and outdoor-ready, designed for quick, space-saving installation.
Oil-Immersed Cooling - Efficient cooling system to manage heat dissipation and prevent transformer overheating.
Low Noise Emission - Operates with ≤ 55 dB noise level, suitable for urban or residential installations.
Weather-Resistant Construction - Built to withstand harsh environmental conditions such as moisture, dust, and temperature fluctuations.
IP23 Protection Rating - Protects internal components from dust and water ingress in outdoor environments.

Product Benefits

Efficient Power Delivery: Provides balanced, stable three-phase power for various applications.
Space-Saving Outdoor Design: Allows installation in constrained spaces without taking up valuable ground area.
Energy Efficient: Low no-load and load losses help reduce electricity costs over the transformer's lifespan.
Minimal Maintenance Needs: Oil-immersed system and sealed construction reduce maintenance frequency.
Durable and Weatherproof: Designed for reliable operation in harsh weather conditions.
Quiet Operation: Suitable for urban areas, residential complexes, and noise-sensitive locations.

Key Advantages

Perfect for Medium-Scale Applications: Ideal for small industrial plants, retail complexes, and commercial buildings.
Complies with Global Standards: Conforms to IEC 60076 and GB/T 10228 for safety and reliability.
Customizable Options: Offers flexibility with different voltage configurations and protection ratings.
Long Lifespan and Reliability: Oil-immersed design ensures extended operational life.
Eco-Friendly Solution: Built with recyclable materials and designed to minimize energy losses.

Business Partner Information

How can we guarantee quality?

Always a pre-production sample before mass production; Always final Inspection before shipment. We will provide QC & test reports. We accept FAT(Factory Acceptance Test). Factory can manufacture oil type and dry type distribution transformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on ANSI/IEEE/DOE2016/CSA/IEC60076 standard. We provide guarantee service of over 2 years.

Why choose us?

We have professional and independent drawing team and technical team. We can confirm all contents on drawings within 7 days. Our technical team includes 30+ senior engineers offering 24 hours online service with response within 30 minutes.

What services can we provide?

We accept OEM, business payment terms are negotiable.
