Place of Origin:
Jiangsu, China
Brand Name:
HENTG Power
Certification:
CE
Model Number:
S13
| Attribute | Value |
|---|---|
| Type | distribution transformer, Oil-filled Transformer |
| Material | Aluminum, Copper, Copper Winding |
| Frequency | 50Hz, 60Hz |
| Shape | Rectangle |
| Winding Material | Copper |
| Application | High Frequency |
| Phase | Three |
| Coil Structure | Circular coil |
| Coil Number | Dual-winding coil |
| Input Voltage | 10kV, 6kV, 6.3KV |
| Output Voltage | 0.4KV |
| Product Name | Three Phase Transformer |
| Cooling Method | ONAF |
| Vector Group | Yyn0/Dyn11 |
| Standard | IEC60076 |
| Transformer Type | S13 Oil-immersed Transformer |
| Keyword | 400KVA |
| Power | Customized |

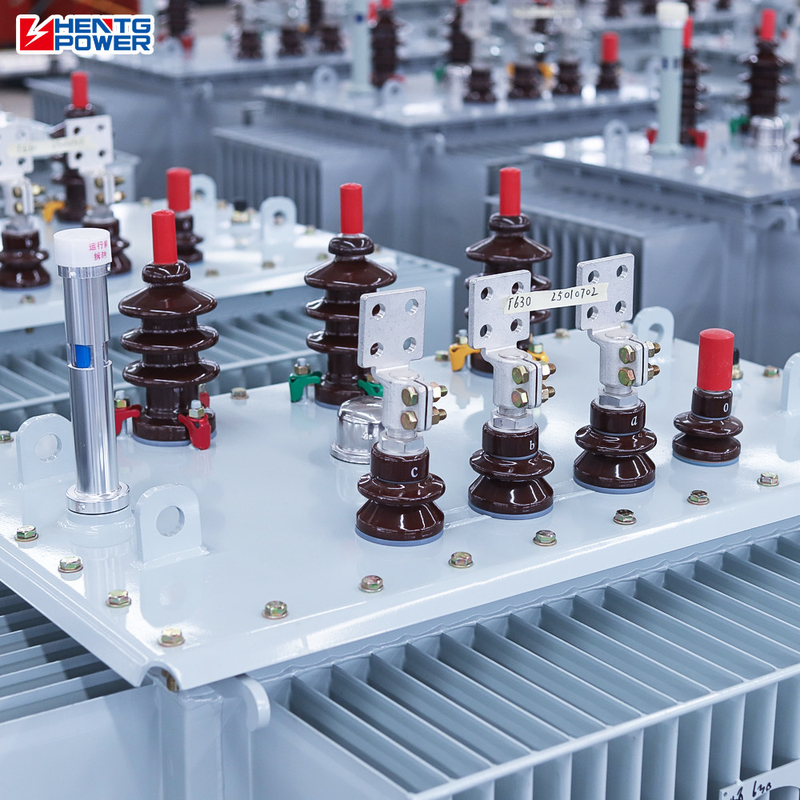

HENTG POWER Three Phase Variable Outdoor Oil Type Potential Current Transformer CE Distribution Coils Transformer 400 Kva
High Efficiency & Energy Saving
Built with low-loss silicon steel and optimized windings, both no-load and load losses are below national standards.
Lowers total power loss and operational cost for substations.
Low Loss & Energy Saving Design
High magnetic permeability silicon steel core and oxygen-free copper winding.
Reduces no-load and load losses.
Saves energy and reduces grid operation costs.

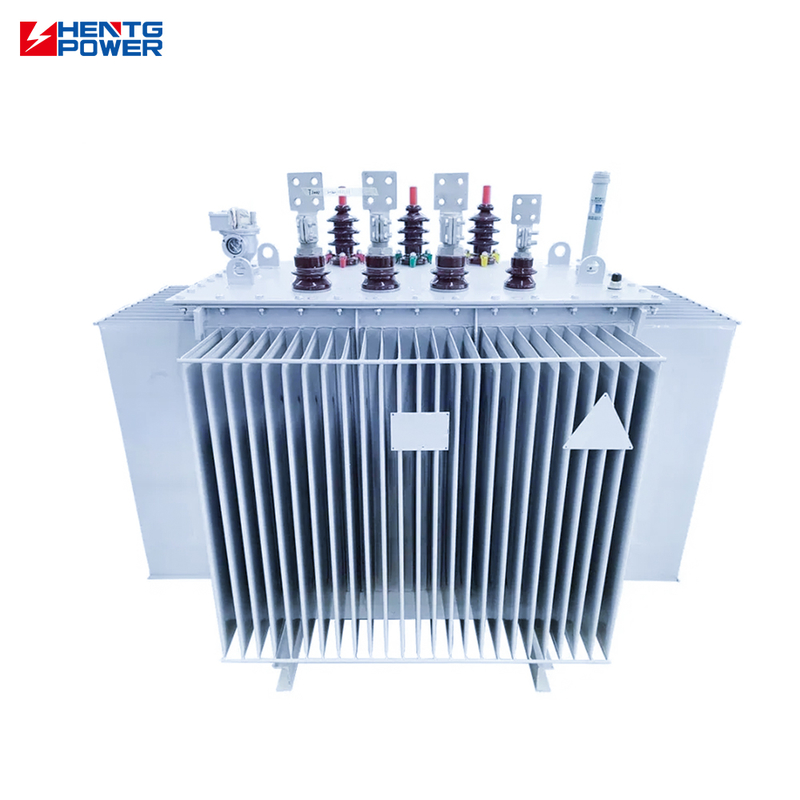

The S13 series oil-immersed distribution transformer is built with high-quality low-loss silicon steel and advanced coil winding technology.

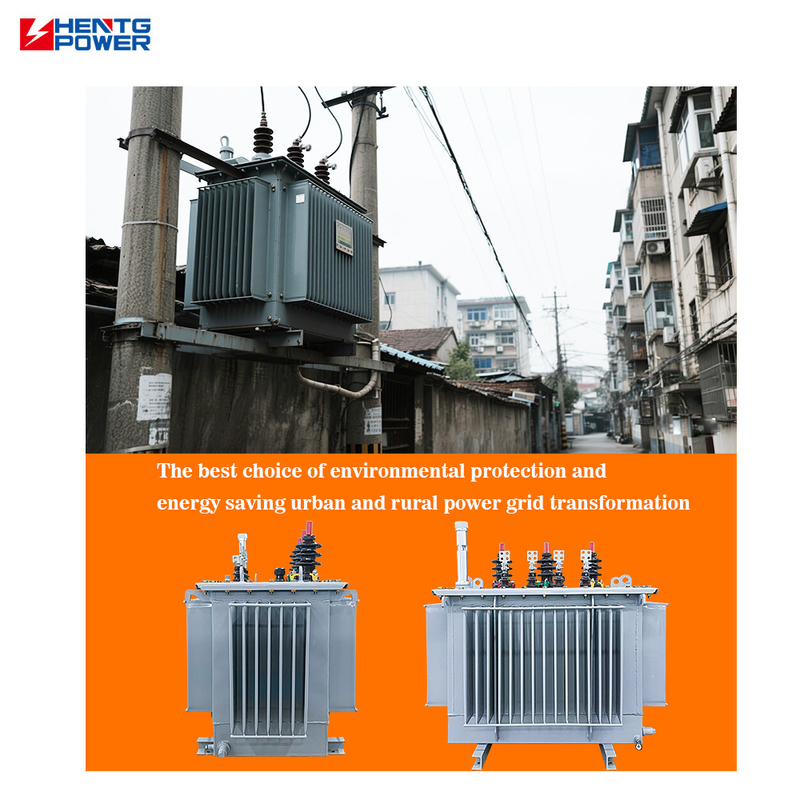

Outdoor oil‑immersed transformers featuring sealed construction and high‑density pressboard insulation for dust and moisture resistance--reliable in extreme climates.
Designed for low loss, high efficiency, and excellent cooling performance, our transformers are widely used in power grids, industrial zones, and renewable energy projects. Custom designs are available, fully compliant with IEC, ANSI, and other international standards.
| Rated capacity (KVA) | Vector Group | Voltage Combination | HV | Tapping range | LV | Dy | Yy | No-load loss | Load loss | No-load current | Impedance | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 6.3 | 6 | ±5% | ±2X2.5% | 0.4 | ||||||||||
| 30 | Yyn0 / Dyn11 | 80 | 630 | 600 | 1.5 | 4.0 | |||||||||
| 50 | 100 | 910 | 870 | 1.3 | |||||||||||
| 63 | 110 | 1090 | 1040 | 1.2 | |||||||||||
| 80 | 130 | 1310 | 1250 | 1.2 | |||||||||||
| 100 | 150 | 1580 | 1500 | 1.1 | |||||||||||
| 125 | 170 | 1890 | 1800 | 1.1 | |||||||||||
| 160 | 200 | 2310 | 2200 | 1.0 | |||||||||||
| 200 | 240 | 2730 | 2600 | 1.0 | |||||||||||
| 250 | 290 | 3200 | 3050 | 0.9 | |||||||||||
| 315 | 340 | 3830 | 3650 | 0.9 | |||||||||||
| 400 | 410 | 4520 | 4300 | 0.8 | |||||||||||
| 500 | 480 | 5410 | 5150 | 0.8 | |||||||||||
| 630 | 570 | 6200 | 6200 | 0.6 | 4.5 | ||||||||||
| 800 | 700 | 7500 | 7500 | 0.6 | |||||||||||
| 1000 | 830 | 10300 | 10300 | 0.6 | |||||||||||
| 1600 | 1170 | 14500 | 14500 | 0.5 | |||||||||||
Step 1:
We will respond to your inquiry within 1 hour and recommend suitable transformer according to your needs. At the same time, we will provide you with reasonable quotations and payment terms.
We have a professional and independent drawing team and technical team, and we will confirm all the contents on the drawing with you within 7 days after payment. The drawing usually contains technical data, weight and parts list.
Step 2:
After designing the production drawing, the factory will prepare the stock, produce, and conduct quality inspection before shipment. If you have special accessory requirements, we can provide you with accessories. Our raw materials are strictly screened. In the quality inspection stage, we will provide you with the dual guarantee of QC report and test report to escort your products.
Step 3:
We have a professional team to guide the installation, and also support on-site installation. We will provide you with more than 2 years of warranty service.
Our transformers are suitable for various industrial applications including:
