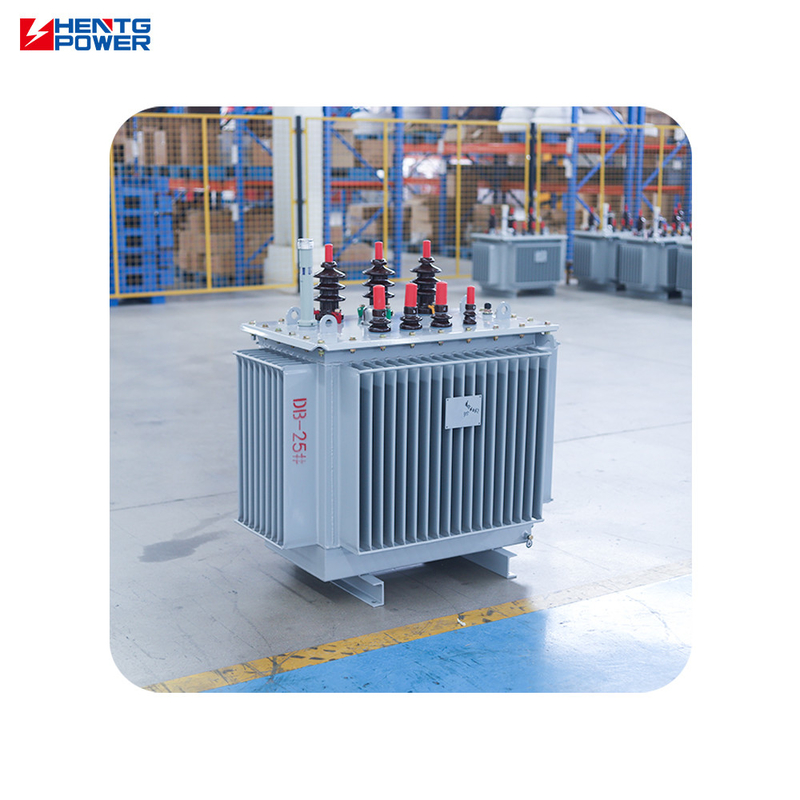

400KVA 500KVA Oil Immersed Power Transformer Anti Corrosion ISO9001 Certified Manufacturer
400KVA 500KVA Oil Immersed Power Transformer Product Specifications Attribute Value Frequency 60Hz, 50Hz Phase Three Coil Number Three Windings, Two Windings Application Power Transformer Coil Structure Layer coil, Shell-Type Coil, fully sealed construction Output Voltage 380V, 400V, 220V, 440V Input Voltage 10.5kV, 12.47kV, 6.6kV, 6.3kV, 6kV Type Oil-Immersed Transformer, Oil-filled Transformer Cooling Method ONAN ONAF OFAF Vector Group Dyn11 / Yyn0 Warranty 3 Years Material
500kva oil immersed power transformer
,oil immersed power transformer anti corrosion
,400kva oil power transformer
| Attribute | Value |
|---|---|
| Frequency | 60Hz, 50Hz |
| Phase | Three |
| Coil Number | Three Windings, Two Windings |
| Application | Power Transformer |
| Coil Structure | Layer coil, Shell-Type Coil, fully sealed construction |
| Output Voltage | 380V, 400V, 220V, 440V |
| Input Voltage | 10.5kV, 12.47kV, 6.6kV, 6.3kV, 6kV |
| Type | Oil-Immersed Transformer, Oil-filled Transformer |
| Cooling Method | ONAN ONAF OFAF |
| Vector Group | Dyn11 / Yyn0 |
| Warranty | 3 Years |
| Material | Aluminum, Copper |
| Tapping Range | ±2*2.5/±5 |
| Standard | ISO9001 |
| Capacity | 63kVA or Customized |
| Power Capacity | 30-12500kVA |
| Color | Can be customized |
| Efficiency | ≥ 98% |
| Low Voltage | 0.415 |
| Rated Voltage | 6kV-1100kV |
| Connection Type | Delta/Wye |
| Ratio | 10/0.4Kv |
| Windings | Two Windings |
| Rated HV Voltage | 11 kv |
| Insulation | Mineral Oil |
| Coil | Copper/Aluminum Coil |
| Feature | Longlife |
Manufacturer Wholesale ISO9001 Certified 400KVA 500KVA Oil-immersed Power Transformer

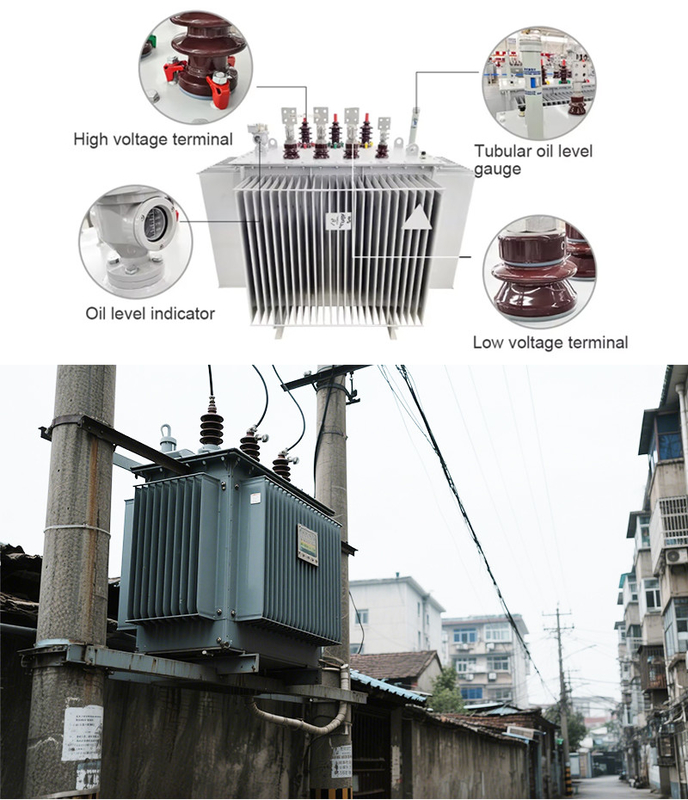

Fully sealed tank with anti-corrosion coating and top-grade transformer oil. Keeps insulation oil pure and prevents moisture ingress. More than 20 years of service life with minimal maintenance required.
Winding uses oxygen-free copper with high insulation and mechanical strength. Short-circuit resistant with low thermal rise. Stable long-term operation with low maintenance costs.
Certified by ISO9001, ISO14001, CE, etc. Meets global safety and environmental compliance. Suitable for global export: EU, US, Middle East, Africa, SEA.
Type S13 oil-immersed distribution transformer is based on the original S11 distribution transformer, through the research and application of new materials and new technologies and the combination of independent innovation and technology introduction, through the optimization and innovative design of the core and coil structure, to reduce the no-load loss and noise purposes. Self-developed products.
Compared with the current national standard JB/T10088-2004, the noise level decreased by 20% on average, and the product performance level reached the domestic advanced level.
Ideal distribution equipment for urban and rural distribution network centers.
| Rated capacity (KVA) | Vector Group | Voltage Combination | No-load loss | Load loss | No-load current | Impedance | |||
|---|---|---|---|---|---|---|---|---|---|
| HV | Tapping range | LV | |||||||
| 30 | Yyn0 / Dyn11 | 10 6.3 6 | ±5% ±2X2.5% | 0.4 | 80 | 630 | 600 | 1.5 | 4.0 |
| 50 | 100 | 910 | 870 | 1.3 | |||||
| 63 | 110 | 1090 | 1040 | 1.2 | |||||
| 80 | 130 | 1310 | 1250 | 1.2 | |||||
| 100 | 150 | 1580 | 1500 | 1.1 | |||||
| 125 | 170 | 1890 | 1800 | 1.1 | |||||
| 160 | 200 | 2310 | 2200 | 1.0 | |||||
| 200 | 240 | 2730 | 2600 | 1.0 | |||||
| 250 | 290 | 3200 | 3050 | 0.9 | |||||
| 315 | 340 | 3830 | 3650 | 0.9 | |||||
| 400 | 410 | 4520 | 4300 | 0.8 | |||||
| 500 | 480 | 5410 | 5150 | 0.8 | |||||
| 630 | 570 | 6200 | 6200 | 0.6 | 4.5 | ||||
| 800 | 700 | 7500 | 7500 | 0.6 | |||||
| 1000 | 830 | 10300 | 10300 | 0.6 | |||||
| 1250 | 970 | 12000 | 12000 | 0.5 | |||||
| 1600 | 1170 | 14500 | 14500 | 0.5 | |||||
| 2000 | 1360 | 18300 | 18300 | 0.4 | 5.0 | ||||
| 2500 | 1600 | 21200 | 21200 | 0.4 |
We will respond to your inquiry within 1 hour and recommend suitable transformer according to your needs. At the same time, we will provide you with reasonable quotations and payment terms.
We have a professional and independent drawing team and technical team, and we will confirm all the contents on the drawing with you within 7 days after payment. The drawing usually contains technical data, weight and parts list.
Click here to consultAfter designing the production drawing, the factory will prepare the stock, produce, and conduct quality inspection before shipment. If you have special accessory requirements, we can provide you with accessories. Our raw materials are strictly screened.
In the quality inspection stage, we will provide you with the dual guarantee of QC report and test report to escort your products.
We have a professional team to guide the installation, and also support on-site installation. We will provide you with more than 2 years of warranty service. Welcome to join us and create a win-win situation.
