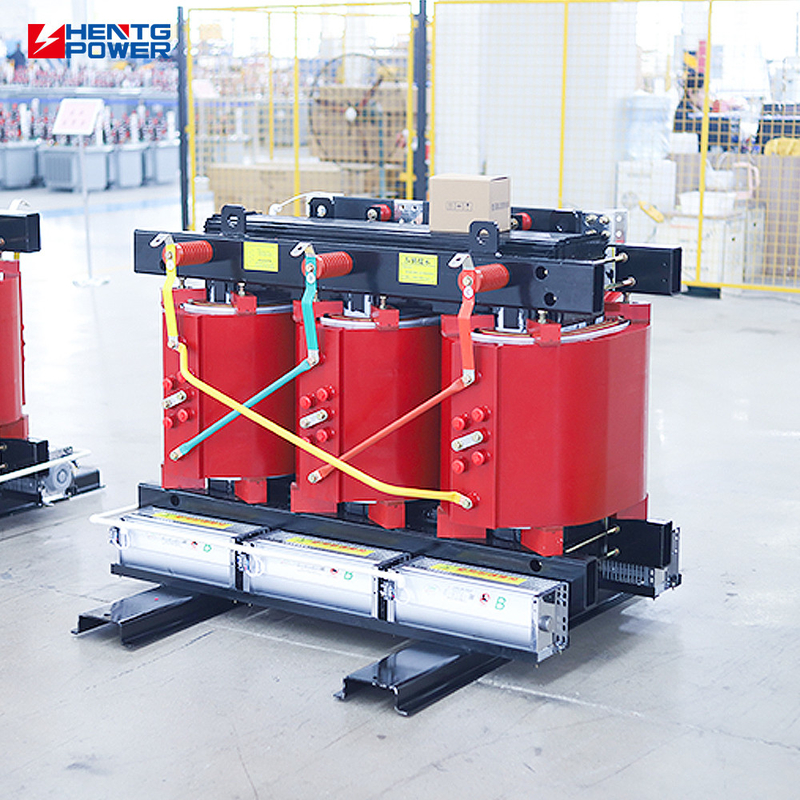

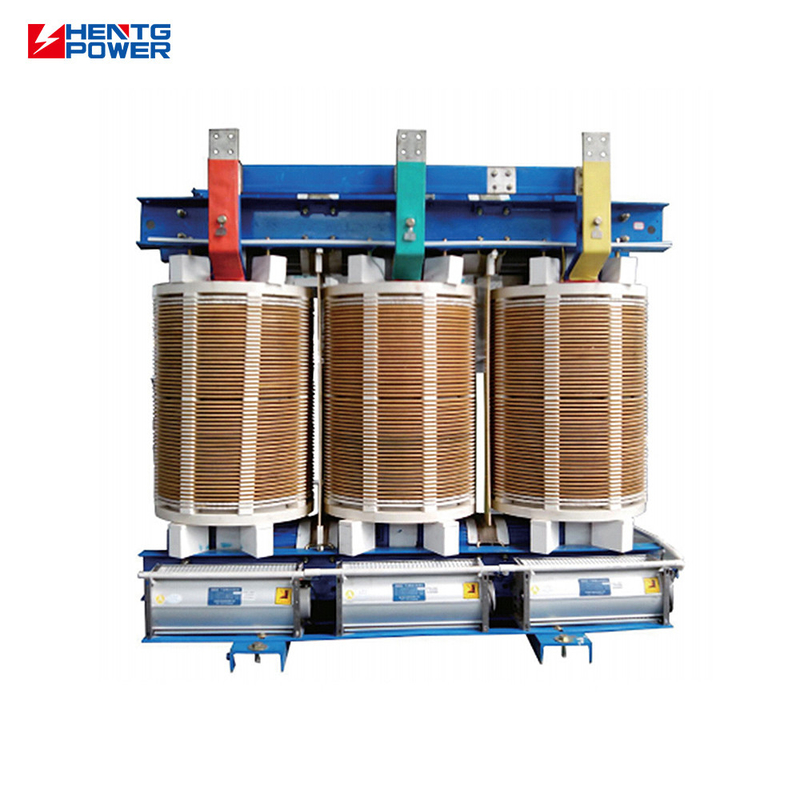

1000kVA Epoxy Resin Insulation Dry Type Transformer Energy Efficient 10kV Input Voltage
1000kVA Epoxy Resin Insulation Dry Type Transformer Energy Efficient 10kV Input Voltage Product Specifications Attribute Value Type distribution transformer, SC-B-13 Material Aluminum Frequency 50Hz, 60Hz Shape Rectangle Winding Material Aluminum Application Potential Phase Three Coil Structure TOROIDAL Coil Number Multi-winding coil Input Voltage 10kV Output Voltage 0.4kV Rated Capacity 1000KVA Cooling Method ANAF Feature High Security Vector Group Dyn11/Yyn0 Working
10kV Input Voltage Dry Type Transformer
,Epoxy Resin Insulation Dry Type Transformer
,1000kVA Epoxy Resin Dry Type Transformer
| Attribute | Value |
|---|---|
| Type | distribution transformer, SC-B-13 |
| Material | Aluminum |
| Frequency | 50Hz, 60Hz |
| Shape | Rectangle |
| Winding Material | Aluminum |
| Application | Potential |
| Phase | Three |
| Coil Structure | TOROIDAL |
| Coil Number | Multi-winding coil |
| Input Voltage | 10kV |
| Output Voltage | 0.4kV |
| Rated Capacity | 1000KVA |
| Cooling Method | ANAF |
| Feature | High Security |
| Vector Group | Dyn11/Yyn0 |
| Working Frequency | 50/60KHz |
| Operating Temperature | 40°C To +180°C |
| Warranty | 3 Years |
| Dimensions | 505*1000*1050mm |
| Protection Level | IP00 |
- Low Loss Design: Reduced no-load loss by over 20% compared to SCB10/SCB11 series
- Cast Resin Coil: Vacuum-cast epoxy resin ensures excellent insulation and mechanical strength
- Fire-Safe: Flame-retardant (F1 class), smokeless and non-toxic in case of combustion
- Moisture & Dust Resistant: Operates reliably in high humidity and dusty indoor environments
- Temperature Monitoring: Equipped with intelligent temperature control and overheat protection
- Safer for indoor use with no flammable oil or toxic gases
- Reduced power loss improves system efficiency and lowers operational costs
- Stable performance under variable load, humidity, and temperature conditions
- Supports smart grid integration with optional communication modules
| Rated capacity (KVA) | Vector Group | No-load loss | Load loss | No-load current | Impedance |
|---|---|---|---|---|---|
| 30 | Yyn0 / Dyn11 | 135 | 640 | 2 | 4.0 |
| 50 | 195 | 900 | 2 | ||
| 1000 | 1270 | 7310 | 0.85 | ||
| 2500 | 2590 | 15400 | 0.7 |
-
