50KVA 6KV Dry Type Mining Explosion Isolation Movable Box Type Substation with 12kV Rated Voltage

50KVA Box Type Substation

6KV Movable Transformer Substation

12kV Rated Voltage Prefabricated Substation

Place of Origin:

China

Brand Name:

HENTG Power

Certification:

Chat Now

Request A Quote

Product Details

Product Name:

Dry Type Mining Explosion Isolation Movable Transformer Substation

Rated Voltage:

12kV,0.4KV/12KV,11KV 15KV 22KV 33KV,6.3KV,13.8KV

Type:

Prefabricated Substation,YBW-12/0.4-2000,American Type,Electrical Boxes Substation,Outdoor Type

Application:

Industrial,Electric Power Transmission,metallurgy And Other Fields.,high Buildings,airports

Standard:

IEC60439,IEC60076,IEC/GB,JB/T,CQC

Color:

Customer Request,CUSTOMIZED COLOR,Green,green Or Optional,As Required

Frequency:

50/60Hz,50Hz Or 60Hz

Material:

Steel,Copper,galvanized Sheet Etc.,201,Cold Plate Spray Molding

Rated Current:

115A/2887A,H Voltage 200---630KA,630A,1000KVA,630 1250 1600A

Rated Capacity:

200,200-2500kva,3000,80,400

Certification:

ISO9001,SGS,CE,Type Test Report/CESI/ CTQC/ISO9001,Other

Vector Group:

Dyn11,Dyn5,Ynd11,or Others,Yyn0

Transformer Type:

Dry Type Or Oil Immersed Type Transformer

Key Words:

12kv Box Transformer Substation,Network Automation Terminal

Capacity:

30-2000KVA

High Voltage:

10kV,below 35KV,6KV To 35KV

Port:

Any Port In China,SHANGHAI

Rated Frequency:

50Hz,50/60Hz

Highlight:

50KVA Box Type Substation

6KV Movable Transformer Substation

12kV Rated Voltage Prefabricated Substation

Payment & Shipping Terms

Minimum Order Quantity

Three Phase 2000kva Pad Mounted Oil Immersed Transformer with 11kV - 500kV Range and ≥ 98% Efficiency for High Frequency Applications

Chat Now

Video

HENTG Power 12kV Rated Voltage 200kva Rated Capacity 50/60Hz Frequency Photovoltaic Box Type Substation for Industrial Applications

Chat Now

Video

HENTG Power CE Certified 220kV 50Hz 5000kVA Box Type Compact Substation for Renewable Energy

Chat Now

Video

Containerized Inverter-Booster Station | 0.4kV / 35kV | PV & ESS Application

Chat Now

+86 15074989773

info@hentgpower.com

Chat Now

Product Description

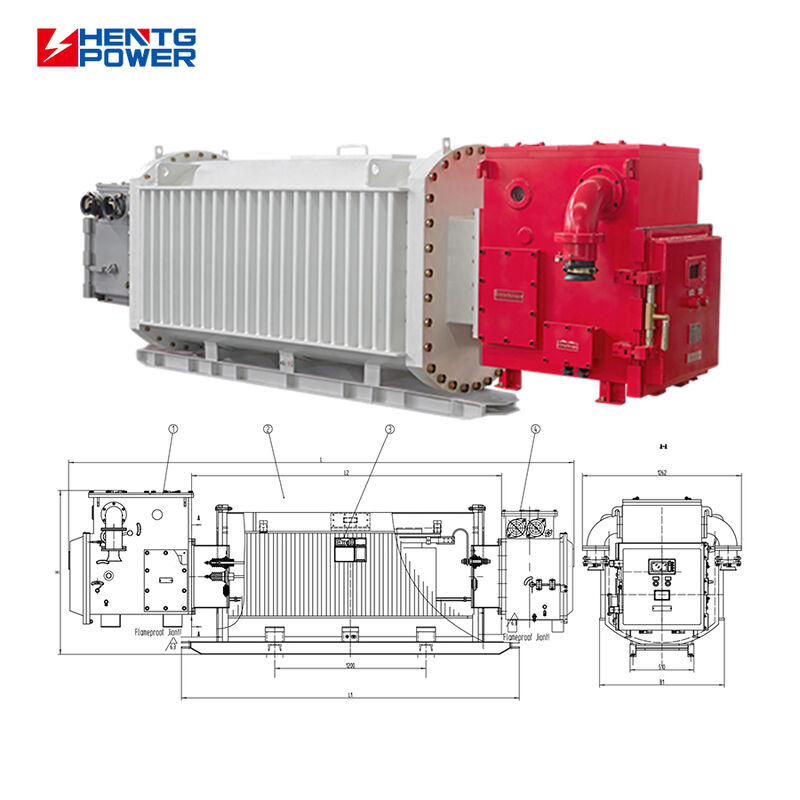

50KVA Tech Data of 6KV KBSG Series Dry Type Mining Explosion Isolation Movable Transformer Substation

Focus on "Application Environment Adaptability" - Tailor-Made for Extreme Underground Conditions

rated capacity kVA)	Voltage group(kV)	connection method	dissipation(KW)		no-load current (%)	impedance voltage(%)	outline dimension	weight (KG)	Gauge (mm)
rated capacity kVA)	Voltage group(kV)	connection method	no-load	load	no-load current (%)	impedance voltage(%)	(Length-Width-Height)	weight (KG)	Gauge (mm)
50	High pressure (6±5%); Low pressure 0.693/0.4 1.2/0.693 1.2 3.45.	YyO(d11) Yyo(d11)Dyn11	350	550	2.5	4	32909501160	2350	600
100			520	920	2.5	4	35809501430	2600	600
200			820	1550	2	4	37109501445	3050	600
250			950	1800	2	4	38209651530	3300
315			1100	2150	1.8	4	38709751540	3500
400			1300	2600	1.8	4	38909951550	3600
500			1500	3100	1.5	4	391010501570	4100	900
630			1800	3680	1.5	4	408510801450	5360
800			2050	4500	1	4	408510801510	5680
1000			2350	5400	1	4	410011301540	6500
1250			2750	6500	1	4	419011601610	6700
1600			3350	8000	0.8	4	419012001750	9230
2000			3800	9500	0.6	4.5	457012201790	9930
2500			4500	10600	0.6	5	458012301850	13830
3150			5300	12500	0.6	5.5	482012601890	17250
4000			6100	14000	0.6	6	493014001920	1827
