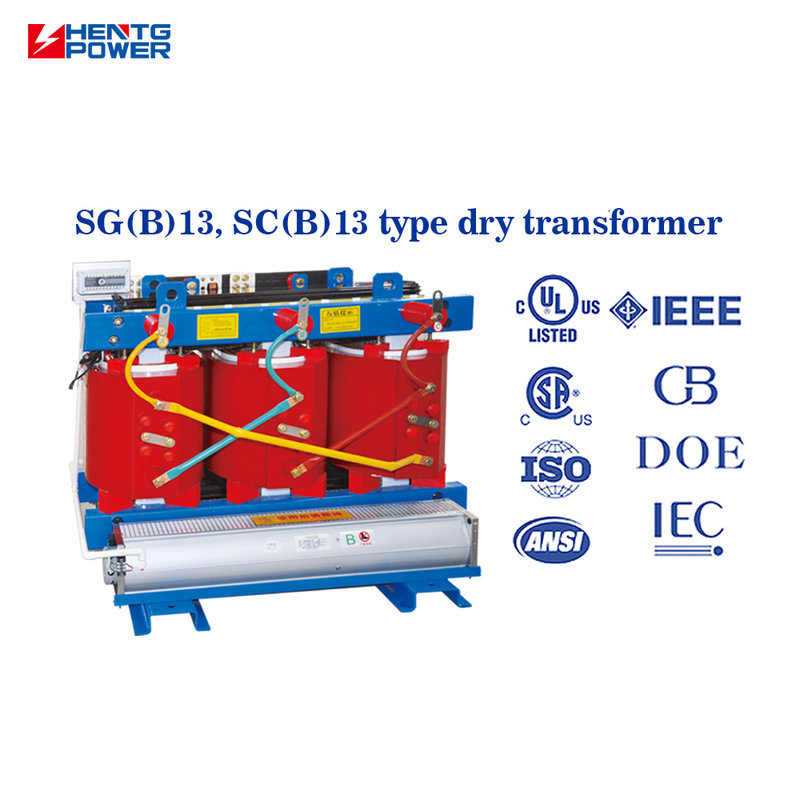

IEC 60076-11 Standards IP20-IP44 High Safety Epoxy Resin Dry-type Transformer with Copper or Aluminum Windings
1600KVA Three Phase Epoxy Resin Dry-type Transformers 2000KVA 2500KVA 50/60Hz Copper/Aluminum Core HENTG POWER Epoxy Resin Dry-Type Transformer Our 1600KVA~2500KVA epoxy resin dry-type transformers are engineered specifically for high-demand data centers and IT facilities. With copper or aluminum ...
IEC 60076-11 Standards Dry Type Transformer
,IP20-IP44 Epoxy Resin Dry-type Transformer
,High Safety Cast Resin Transformer
Our 1600KVA~2500KVA epoxy resin dry-type transformers are engineered specifically for high-demand data centers and IT facilities. With copper or aluminum windings and 50/60Hz compatibility, these transformers provide reliable, safe, and eco-friendly power distribution for sensitive electronic environments.
Key Features:
-
Fire-Safe Oil-Free Design
-
Eliminates risk of fire associated with oil-filled transformers
-
Ideal for indoor data centers and high-value IT environments
-
-
High Short-Circuit & Overload Withstand
-
Protects sensitive servers, storage, and networking equipment
-
Reduces risk of downtime in critical operations
-
-
Low Noise & Vibration
-
Precision-engineered core and windings for quiet operation
-
Supports a comfortable working environment for technical staff
-
-
Maintenance-Free & Long Service Life
-
No oil, no regular servicing, reducing operational costs
-
Epoxy resin insulation resists moisture, dust, and chemical exposure
-
-
Flexible Installation
-
Indoor or semi-indoor installation
-
Compact footprint suitable for limited space
-
| Rated capacity (KVA) | Vector Group | No-load loss | Load loss | No-load current | Impedance (%) |
|---|---|---|---|---|---|
| 30 | Yyn0 / Dyn11 | 135 | 640 | 2 | 4.0 |
| 50 | 195 | 900 | 2 | ||
| 80 | 265 | 1240 | 1.5 | ||
| 100 | 290 | 1410 | 1.5 | ||
| 125 | 340 | 1660 | 1.3 | ||
| 160 | 385 | 1910 | 1.3 | ||
| 200 | 445 | 2270 | 1.1 | ||
| 250 | 515 | 2480 | 1.1 | ||
| 315 | 635 | 3120 | 1 | ||
| 400 | 705 | 3590 | 1 | ||
| 500 | 835 | 4390 | 1 | 6.0 | |
| 630 | 965 | 5290 | 0.85 | ||
| 630 | 935 | 5360 | 0.85 | ||
| 800 | 1090 | 6260 | 0.85 | ||
| 1000 | 1270 | 7310 | 0.85 | ||
| 1250 | 1500 | 8720 | 0.85 | ||
| 1600 | 1760 | 10500 | 0.85 |
Ideal Application Scenario:
Perfectly suited for data centers, server rooms, and IT facilities where power reliability, safety, and low maintenance are critical. Supports high-density racks, backup systems, and sensitive electronic equipment.
Customer Challenges & Solutions:
| Customer Challenge | Our Solution | Benefit |
|---|---|---|
| Fire risk in indoor transformer rooms | Oil-free epoxy resin design | Enhanced safety and compliance with fire codes |
| Downtime from short-circuit or overload | High short-circuit withstand capability | Uninterrupted operation of critical IT systems |
| High operational noise affecting working environment | Low-noise design with vibration damping | Comfortable and quiet environment for staff |
| Frequent maintenance and high operational cost | Maintenance-free epoxy resin design | Reduced cost and downtime |
| Space constraints in dense IT facilities | Compact, modular design | Easy installation in limited space |
-
Enhanced Safety: Fire-resistant, oil-free, suitable for high-value IT environments
-
Reliability: High short-circuit withstand and overload tolerance for uninterrupted operations
-
Cost Efficiency: Maintenance-free, low lifecycle cost
-
Eco-Friendly: Non-toxic, recyclable, compliant with global environmental standards
-
Global Compatibility: Supports 50Hz/60Hz grids, adaptable to Europe, Africa, Americas, and Asia
-
Can be installed indoors or in semi-enclosed spaces with adequate ventilation
-
Optional temperature sensors can connect to building monitoring systems
-
No oil replacement required; periodic inspection of connections and cleaning dust recommended
-
Supports modular installation for future scalability
-
