Product Description

HENTG POWER 200kVA High Reliability Oil Immersed Transformer IP54 Protection Outdoor Power Distribution Aluminum Winding

PRODUCTS DESCRIPTION

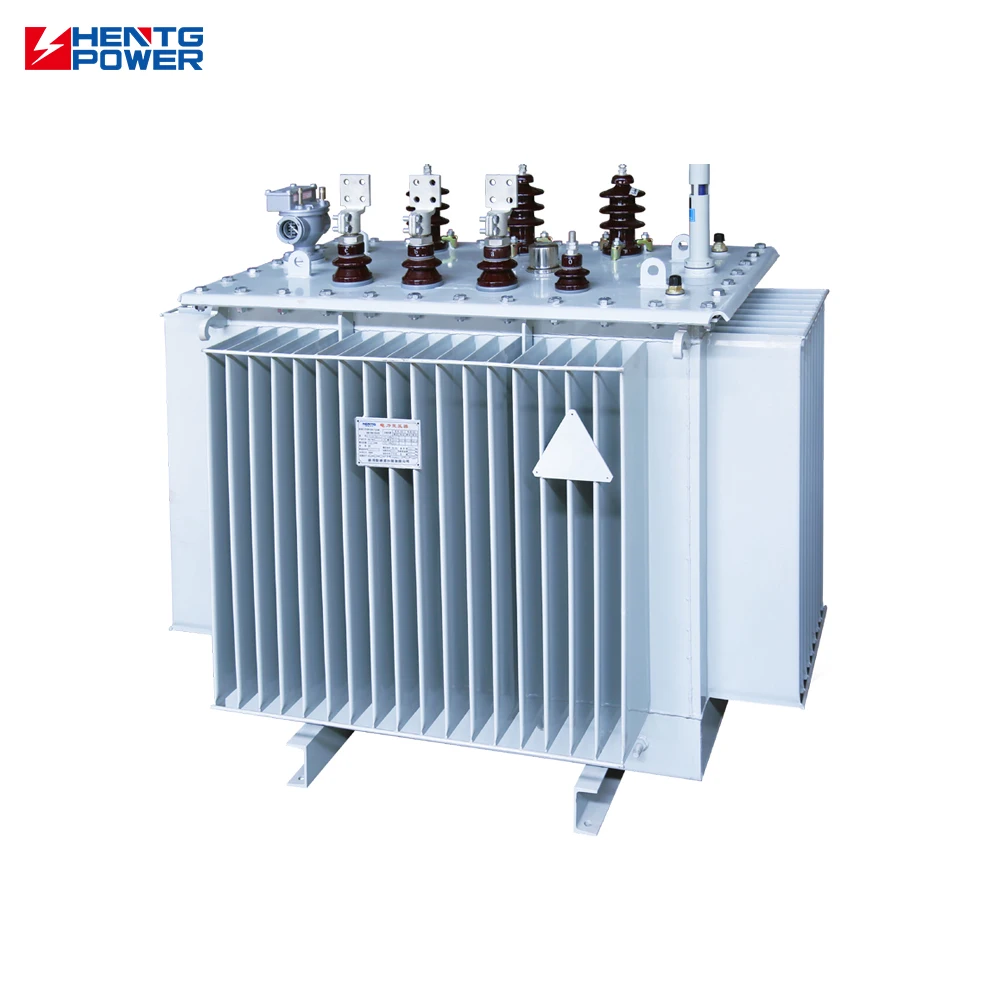

High Frequency 1000 KVA Three-Phase Oil-Immersed Distribution TransformerThe 1000 KVA Three-Phase Oil-Immersed Distribution Transformer is designed to provide stable, efficient, and reliable power distribution for industrial, commercial, and utility applications.
Using high-grade silicon steel and oxygen-free copper windings, the transformer ensures low loss, high efficiency, and excellent overload performance, making it ideal for long-term operation in demanding environments.
Equipped with high-frequency core technology, this transformer reduces energy losses and noise, improving overall power quality and system stability.

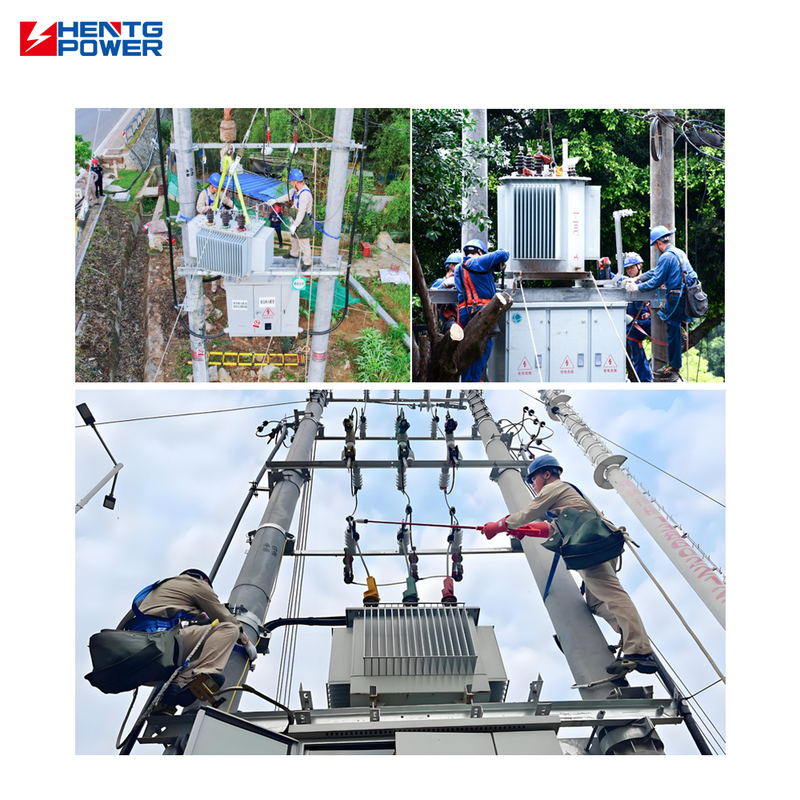

It is widely used in power stations, substations, renewable energy plants, manufacturing facilities, and urban power grids.

OUR ADVANTAGES

The advantages of Type S13 oil-immersed distribution transformer

The Type S13 oil-immersed distribution transformer widely used in residential areas, commercial centers, industrial parks, and rural electrification projects. Compared to S9 or S11, the S13 offers several improvements. Here are the key advantages: 1. Higher Energy Efficiency Lower no-load loss: The S13 series uses high-quality silicon steel sheets and optimized magnetic circuit designs, reducing no-load losses by 20–30% compared to S11 models. Lower load loss: Improved winding structure and materials reduce resistance and load losses, improving overall efficiency. 2. Improved Temperature Rise Performance Enhanced oil circulation and cooling systems help maintain stable operation under load.Better thermal management leads to longer insulation life. 3. Reduced Noise Levels Use of high-permeability silicon steel and precision manufacturing lowers magnetostriction, resulting in quieter operation. 4. Robust Mechanical Design Improved short-circuit resistance due to optimized winding structure and clamping. Core and coil assembly is more stable, reducing vibration and mechanical stress. 5. Longer Service Life Better materials and structural improvements lead to extended service life, often reaching 20–30 years under proper conditions.

PRODUCT PARAMENTERS

Rated capacity (KVA)	Vector Group	Voltage Combination			No-load loss	Load loss		No-load current	lmpedance
Rated capacity (KVA)	Vector Group	HV	Tapping range	LV	No-load loss	Dy	Yy	No-load current	lmpedance
30	Yyn0 / Dyn11	10	±5% ±2X2.5%	0.4	80	630	600	1.5	4.0
50					100	910	870	1.3
63					110	1090	1040	1.2
80					130	1310	1250	1.2
100					150	1580	1500	1.1
125					170	1890	1800	1.1
160					200	2310	2200	1.0
200					240	2730	2600	1.0
250					290	3200	3050	0.9
315					340	3830	3650	0.9
400					410	4520	4300	0.8
500					480	5410	5150	0.8
630					570	6200	6200	0.6	4.5
800					700	7500	7500	0.6
1000					830	10300	10300	0.6
1250					970	12000	12000	0.5
1600					1170	14500	14500	0.5
2000					1360	18300	18300	0.4	5.0
2500					1600	21200	21200	0.4	5.0

 Our Business Partner

COMPANY PROFILE

HENTG Power is an ISO9001 certified transformer manufacturer specializing in reliable, high-performance solutions for global power systems since 2011.

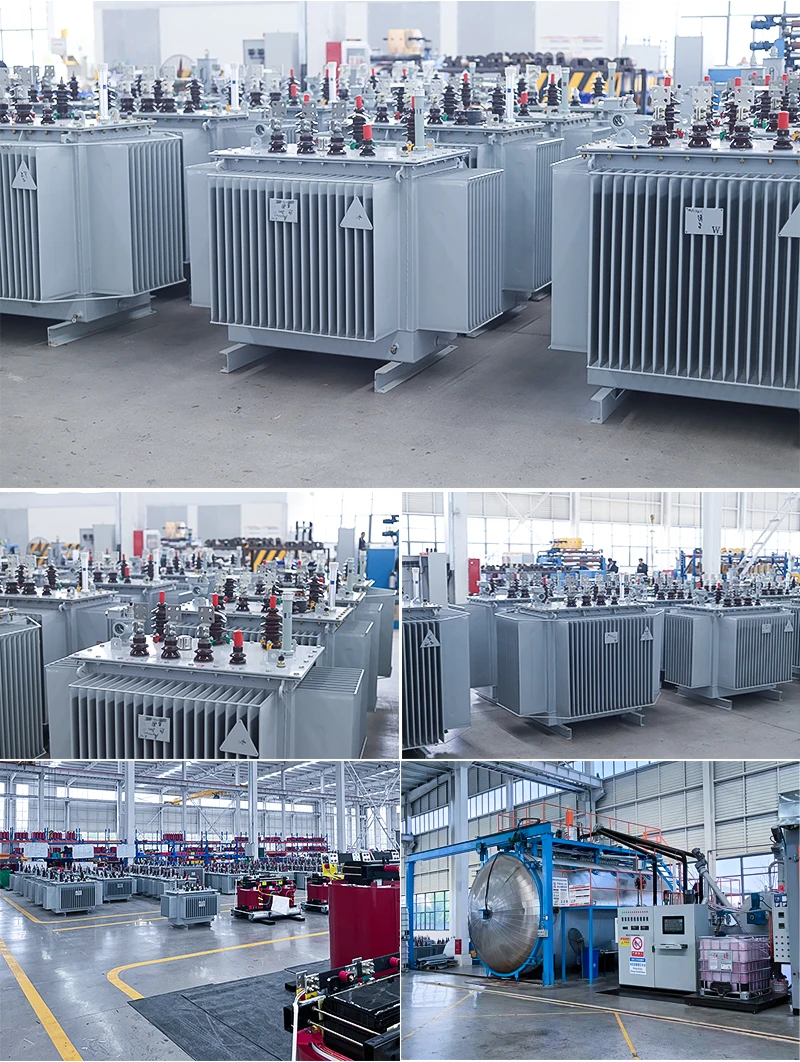

With an 100,000 m² factory, over 250 skilled workers, more than 30 senior engineers, and 10+ professional testing engineers, HENTG Power is dedicated to delivering high-quality transformer solutions with strong production capacity 20000 units/year.

Our products comply with GB 20052-2024 and IEC 60076 standards, and are widely used in global markets across various applications. We offer a wide range of transformers including dry transformer, oil immersed transformer, substation , switchgear, distribution box. our products are widely used in United states, Africa, Middle east, South America, Middle Asia, Southeast Asia, etc.

Guided by our mission — “Transform Energy, Connect the Future.” — HENTG implements strict 5S factory management at every stage of production. Every transformer undergoes 100% Outgoing Quality Control (OQC) with 8 comprehensive testing procedures to ensure performance and reliability.
