HENTG Power 12kV Rated Voltage 200kva Rated Capacity 50/60Hz Frequency Photovoltaic Box Type Substation for Industrial Applications

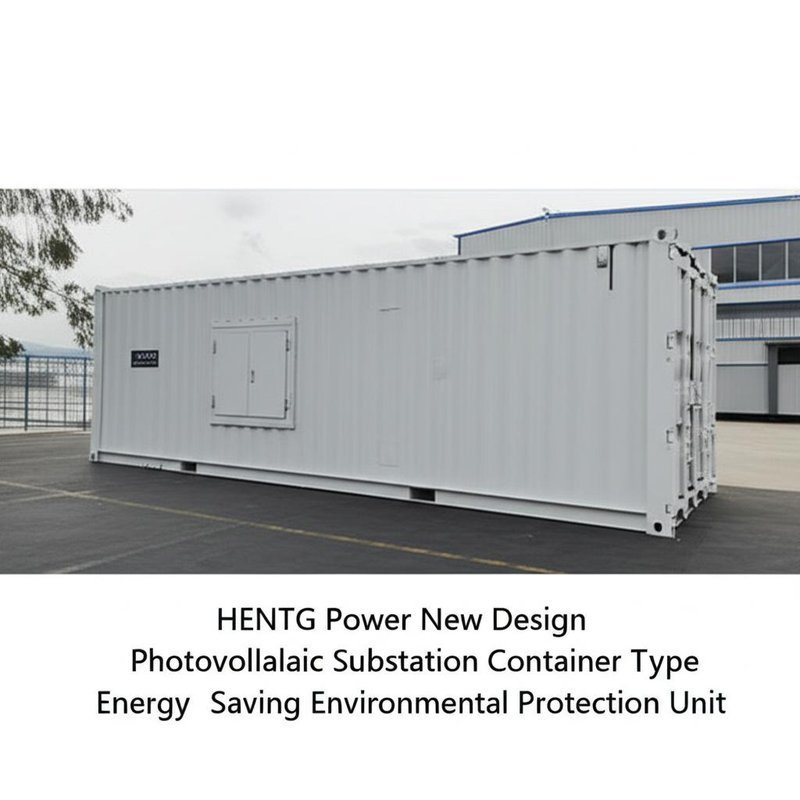

HENTG Power New Design Photovoltaic Substation Container Type Energy Saving Environmental Protection Unit Product Characteristics Vacuum circuit breaker or load switch + fuse (combined electrical appliance) technical solution can be used on the high voltage side. The electrical characteristics of the combined electrical structure ensure that when any phase fuse is blown, the load switch will trip to cut off power supply, allowing safe main switch closure after fuse replacemen
12kV Rated Voltage Box Type Substation
,200kva Rated Capacity Photovoltaic Substation
,50/60Hz Frequency Prefabricated Substation
Vacuum circuit breaker or load switch + fuse (combined electrical appliance) technical solution can be used on the high voltage side. The electrical characteristics of the combined electrical structure ensure that when any phase fuse is blown, the load switch will trip to cut off power supply, allowing safe main switch closure after fuse replacement.

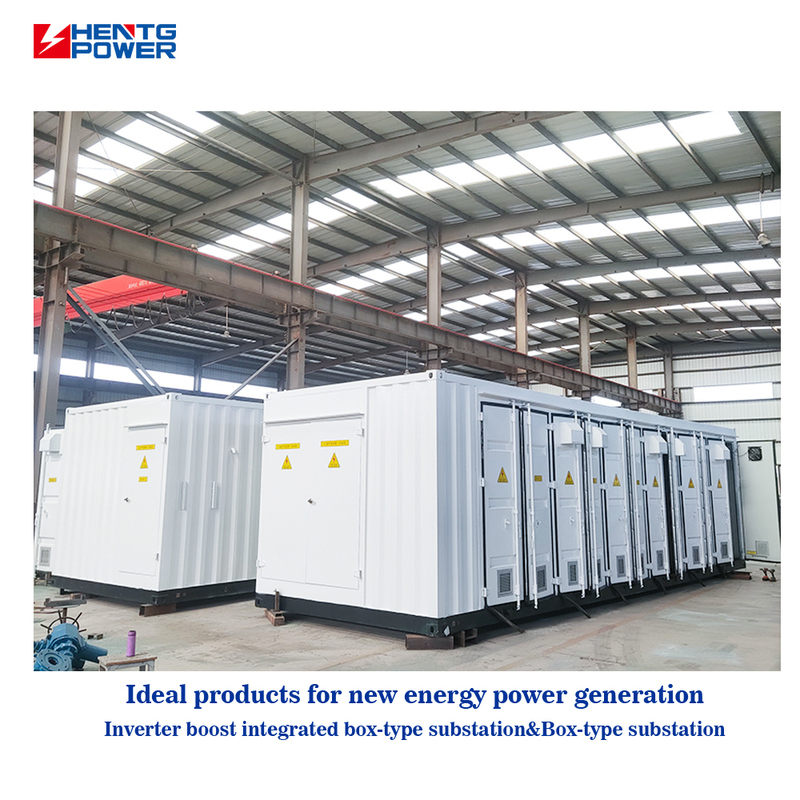

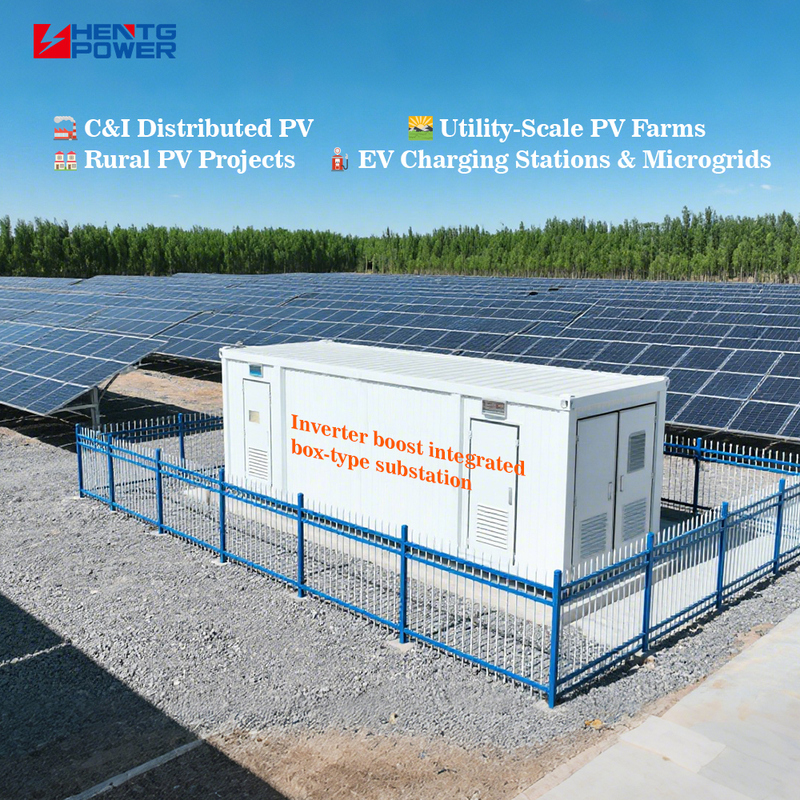

The inverter-boost integrated box-type substation is an intelligent all-in-one solution specially designed for photovoltaic (PV) power generation systems. It integrates DC-to-AC inversion and AC voltage boosting in one unit, significantly reducing installation cost and energy loss while enhancing system stability and power quality.
| Feature | Advantage | Benefit |
|---|---|---|
| Integrated Design | Combines inverter, transformer, and HV distribution | Fewer devices, saves space and installation time |
| Modular Structure | Standardized components for quick delivery and easy O&M | Lower O&M costs, higher reliability |
| High-efficiency Inverter | >98.5% conversion efficiency | Minimizes power loss, improves energy conversion |
| Smart Monitoring System | Real-time monitoring & remote control | Efficient management and fault alerts |
| Comprehensive Protection | Over-voltage, over-current, short-circuit protection | Ensures safe operation for equipment and personnel |
| All-weather Adaptability | IP54 rating, works in harsh environments | Applicable in deserts, plateaus and more |

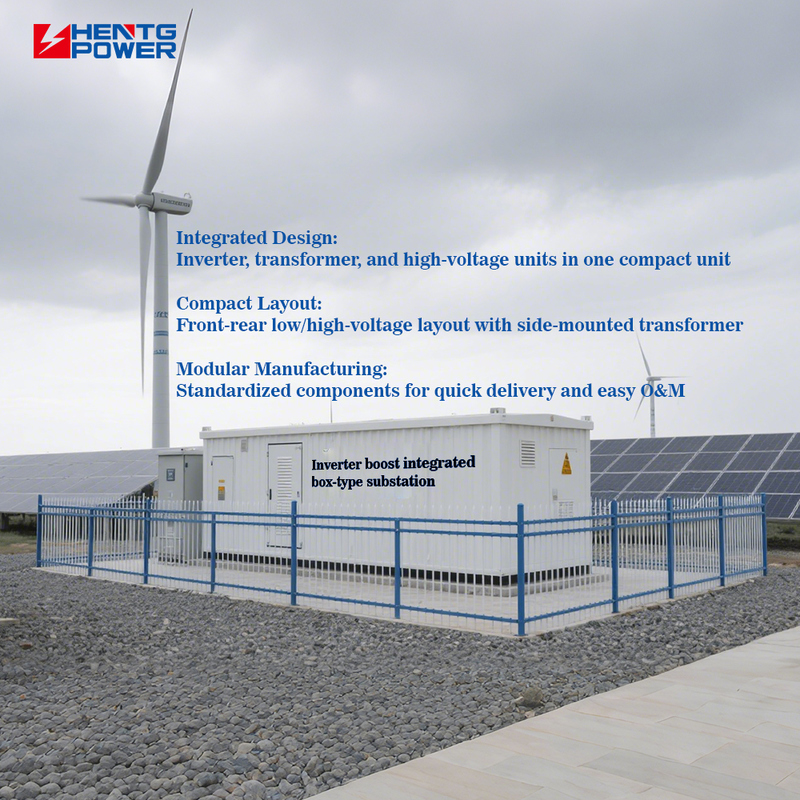

- Integrated Design: Inverter, transformer, and high-voltage units in one compact unit
- Compact Layout: Front-rear low/high-voltage layout with side-mounted transformer
- Modular Manufacturing: Standardized components for quick delivery and easy O&M
- IP64 Protection: Safe for outdoor use, suitable for various environments
-
