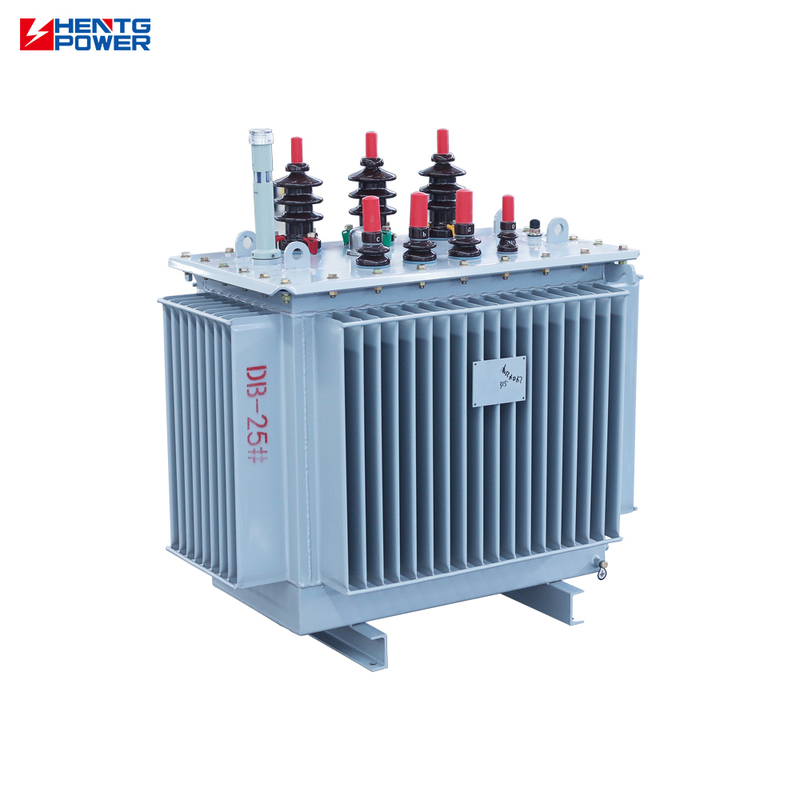

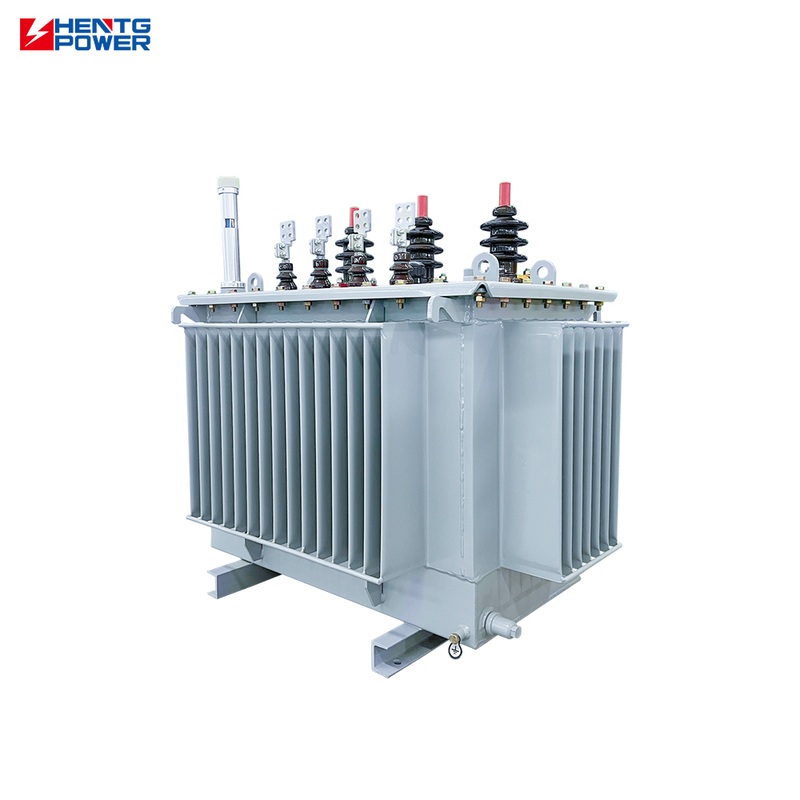

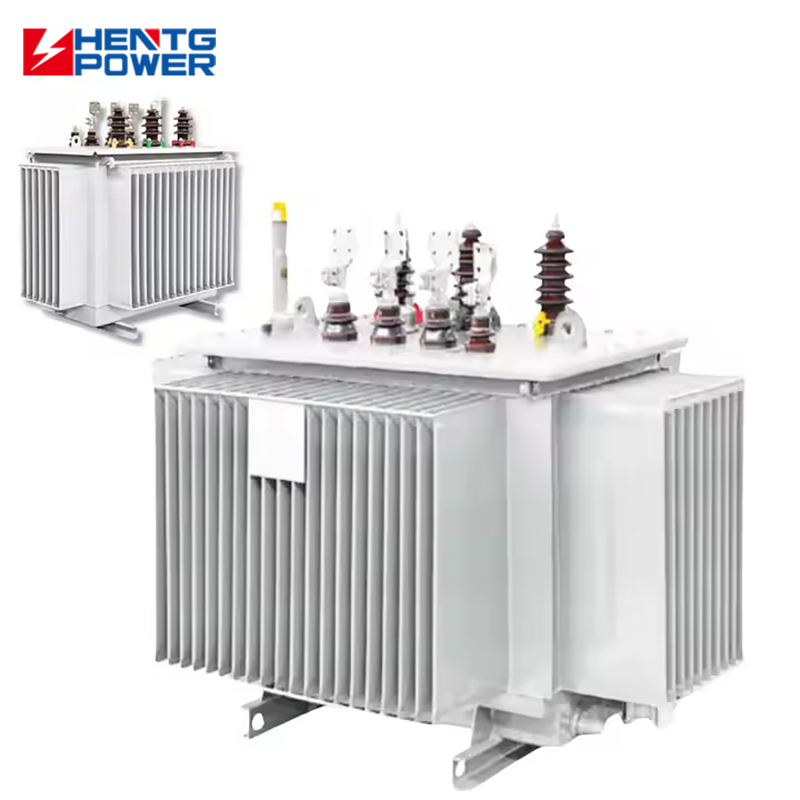

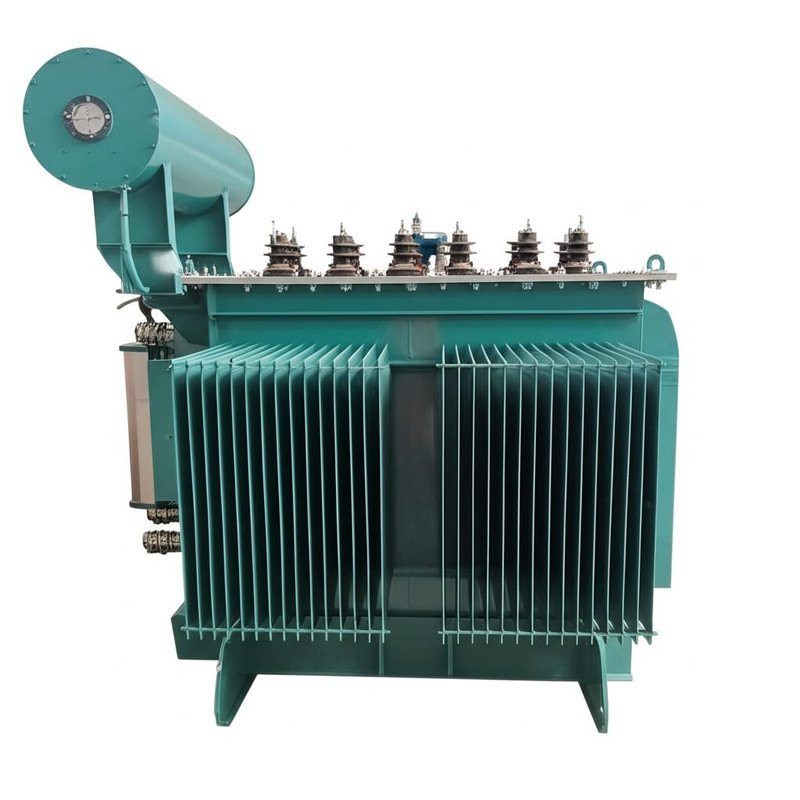

Custom Step Down 22kV Oil Immersed Power Transformer with IP00-IP65 Protection and Layered Winding for Industrial Use

22kV Oil Immersed Transformer

IP00-IP65 Power Transformer

Layered Winding Distribution Transformer

Place of Origin:

China

Brand Name:

HENTG Power

Certification:

Model Number:

S13

Chat Now

Request A Quote

Product Details

Voltage Range:

Hv 110+-8X1.25%

Vector Group:

Dyn11/Yzn11

Winding Material:

Copper/Aluminum

Power Rating:

1kVA-100MVA

Package:

Wooden Case

Rated Power:

5kVA-50000kVA

Cooling:

ONAN/ONAF

Voltage:

6.6kv-35kv

Frenquency:

50Hz

Winding:

Cu/copper

Protection Level:

IP00-IP65

Rated Voltage:

30-2500KV

Insulation Class:

A/B/F/H

Usage:

Power,Distribution Transformer

Products Name:

3 Phase Transformer

Highlight:

22kV Oil Immersed Transformer

IP00-IP65 Power Transformer

Layered Winding Distribution Transformer

Payment & Shipping Terms

Minimum Order Quantity

Delivery Time

Payment Terms

T/T

75kVA 3 Phase Oil Immersed Step Down Transformer with 110V Output for American Standard Power Distribution

Chat Now

Video

50Hz Frequency Oil Immersed Type Transformer 50kVA-800kVA 3 Phase 110V 380V 220V Output

Chat Now

Video

3 Phase Oil Immersed Distribution Transformer 100kVA 160kVA 250kVA Variable Transformer

Chat Now

Video

250KVA 10/0.4KV Oil Immersed Three Phase Distribution Transformer

Chat Now

+86-15074989773

info@hentgpower.com

Chat Now

Product Description

Custom Step Down Three Phase Oil Immersed Transformer

MV/HV Industrial Power Transformer 500kVA 22kV

This high-performance three-phase oil-immersed transformer is designed for reliable power distribution in industrial and utility applications, offering efficient energy transformation across various voltage levels.

Key Specifications

Attribute	Value
Type	Power transformer, distribution transformer, Oil-filled Transformer
Frequency	50Hz, 60Hz
Winding Material	Aluminum
Application	Power Distribution System
Phase	Three
Coil Structure	Layered Winding
Coil Number	Multi-winding coil
Input Voltage	3kV, 6kV, 10kV, 15kV, 35kV, 69kV, 110kV, 220kV, 400kV, 115kV, 132kV
Output Voltage	5V, 400V, 208V, 200V, 415V, 127V, 11kV, 12V, 24V, 48V, 110V, 220V, 36V, 380V, 440V, 480V, 9V
Cooling Method	ONAN ONAF OFAF
Vector Group	Dyn11/Yyn0

Technical Parameters

S20 Type Energy-Efficient Secondary Oil-Immersed Transformer

Rated Capacity (KVA)	Vector Group	Voltage Combination	HV	Tapping Range	LV	Loss (W)	Impedance (%)
30	Yyn0 / Dyn11	10 6.3 6	±5% ±2X2.5%	0.4	70	505 \| 480	4.0
50					90	730 \| 695
63					100	870 \| 830
80					115	1050 \| 1000
100					135	1265 \| 1200
125					150	1510 \| 1440
160					180	1850 \| 1760
200					215	2185 \| 2080	4.5
250					260	2560 \| 2440
315					305	3065 \| 2920
400					370	3615 \| 3440
500					430	4330 \| 4120
630					510	4960 \| 4960
800					630	6000 \| 6000
1000					745	8240 \| 8240	5.0

Application Scenarios

This three-phase oil-filled distribution transformer is engineered for power distribution systems requiring reliable energy transformation at various voltage levels. Its robust construction and efficient design make it ideal for:

Industrial power distribution networks
Commercial facility power systems
Utility power distribution applications
HV/MV power transmission systems
