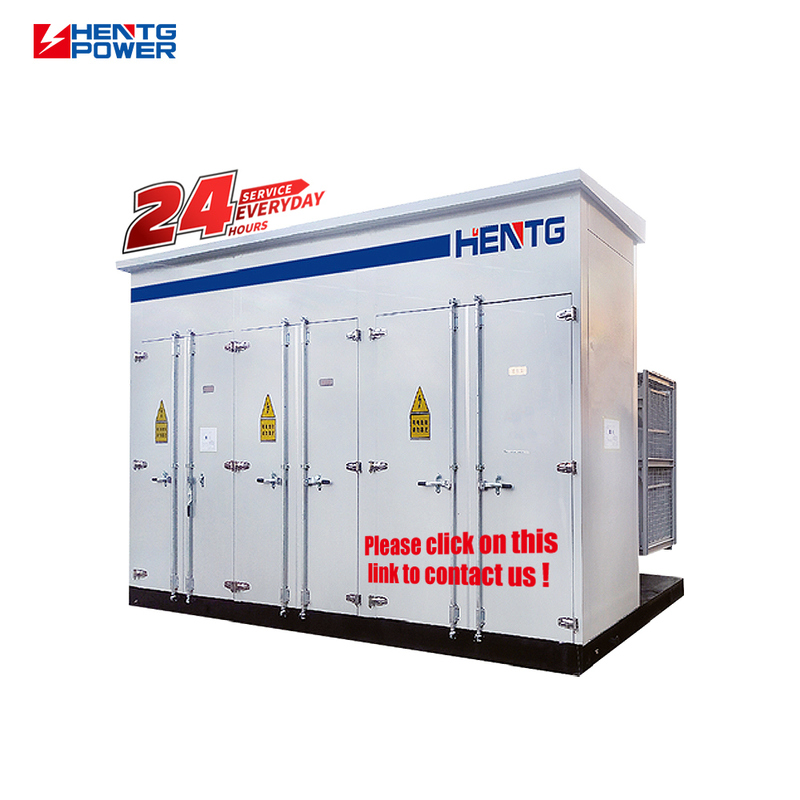

HENTG Power CE Certified 220kV 50Hz 5000kVA Box Type Compact Substation for Renewable Energy
Product Summary
HENTG Power CE Three Phase 3KV 220KV 480V 50Hz Prefabricated Box Type Compact Substation Transformer Renewable Energy HENTG Power CE Prefabricated Substation: Rapid Grid Integration for Renewable Energy Accelerate your solar or wind farm connection with our fully pre-assembled and tested compact ...
Key Attributes
Brand Name:
HENTG Power
Certification:
CE
MOQ:
1
Product Custom Attributes
Highlight
220kV Box Type Substation
,50Hz Compact Substation
,5000kVA Prefabricated Substation
Usage:
Power,Instrument,power Grid System,High Frequency,Distribution Transformer
Coil Number:
Autotransformer,Three,2,1-6,double Winding
Phase:
Three,Single,Single Or Three Phase
Coil Structure:
Toroidal,YNyn0d11,Other
Frequency:
50/60Hz,50Hz Or 60Hz
Rated Capacity:
30-3000kva,315,63,3000,250
Standard:
IEC60076,IEC Standards,ANCI,DIN,GB1094-1996
Type:
Oil Immersed,Oil Type,oil Immersed Current Transformer 132kv,Wound Core Oil-immersed,Oil-immersed
Rated Voltage:
35KV,13.2KV,10KV,6.3KV,22KV
Product Name:
Power Distribution Transformer,33/11 Kv 50/60Hz 5000Kva Oil Immersed Power Distribution Transformer,66KV Oil-immersed Power Transformers,Oil Type Power Transformer,22kv Oil Immersed Distribution High Voltage 5 Mva Power Transformer
Material:
Copper,Alumnium Or Copper,Copper+alumnium
Output Voltage:
15kv 10 Kv 0.4/0.69kv,0.415kv,13.8kv,0.4/0.23kV,200v/220/240/380v/400v/415v/440v
Vector Group:
Dyn11,Dyn5,Yyno Or Others,Dyn11/Yzn11,Dyn11 / Yyn0
Cooling Method:
Oil Natural,ONAN,Oil Cooling
Winding Material:
Cooper
Name:
Oil Immersed Distribusion Transformer,On-load Voltage Regulation Transformer,132kv Current Transformer,33kv Oil Immersed Electrical Ct Current Transformer Factory
Color:
Brown,Gull Grey
Input Voltage:
Customized Product,11kv/10.5kv/10kv/6.3kv/6kv,5-35kV
Advantage:
Best Price & Best Quality In China
Product Description
HENTG Power CE Three Phase 3KV 220KV 480V 50Hz Prefabricated Box Type Compact Substation Transformer Renewable Energy
HENTG Power CE Prefabricated Substation: Rapid Grid Integration for Renewable Energy
Accelerate your solar or wind farm connection with our fully pre-assembled and tested compact substation. Designed for high-voltage (up to 220kV) input and low-voltage (480V) output, it slashes installation time and civil work costs by over 50%. Achieve a faster ROI with this 'plug-and-play' power hub, fully CE certified for guaranteed safety and performance.
CE Certified Compact Substation for Industrial & Utility Applications 3kV-220kV
Ensure grid compliance and operational reliability with HENTG Power's Prefabricated Box Type Substation. Engineered to international standards (CE), this robust, three-phase solution is built for demanding environments. Its sealed design protects critical components, making it the ideal, maintenance-efficient choice for utility upgrades, industrial power supply, and renewable energy integration.
Prefabricated Transformer Substation 50Hz Ready for Global Projects
Streamline your power distribution with HENTG's versatile compact substation. Offering flexible voltage transformation between 3kV and 220kV, this all-in-one solution is pre-configured for 50Hz grids, ensuring seamless deployment worldwide. Maximize value by minimizing on-site labor, construction risks, and project timelines for a truly efficient energy infrastructure investment.
Technical Specifications
- Frequency: 50 Hz, 60 Hz
- Input Voltage: 6 kV, 6.6 kV, 10 kV, 6.3 kV, 11 kV, 10.5 kV, 12.47 kV, 35 kV, 69 kV, 110 kV
- Output Voltage: 220 V, 380 V, 400 V, 415 V, 440 V, 480 V, 10 kV
- Phase: Three
- Brand Name: HENTG Power
- Place of Origin: Jiangsu, China
- Coil Structure: Shell-Type Coil, Layer Coil, Fully Sealed Construction, Disc Coil, Round Coil
- Type: Isolation Transformer, Voltage Regulator Transformer, Dry Type Transformer, Autotransformer, Field Adjustable Transformer, Oil-Immersed Transformer, Dual Winding Transformer
- Application: Distribution System
- Type: Box Substation
- Cooling Method: ONAN ONAF
- Vector Group: Dyn11/Yyn0/Yd11/YNd11
- Certification: CE / ISO9001
- Winding Material: Copper Aluminum

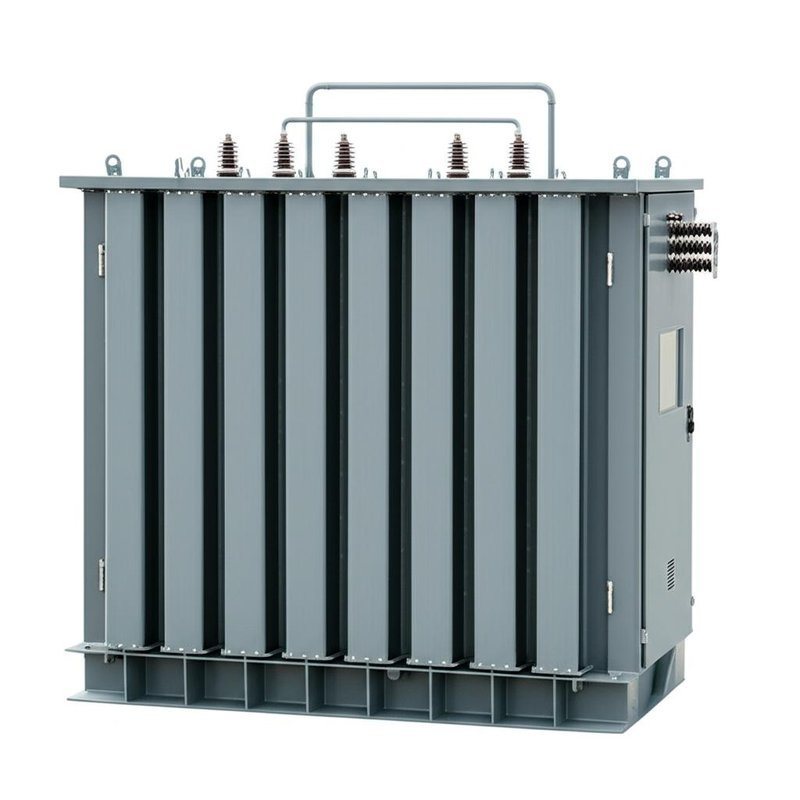

Pad Mounted Substation
Product Parameters
| Item | Parameter | No | Item | Parameter |
|---|---|---|---|---|
| Basic Technical Parameters | 2 | Insulation & Thermal Classes | ||
| Type & Model | S11-5000-33/0.69 | Insulation Level | Class A | |
| Rated Capacity | 5000kVA | a | High-Voltage Side | |
| Rated Voltage(HV / LV) | 33kv/0.69kv | Lightning Impulse Withstand(peak) | 200kv | |
| Rated Current(HV / LV) | 87.5A /4183.7 A | Short-Duration Power-Frequency Withstand(r.m.s.) | 85kv | |
| Voltage Ratio | ±2 × 2.5 % | Lightning Impulse Withstand (peak) | ||
| Short-Circuit Impedance | 7% | Short-Duration Power-Frequency Withstand (r.m.s.) | 5kv | |
| Vector Group | Dyn11 | |||
| Rated Frequency | 50Hz | |||
| Cooling Method | ONAN | |||
| Losses, Noise & No-Load Current | 4 | Other Technical Requirements | ||
| No-Load Loss | ≤ 3970W (+15%) | 4 | Overall Dimensions (L × W × H) | 2650 mm × 2900 mm × 2750 mm |
| Load Loss | ≤ 39018W (+15%) | b. | Estimated Total Mass | 10.7t |
| Sound Pressure Level | ≤ 77 dB(A) | |||
| No-Load Current | 0.50% |

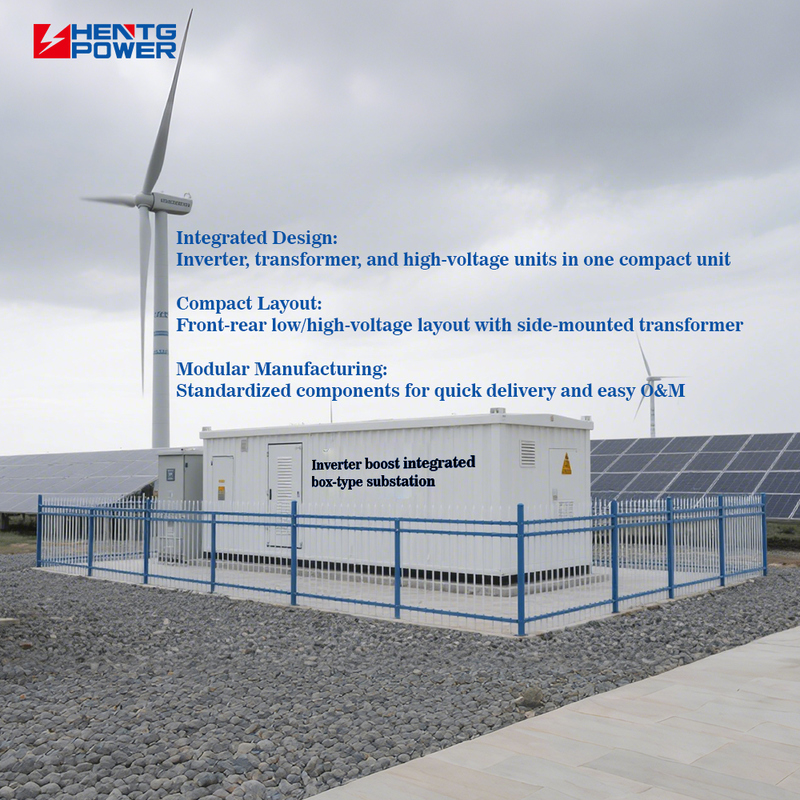

Inverter Boost Integrated Box-Type Substation

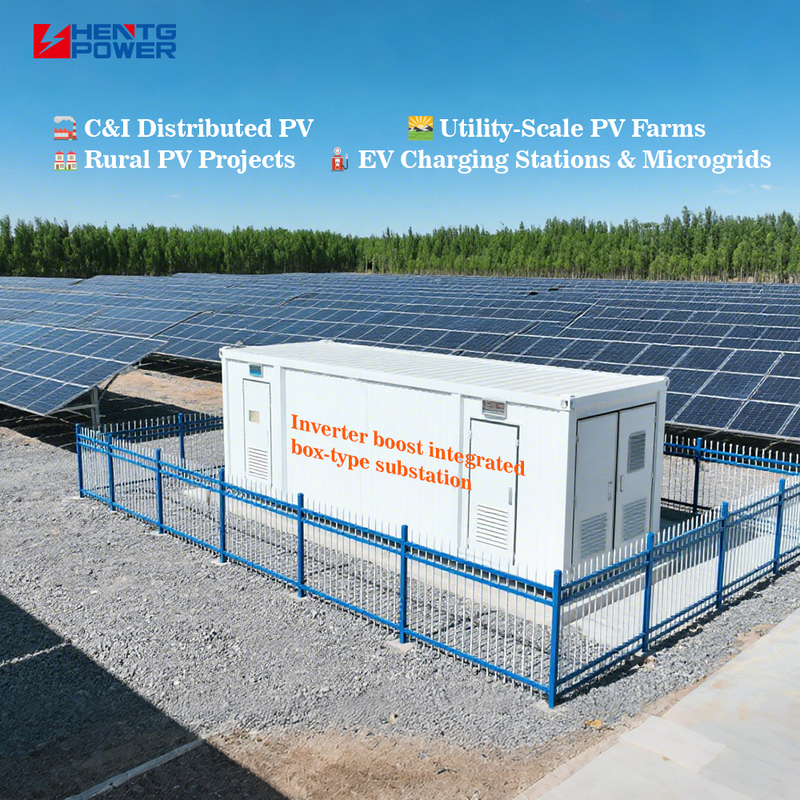

The inverter-boost integrated box-type substation is an intelligent all-in-one solution specially designed for photovoltaic (PV) power generation systems. It integrates DC-to-AC inversion and AC voltage boosting in one unit, significantly reducing installation cost and energy loss while enhancing system stability and power quality.
-
Power Prefabricated Box Type Substation for Solar Wind Compatible 50/60Hz Three-Phase MV&HV Transformers Renewable Energy
Product characteristics Vacuum circuit breaker or load switch + fuse (combined electrical appliancetechnical solution can be used on the high voltage side of Huashi box. The electricalcharacteristics of the combined electrical structure is that when any phase fuse isblown, the load switch will be ...
-
