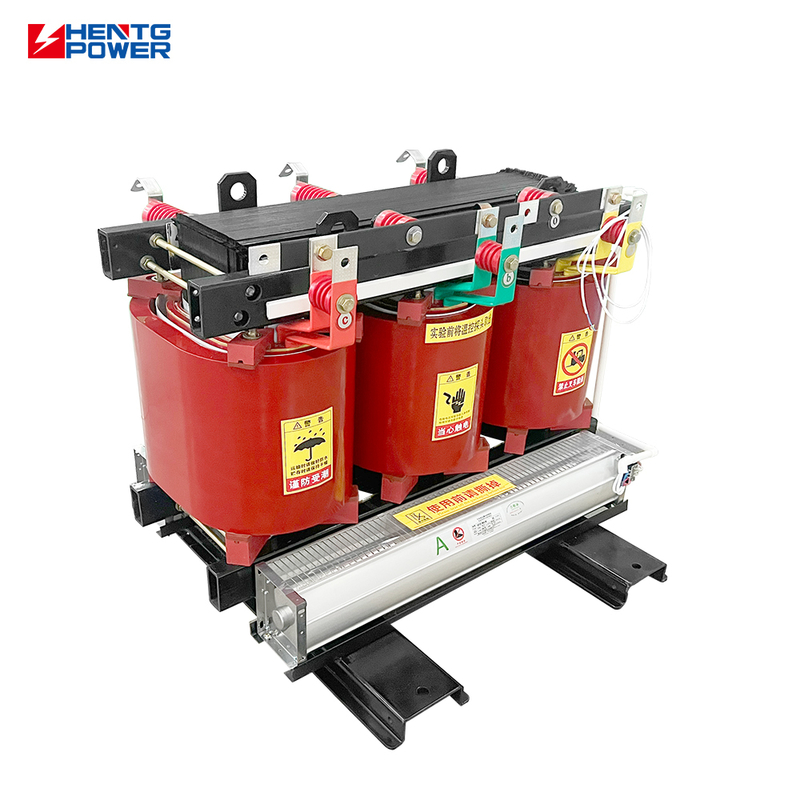

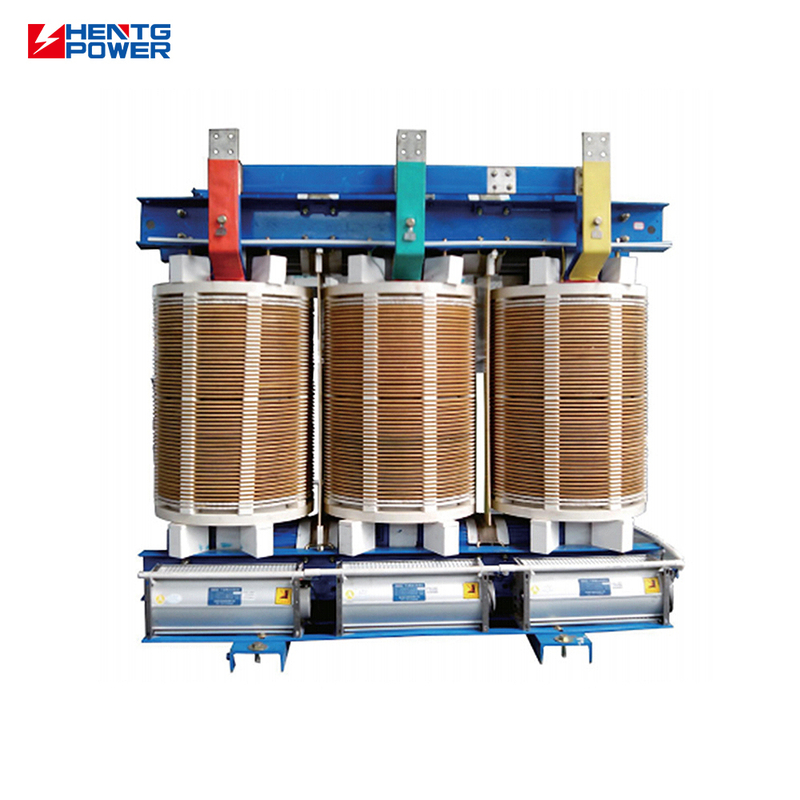

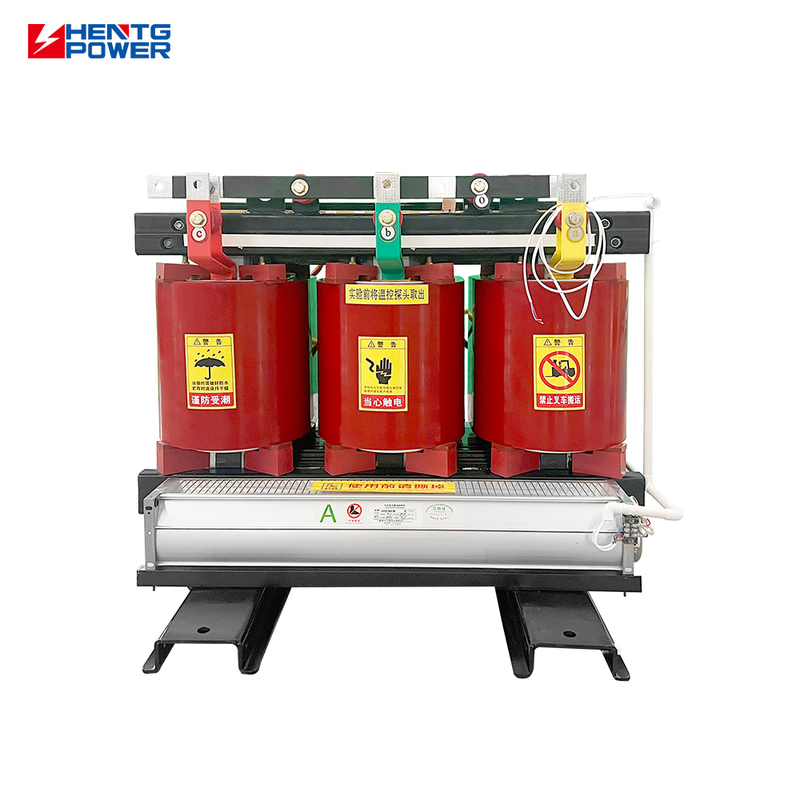

1600kVA Dry Type Transformer 3 Phase 60Hz Dyn11
1600 KVA Dry Type Transformer 3 Phase Step Down Distribution Transformer High Voltage Insulation System OEM High Quality Epoxy Resin Dry-Type transformers1600kva 2000kva 2500kva 60hz Key Specifications Frequency: 60Hz Phase: Three Output Voltage: 415V, 110V, 220V, 380V, 400V, 440V, 480V Input ...
1600kVA dry type transformer Dyn11
,3 phase dry type transformer 60Hz
,Dyn11 dry type transformer with warranty
1600kva 2000kva 2500kva 60hz
- Safe, fireproof, pollution-free, maintenance free
- Low loss, low noise, significant energy-saving effect
- High mechanical strength, strong short-circuit resistance, good thermal stability, and long service life
- Good heat dissipation performance, strong overload capacity, and can operate for a short period of time under forced air cooling
- Has certain moisture resistance and can operate in harsh environments with high humidity
| Rated capacity (KVA) | Vector Group | Voltage Combination | No-load loss | Load loss | No-load current | Impedance |
|---|---|---|---|---|---|---|
| 30 | Yyn0 / Dyn11 | 10 6.3 6 | 135 | 640 | 2 | 4.0 |
| 50 | 195 | 900 | 2 | |||
| 80 | 265 | 1240 | 1.5 | |||
| 100 | 290 | 1410 | 1.5 | |||
| 125 | 340 | 1660 | 1.3 | |||
| 160 | 385 | 1910 | 1.3 | |||
| 200 | 445 | 2270 | 1.1 | |||
| 250 | 515 | 2480 | 1.1 | |||
| 315 | 635 | 3120 | 1 | |||
| 400 | 705 | 3590 | 1 | |||
| 500 | 835 | 4390 | 1 | |||
| 630 | 965 | 5290 | 0.85 | 6.0 | ||
| 630 | 935 | 5360 | 0.85 | |||
| 800 | 1090 | 6260 | 0.85 | |||
| 1000 | 1270 | 7310 | 0.85 | |||
| 1250 | 1500 | 8720 | 0.85 | |||
| 1600 | 1760 | 10500 | 0.85 | |||
| 2000 | 2190 | 13000 | 0.7 | |||
| 2500 | 2590 | 15400 | 0.7 |
-
