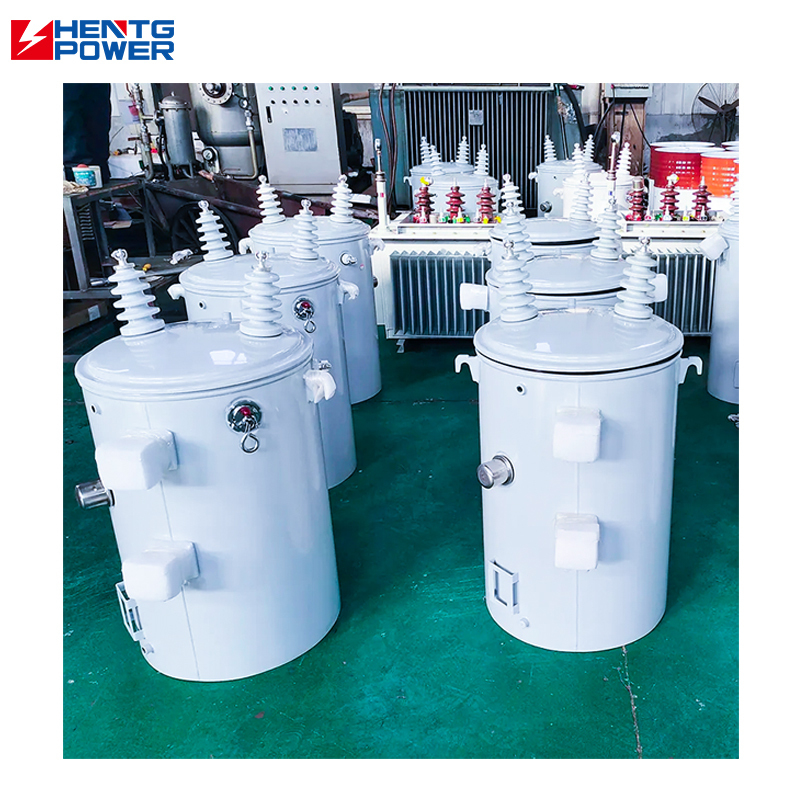

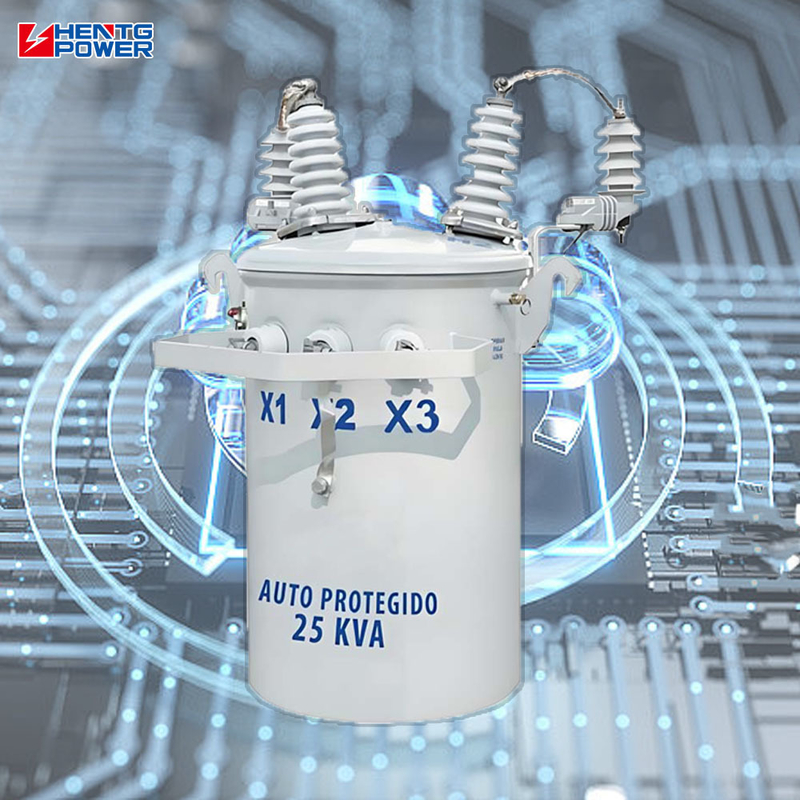

Single Phase Pole Mounted Transformer 75KVA 167KVA
High Quality Factory Price Single Phase Pole-mounted Transformer 75KVA 167KVA Premium Quality Industrial Transformer Designed for reliable power distribution in utility and industrial applications, our pole-mounted transformers deliver exceptional performance with factory-direct pricing. This single-phase pole-mounted transformer is engineered to provide safe, reliable, and efficient voltage transformation from high-voltage overhead lines to low-voltage networks. With
75KVA single phase pole transformer
,167KVA pole mounted transformer
,single phase transformer with warranty
Designed for reliable power distribution in utility and industrial applications, our pole-mounted transformers deliver exceptional performance with factory-direct pricing.
- Single-phase design for efficient power distribution
- Available in 75KVA and 167KVA capacity options
- Pole-mounted configuration for space-saving installation
- Factory-direct pricing ensures cost-effectiveness
- Robust construction for long service life
- Designed for outdoor utility applications
- Minimal maintenance with long service life
| Parameter | Specification |
|---|---|
| Transformer Type | Single Phase Pole Mounted |
| Rated Capacity | 75kVA – 167kVA |
| High Voltage (HV) | 11kV / 22kV (customizable) |
| Low Voltage (LV) | 0.4kV / 400V |
| Frequency | 50Hz |
| Cooling Method | ONAN (Oil Natural Air Natural) |
| Insulation | Oil-immersed |
| Mounting | Pole Mounted |
| Tap Changer | ±2 × 2.5% (optional) |
| Protection | Lightning arrester, fuses |

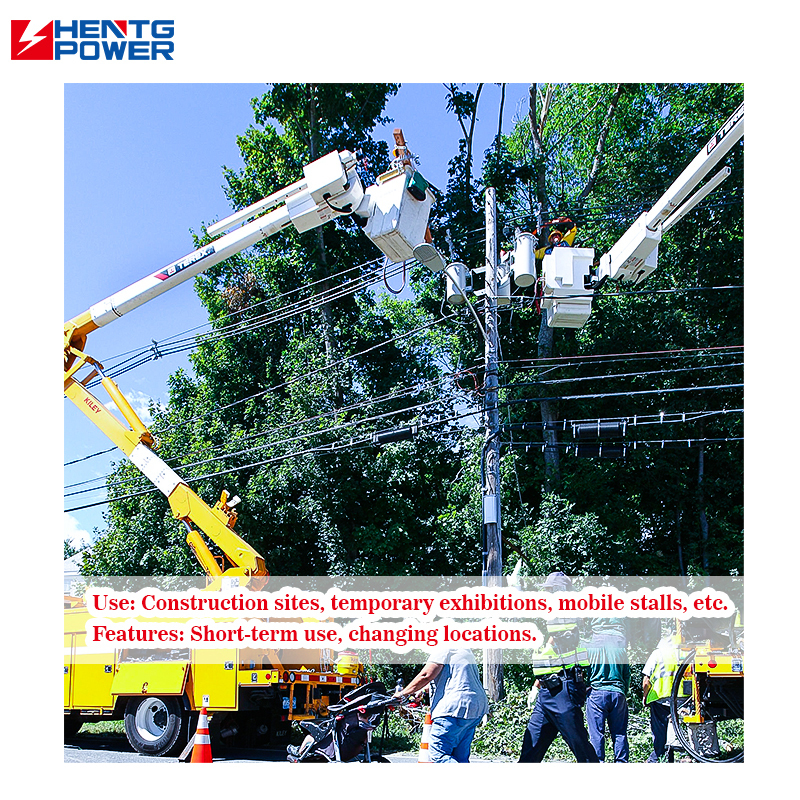

Applications- Rural and urban electricity distribution
- Residential neighborhoods
- Light commercial loads
- Renewable energy systems (solar, mini-hydro)
- Easy installation and maintenance on poles
- Reliable operation under high ambient temperatures
- Cost-effective solution for medium voltage distribution
This single-phase pole-mounted transformer offers a reliable, energy-efficient, and durable solution for all your distribution needs. Perfect for utilities, developers, and renewable energy projects seeking high-quality power distribution equipment.
-
Industrial Grade Pole Mounted Electrical Power Transformer 15kVA-100kVA 60Hz Frequency
Industrial Grade Pole Mounted Electrical Power Transformer 15kVA-100kVA 60Hz Frequency Product Specifications Attribute Value Frequency 60Hz Phase Single Phase Application Power Transformer Output Voltage 110V, 220V, 380V, 400V, 440V, 480V Input Voltage 11kV, 10.5kV, 3kV, 6.6kV, 6.3kV, 35kV, 12.47kV, 6kV Type Pole Mounted Transformer Standard DOE/IEC60076/IEEE Warranty 2 Years Vector Group Dyn11/Yyn0/Yd11/YNd11 MOQ 1 Set Usage Outdoor Power Line Operation Customized Accept
-
60Hz Single Phase Pole Mounted Transformer 75kva 100kva 120V/240V
60Hz Single Phase Pole Mounted Transformer 75kva 100kva 120V/240V Product Specifications Attribute Value Frequency 60Hz Phase Single Phase Application Power Transformer Output Voltage 110V, 220V, 380V, 400V, 440V, 480V Input Voltage 11kV, 10.5kV, 3kV, 6.6kV, 6.3kV, 35kV, 12.47kV, 6kV High Voltage 6KV/6.6KV/10KV/10.5KV/11KV Low Voltage 120-240/240-480/347/600V Rated Capacity 10KVA-500KVA Vector Group Dyn11/Yyn0/Yd11/YNd11 Standard DOE/IEC60076/IEEE Warranty 2 Years MOQ 1 Unit
-
50kVA 100 Kva Pole Mounted Transformer Single Phase Oil Immersed Transformer IP65 Class
50kVA 100 Kva Pole Mounted Transformer Single Phase Oil Immersed Transformer IP65 Class Product Specifications Attribute Value Frequency 50Hz, 60Hz, 50/60Hz Phase Single Phase Application Power Transformer Output Voltage 110V, 220V, 380V, 400V Input Voltage 6.6kV, 12.47kV, 3kV, 6.3kV, 6kV Type Oil-Immersed Transformer Rated Capacity 25-250kVA Cooling Method Dry Type Insulation Class Class A Protection Class IP65 Winding Material Copper Operating Temperature 40°C Mounting Type
