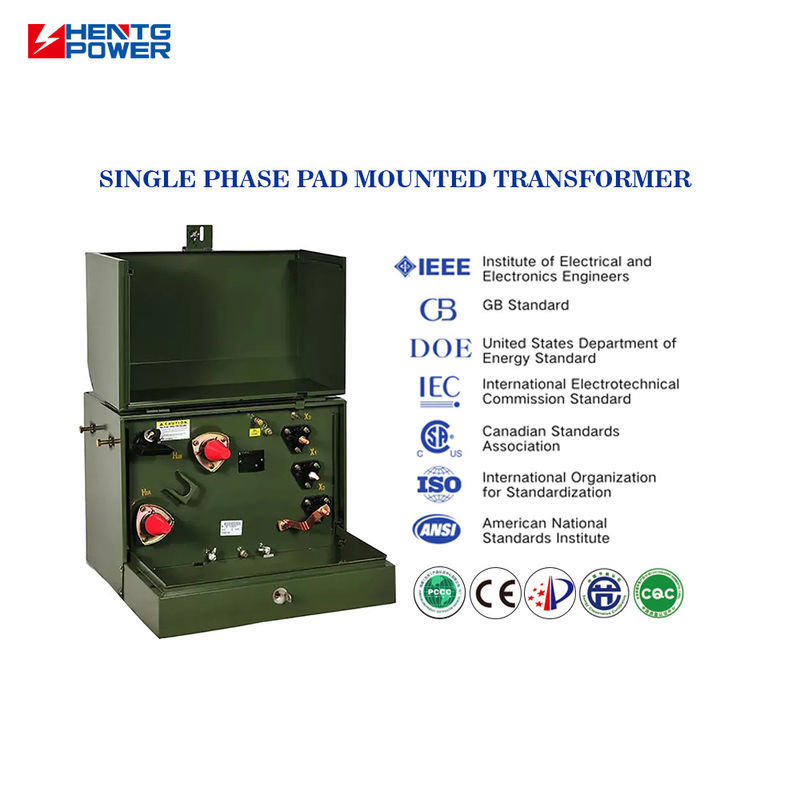

75kVA One Phase Power Transformer Pad Mounted With Output Voltage ONAN Cooling
75kVA One Phase Power Transformer Pad Mounted With Output Voltage ONAN Cooling Product Overview 75kVA Power Transformer Single Phase Pad Mounted Transformer with 9V Output Voltage and multiple input voltage options (6KV, 10KV, 132KV). Designed for reliable power distribution with high efficiency and ...
9V Output Voltage Power Transformer
,One Phase Power Transformer Pad Mounted
,ONAN Cooling One Phase Power Transformer
75kVA Power Transformer Single Phase Pad Mounted Transformer with 9V Output Voltage and multiple input voltage options (6KV, 10KV, 132KV). Designed for reliable power distribution with high efficiency and safety features.
- Fully Sealed Oil-Immersed Construction for underground and above-ground distribution
- Single Phase Operation, 60Hz / 50Hz Compatible for global applications
- Pad-Mounted Cabinet Design with tamper-proof lockable cabinet and separate HV/LV compartments
- Mineral Oil Insulation and Cooling (ONAN) for reliable thermal performance
- High reliability with long service life and better performance than traditional transformers
- Low noise operation suitable for residential areas and noise-sensitive locations
- Modular structure for convenient maintenance and flexible configuration options
| Capacity (KVA) | HV | Tapping Range | LV | No-load Loss | Load Loss | Efficiency |
|---|---|---|---|---|---|---|
| 75 | 2400-34500V | ±2X2.5% | 110-690V | 130 | 850 | 99.19% |

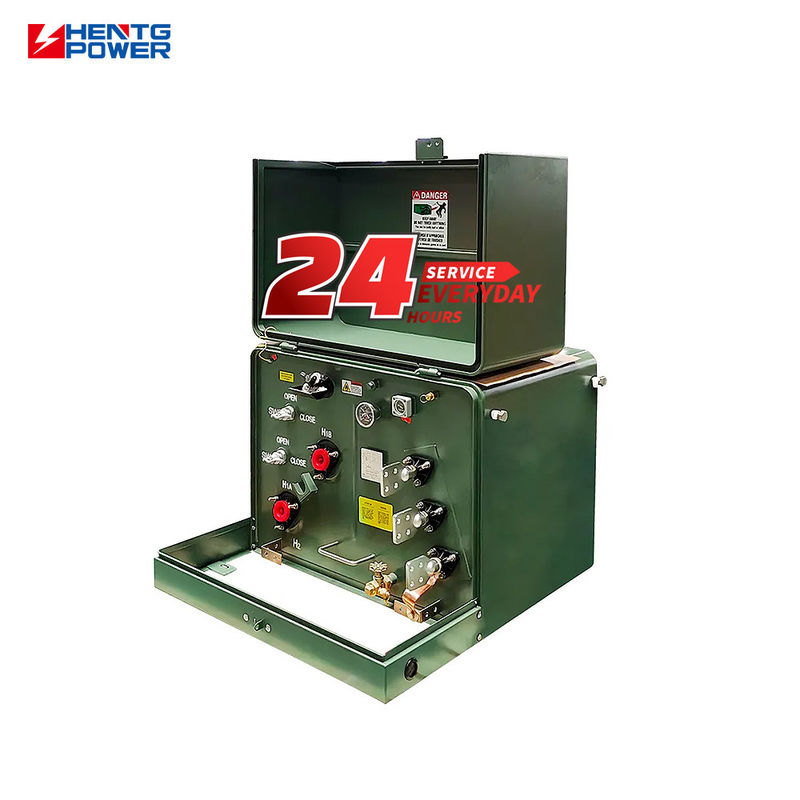

The single-phase pad-mounted transformer features a clamshell cabinet design for easy access to connections. Its versatile design allows for various protection and switching configurations, providing multi-service options while meeting the reliability and safety requirements of any distribution system.
- Ground installation suitable for residential areas and commercial parks
- Fully sealed design with NEMA 3R protection level
- Equipped with grounding ring, anti-misoperation interlock, and overcurrent protector
- High/low voltage compartments separation design ensures operational safety
- Customizable shell, switch, and protection functions according to user needs
We respond within 1 hour with suitable transformer recommendations, competitive quotations, and payment terms. Our technical team confirms all drawing details within 7 days after payment, including technical data, weight, and parts list.
After finalizing drawings, we prepare stock, produce, and conduct rigorous quality inspections. We provide QC reports and test reports, with raw materials strictly screened for quality assurance.
Our professional team provides installation guidance and on-site support. All products come with more than 2 years of warranty service.
HENTG POWER is a professional designer, manufacturer and installer of power system solutions founded in 2011, specializing in reliable, high-performance solutions for global power systems.
We conduct pre-production sampling, final inspections before shipment, and provide QC & test reports. We accept Factory Acceptance Tests (FAT) and manufacture to ANSI/IEEE/DOE2016/CSA/IEC60076 standards.
We have professional drawing and technical teams that confirm drawings within 7 days, with 30+ senior engineers offering 24/7 support and 30-minute response times.
We accept OEM orders and negotiate business payment terms to meet customer requirements.
Our products comply with GB 20052-2024 and IEC 60076 standards and are widely used in global markets across various applications including:
- Oil-immersed transformers
- Dry-type power transformers
- SH15 and SCBH15 amorphous alloy transformers
- YB prefabricated substations
- ZGS modular substations
- Transformers for new energy systems
- Custom-engineered specialty transformers
-
