High Voltage 25KVA Power Transformer Industrial Step Down Step Up Distribution Transformer
High Voltage 25KVA Power Transformer Industrial Step Down Step Up Distribution Transformer Product Specifications Attribute Value Type Distribution transformer, Oil-filled Transformer Material Copper, Aluminum, Frequency 50Hz, 60Hz Phase Single Phase Coil Structure Wound Coil Input Voltage 3kV, 6kV, ...
15kva oil filed transformer
,15kva single phase pad mounted transformer
,high voltage oil filed transformer
| Attribute | Value |
|---|---|
| Type | Distribution transformer, Oil-filled Transformer |
| Material | Copper, Aluminum, |
| Frequency | 50Hz, 60Hz |
| Phase | Single Phase |
| Coil Structure | Wound Coil |
| Input Voltage | 3kV, 6kV, 10kV, 15kV, |
| Output Voltage | 110V, 220V, 380V, 440V, 480V |
| Rated capacity | 15~75KVA |
| Vector Group | Dyn1/Yyn0 |
- Bayonet-style fuse protection
- Pressure relief valve & liquid level gauge
- Surge arrester mounting brackets
- Stainless steel cabinet or marine paint
- Pad mounting base or lifting lugs
- Residential Distribution (Backyard/Sidewalk Transformers)
- Commercial & Light Industrial Buildings
- Shopping Centers & Office Parks
- Urban Utility Networks
- Renewable Projects (Solar Power)
| Capacity (KVA) | HV | Tapping range | LV | No-load loss | Load loss | Dimension(mm) | Efficiency |
|---|---|---|---|---|---|---|---|
| 15 | 2400-34500 | ±2X2.5% | 110-690 | 60-150 | 330-1150 | 610-840 | 98.82% |

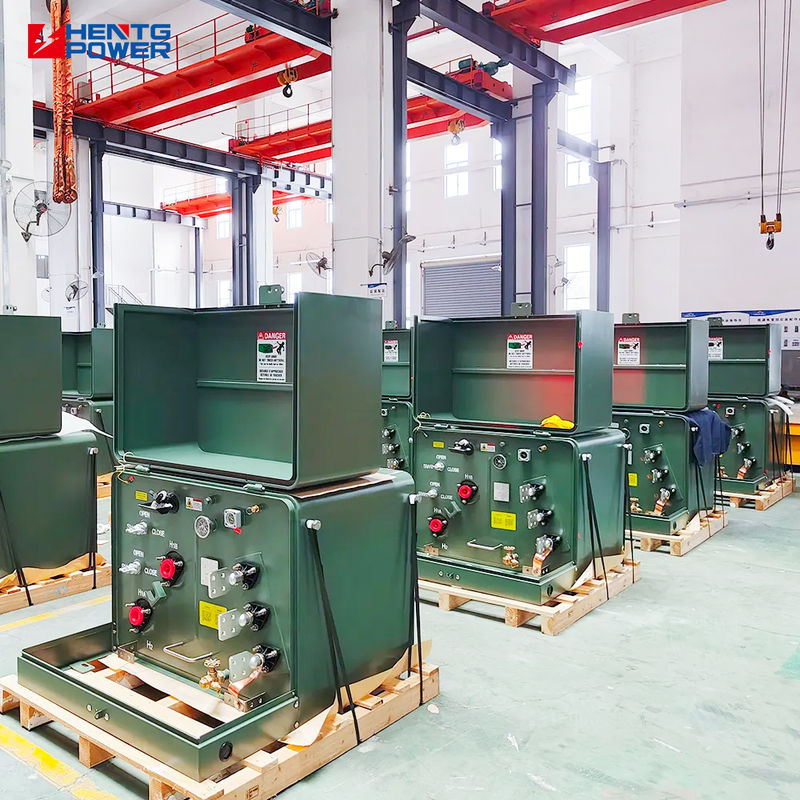

Single-phase pad-mounted transformer features a clamshell cabinet design for easy access to connections. The versatile design allows for various protection and switching configurations, meeting the reliability and safety requirements of any distribution system.
Key advantages:
- High reliability with long service life
- Fully enclosed design for safety and protection
- Low noise operation suitable for residential areas
- Modular structure for convenient maintenance
- Customizable configurations to meet specific needs
Step 1: We respond within 1 hour with recommendations and quotations. Our technical team will confirm all drawing details within 7 days after payment. Click here to consult.
Step 2: After design approval, we conduct quality inspections and provide QC & test reports before shipment.
Step 3: We provide installation guidance and support, plus over 2 years warranty service. Start your order now.
HENTG POWER is a professional designer, manufacturer and installer of power system solutions since 2011, specializing in reliable, high-performance solutions for global power systems.
We conduct pre-production samples, final inspections, and provide QC & test reports. We manufacture oil and dry type distribution transformers up to 500KV 480MVA, following ANSI/IEEE/DOE2016/CSA/IEC60076 standards.
We have professional drawing and technical teams with 30+ senior engineers offering 24/7 support with 30-minute response times.
We accept OEM orders and negotiate business payment terms.
-
