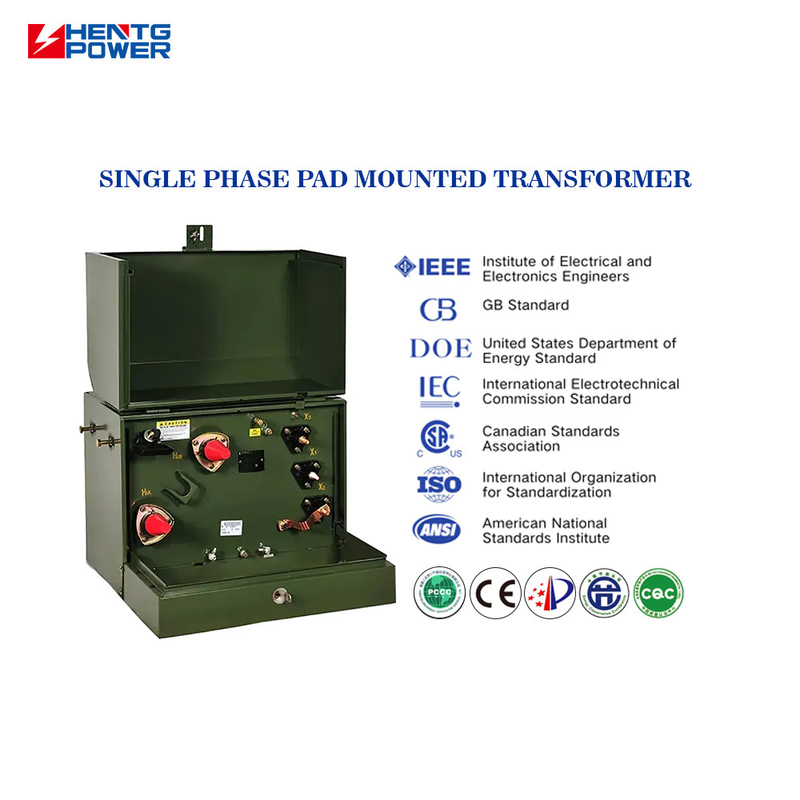

High Frequency Single Phase Pad Mounted Transformer 50 Kva Silicon Core Electric Power Transformer
High Frequency Pad Mounted Transformer 50 Kva Silicon Core Electric Power Transformer Product Specifications Attribute Value Type Distribution transformer, Oil-filled Transformer Material Silicon steel sheet, Aluminum Frequency 50Hz, 60Hz Shape Rectangle Winding Material Aluminum Application Power Coil Number Dual-winding coil Input Voltage 3kV, 6kV, 10kV, 15kV Output Voltage 110V, 220V, 380V, 440V, 480V Rated capacity 50KVA Cooling Method ONAN ONAF OFAF Core material Silicon
High Frequency Pad Mounted Transformer
,Silicon Core Electric Power Transformer
,Silicon Core Pad Mounted Transformer 50 Kva
| Attribute | Value |
|---|---|
| Type | Distribution transformer, Oil-filled Transformer |
| Material | Silicon steel sheet, Aluminum |
| Frequency | 50Hz, 60Hz |
| Shape | Rectangle |
| Winding Material | Aluminum |
| Application | Power |
| Coil Number | Dual-winding coil |
| Input Voltage | 3kV, 6kV, 10kV, 15kV |
| Output Voltage | 110V, 220V, 380V, 440V, 480V |
| Rated capacity | 50KVA |
| Cooling Method | ONAN ONAF OFAF |
| Core material | Silicon Core |
| Vector Group | Dyn1/Yyn0 |
| Rated frequency | 50Hz-60 Hz |
| Product name | Single Phase Pad Mounted Transformer |
| Warranty | 3 Years |
- Corrosion-Resistant Outdoor Enclosure - Powder-coated tank with stainless hardware for harsh environments
- Durable Oil-Immersed Design - Sealed tank with mineral oil for insulation and cooling
- Compact Structure - Designed to fit in limited spaces like urban grids and residential areas
- High Reliability - Long service life with better reliability than traditional transformers
- Safety Performance - Fully enclosed design prevents electric shock and external damage
- Low Noise Operation - Suitable for residential areas and noise-sensitive locations
- Easy Maintenance - Modular structure allows for quick maintenance
| Capacity (KVA) | HV | Tapping range | LV | No-load loss | Load loss | Dimension(mm) | Efficiency |
|---|---|---|---|---|---|---|---|
| 15 | 2400-14400 | ±2X2.5% | 110-690 | 60-150 | 330-1150 | 610-740 | 98.82% |
| 25 | 98.95% | ||||||
| 37.5 | 99.05% | ||||||
| 50 | 99.11% |
- Residential Distribution (Backyard/Sidewalk Transformers)
- Commercial & Light Industrial Buildings
- Shopping Centers & Office Parks
- Urban Utility Networks
- Renewable Projects (Solar Power)
We respond within 1 hour with suitable transformer recommendations, reasonable quotations, and payment terms. Our professional team confirms all drawing details within 7 days after payment, including technical data, weight, and parts list.
After finalizing the production drawing, we prepare stock, manufacture, and conduct rigorous quality inspections. We provide QC reports and test reports, with raw materials strictly screened for quality assurance.
Our professional team guides installation and supports on-site setup. We provide over 2 years of warranty service for your peace of mind.
HENTG POWER is a professional designer, manufacturer and installer of power system solutions founded in 2011, occupying 100,000 square meters. We specialize in reliable, high-performance solutions for global power systems.
We provide pre-production samples, final inspections before shipment, QC & test reports, and accept Factory Acceptance Tests. Our transformers meet ANSI/IEEE/DOE2016/CSA/IEC60076 standards with over 2 years warranty service.
We have professional drawing and technical teams that confirm all drawing details within 7 days. Our 30+ senior engineers offer 24/7 online support with 30-minute response times.
We accept OEM orders with negotiated business payment terms, providing customized solutions to meet your specific requirements.
-
