Variable Voltage Oil Immersed Distribution Transformer Mv Hv Pole Mounted Class H Insulation
Variable Voltage Oil Immersed Distribution Transformer MV HV Pole Mounted Class H Insulation Product Specifications Attribute Value Frequency 50Hz, 60Hz, 50/60Hz Phase Single Phase Application Distribution System Output Voltage 10kV, 415V, 110V, 220V, 380V, 400V, 440V Input Voltage 11kV, 10.5kV, 3kV, 12.47kV, 6.6kV, 6.3kV, 6kV Type Oil-Immersed Transformer Rated Capacity 15-500kVA Rated Power 5-50 kVA Efficiency 98% Winding Material Copper Warranty 1 year Operating Temperatur
Oil Immersed Distribution Transformer Mv Hv
,Oil Immersed Distribution Transformer Pole Mounted
| Attribute | Value |
|---|---|
| Frequency | 50Hz, 60Hz, 50/60Hz |
| Phase | Single Phase |
| Application | Distribution System |
| Output Voltage | 10kV, 415V, 110V, 220V, 380V, 400V, 440V |
| Input Voltage | 11kV, 10.5kV, 3kV, 12.47kV, 6.6kV, 6.3kV, 6kV |
| Type | Oil-Immersed Transformer |
| Rated Capacity | 15-500kVA |
| Rated Power | 5-50 kVA |
| Efficiency | 98% |
| Winding Material | Copper |
| Warranty | 1 year |
| Operating Temperature | -40 to 40°C |
| Insulation Class | Class H |
| Protection Level | IP54 |
| Enclosure Material | Steel |
| Mounting Type | Pole Mounted |

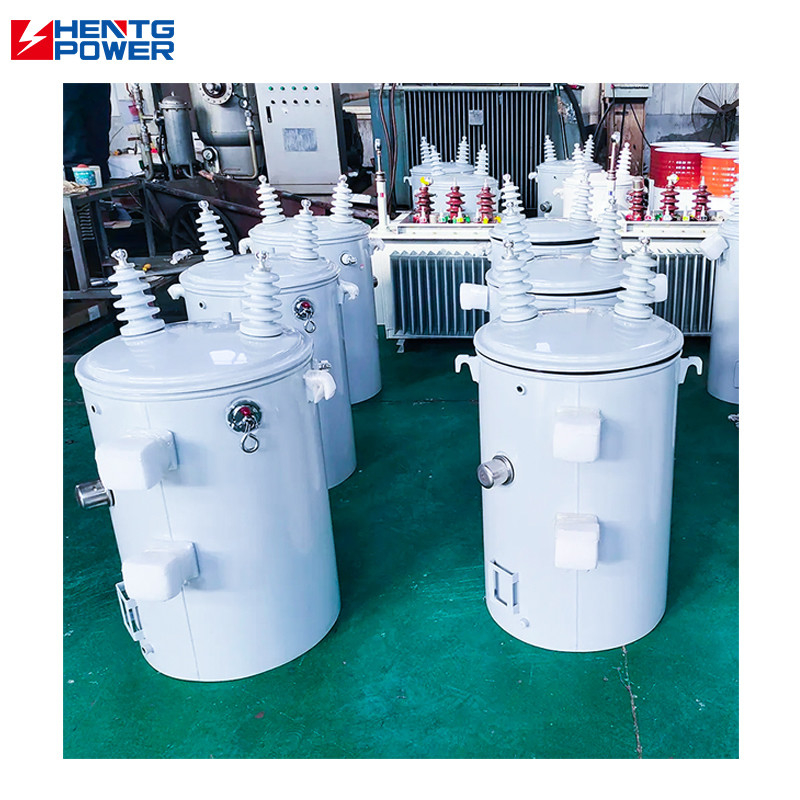

HENTG Power Variable Voltage Oil Immersed Transformer MV HV Transformer 50 KVA Single Phase Pole Mounted Transformer is designed for users with limited space. Despite its compact size, it delivers powerful performance to meet daily electricity needs for both residential and small commercial applications.
| Capacity (KVA) | HV | Tapping Range | LV | No-load Loss | Load Loss | Dimension (mm) | Efficiency |
|---|---|---|---|---|---|---|---|
| 15 | 2400-34500V | ±2*2.5% | 110-690V | 60-150W | 330-1150W | 520-795×565-890×905-1135 | 98.82% |
| 25 | 98.95% | ||||||
| 37.5 | 99.05% | ||||||
| 50 | 99.11% | ||||||
| 75 | 99.19% | ||||||
| 100 | 99.25% | ||||||
| 167 | 99.33% | ||||||
| 250 | 99.39% | ||||||
| 333 | 99.43% | ||||||
| 500 | 99.49% |
- Reduced Line Losses: Installed close to the load, these transformers shorten the low-voltage supply radius, reducing line losses by over 99%.
- Energy-Efficient Design: Features a high-efficiency wound core design for improved electrical performance and energy savings.
- Compact & Lightweight: Easy to install and transport, adaptable to various environments.
- Pole-Mounted Installation: Direct mounting on utility poles without occupying ground space - ideal for rural and suburban areas.
- Cost-Effective Solution: Lower capital investment compared to traditional transformer systems.
- High Reliability: Fully enclosed structure protects against dust and moisture with strong overload capacity.
We respond within 1 hour with suitable transformer recommendations, reasonable quotations, and payment terms. Our technical team will confirm all drawing details within 7 days after payment.
After finalizing production drawings, we prepare materials, manufacture, and conduct rigorous quality inspections. We provide QC and test reports for all products.
Our professional team provides installation guidance and on-site support when needed. All products come with a 2-year warranty service.
-
