Place of Origin:
Jiangsu, China
Brand Name:
HENTG Power
Certification:
CE
Model Number:
S20
| Attribute | Value |
|---|---|
| Frequency | 50Hz, 60Hz, 50/60Hz |
| Phase | Three |
| Coil Structure | Fully sealed construction, round coil, Disc Coil |
| Output Voltage | 415V, 110V, 220V, 380V, 400V, 480V, 11kV |
| Input Voltage | 10.5kV, 3kV, 12.47kV, 6.6kV, 6.3kV, 6kV, 10kV, 35kV, 69kV |
| Type | Oil-Immersed Transformer, Isolation Transformer, Voltage Regulator Transformer |
| Rated Capacity | 400KVA~1000KVA |
| Cooling Method | Oil Cooling |
| Vector Group | Dyn1/Yyn0 |
| Winding Material | Copper/Aluminum |

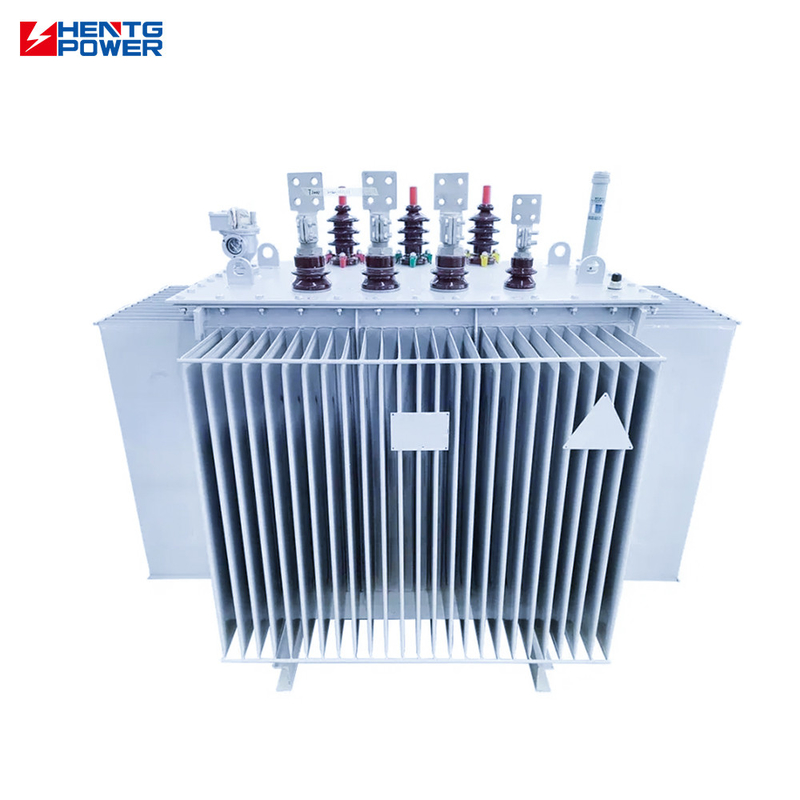

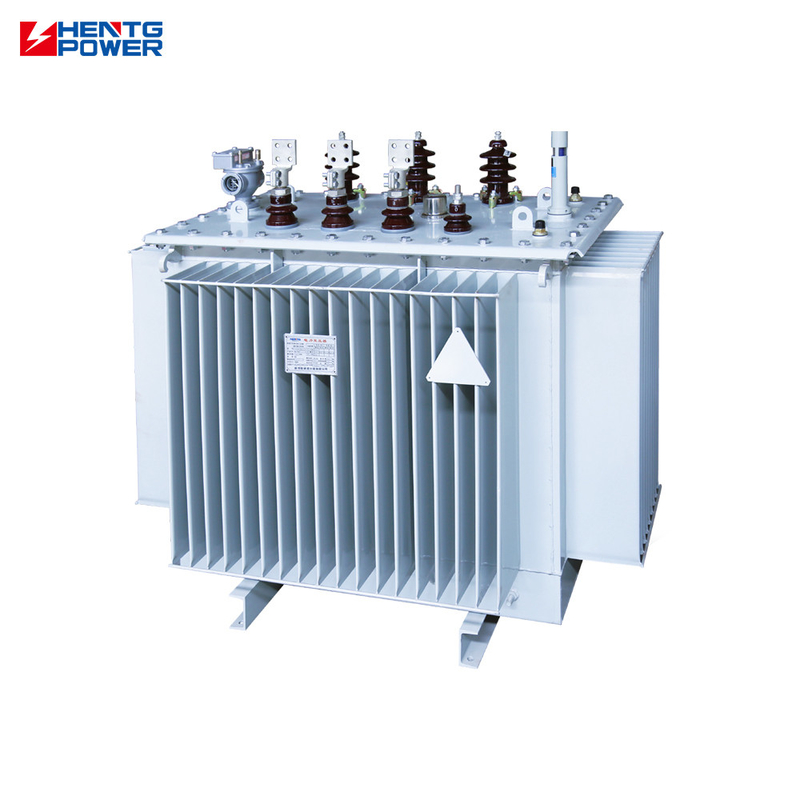

Our S13 series oil-immersed distribution transformer is engineered with premium low-loss silicon steel and advanced coil winding technology for superior performance.
| Rated Capacity (KVA) | Vector Group | Voltage Combination | No-load Loss | Load Loss | Impedance |
|---|---|---|---|---|---|
| 30 | Yyn0 / Dyn11 | 10 6.3 6 | 70 | 505 | 4.0 |
| 50 | 90 | 730 | |||
| 63 | 100 | 870 | |||
| 80 | 115 | 1050 | |||
| 100 | 135 | 1265 | |||
| 125 | 150 | 1510 | |||
| 160 | 180 | 1850 | |||
| 200 | 215 | 2185 | |||
| 250 | 260 | 2560 | |||
| 315 | 305 | 3065 | |||
| 400 | 370 | 3615 | |||
| 500 | 430 | 4330 | |||
| 630 | 510 | 4960 | 4.5 | ||
| 800 | 630 | 6000 | |||
| 1000 | 745 | 8240 |
HENTG POWER is a professional designer, manufacturer and installer of power system solutions worldwide. Founded in 2011 with a 100,000 square meter facility, we specialize in reliable, high-performance solutions for global power systems.
We conduct pre-production sampling and final inspections before shipment, providing QC & test reports. We accept Factory Acceptance Tests (FAT). Our factory produces oil-type and dry-type distribution transformers up to 500KV 480MVA power transformers, GIS, switchgear, and substations, compliant with ANSI/IEEE/DOE2016/CSA/IEC60076 standards. We offer a 2+ year guarantee service.
We maintain a professional drawing and technical team that can confirm all drawing contents within 7 days. Our technical team includes 30+ senior engineers providing 24/7 online support with 30-minute response times.
We accept OEM orders with negotiated business payment terms.
