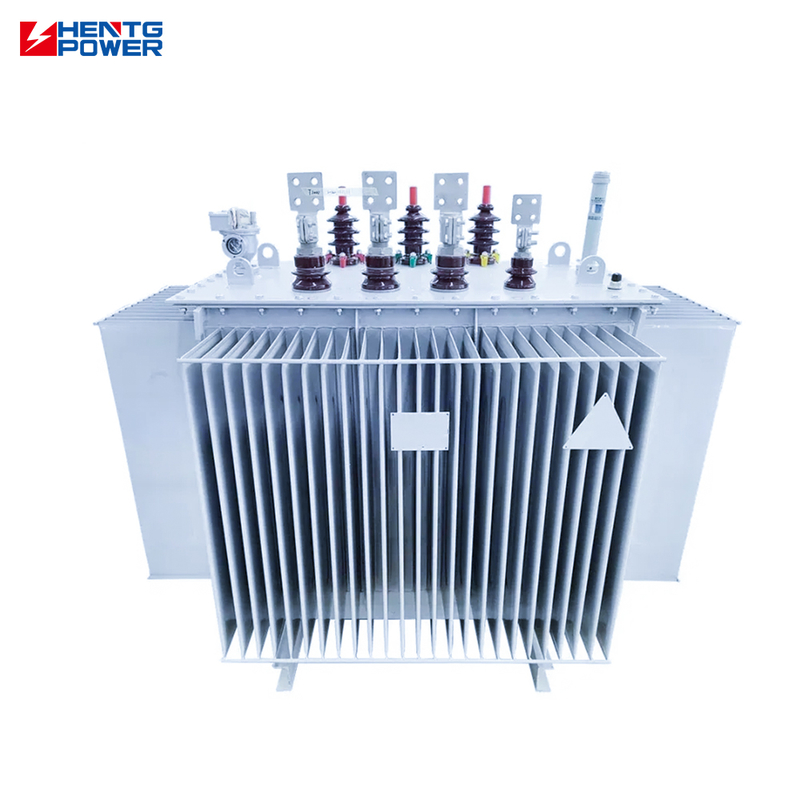

30kVA To 1000KVA Step Up Cooper Oil Filled Transformers For HV Power Transmission

step up cooper oil filled transformers

step up oil filled distribution transformers

power transmission cooper oil filled transformers

Place of Origin:

Hunan, China

Brand Name:

HENTG Power

Certification:

Model Number:

S20

Chat Now

Request A Quote

Product Details

Frequency:

50Hz, 60Hz

Phase:

Three

Coil Number:

Single Winding, Two Windings, Multi Winding, Three Windings

Application:

Power Distribution System Power Transformer

Coil Structure:

Shell-Type Coil, Layer Coil, Fully Sealed Construction, Disc Coil, Round Coil

Output Voltage:

415V, 110V, 220V, 380V, 400V , 440V, 480V

Input Voltage:

11kV, 10.5kV, 3kV, 6.3kV, 6.6kV, 12.47kV, 6kV, 10kV, 35kV

Type:

Voltage Regulator Transformer, Oil-Immersed Transformer

Vector Group:

Dyn11 / Yyn0

Product Name:

S20 Energy Efficiency Secondary Oil-immersed Transformer

Customization:

Highlight:

step up cooper oil filled transformers

step up oil filled distribution transformers

power transmission cooper oil filled transformers

Payment & Shipping Terms

Minimum Order Quantity

2 sets

Price

CN¥7,044.16-89,679.40/units

Electric Step Down Power Transformer MV HV Oil Immersed Distribution Transformer 500kva 1000Kva

Chat Now

Video

3 Phase Step up Transformer 1250 Kva Industrial Electricity on Load Transformer Medium Voltage High Frequency Transformers

Chat Now

Video

HENTG Electric Power Transformer 400kVA 1000kVA Oil Immersed Energy Efficient

Chat Now

Video

Adjustable Voltage Oil Immersed Transformer 6.3-20KV 250-630kVA 3 Phase Multi Winding

Chat Now

+86 15074989773

info@hentgpower.com

Chat Now

Product Description

PRODUCTS DESCRIPTION

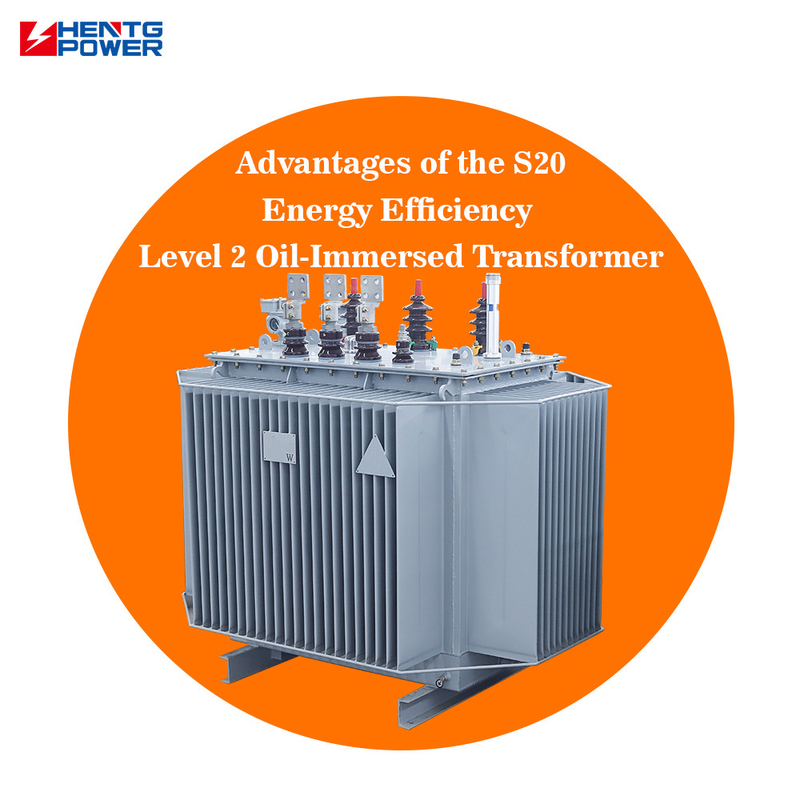

S20 type energy-efficient secondary oil-immersed transformer
Rated capacity (KVA)	Vector Group	Voltage Combination					No-load loss	Load loss			lmpedance
Rated capacity (KVA)	Vector Group			HV	Tapping range	LV	No-load loss		Dy	Yy	lmpedance
30	Yyn0 / Dyn11	10 6.3 6	±5% ±2X2.5%	0.4	70	505	480	4.0
50										90	730	695
63										100	870	830
80										115	1050	1000
100										135	1265	1200
125										150	1510	1440
160										180	1850	1760
200										215	2185	2080
250										260	2560	2440
315										305	3065	2920
400										370	3615	3440
500										430	4330	4120
630									510	4960	4960	4.5
800									630	6000	6000
1000									745	8240	8240
1250									870	9600	9600
1600									1050	11600	11600
2000									1225	14640	14640	5.0
2500									1440	14840	14840	5.0

TRANSFORMER CATALOG

CONUSULTING PROCESS

Step 1:

We will respond to your inquiry within 1 hour and recommend suitable transformer according to your needs. At the same
time, we will provide you with reasonable quotations and payment terms.We have a professional and independent drawing team and technical team, and we will confirm all the contents on the drawing with you within 7 days after payment. The drawing usually contains technical data, weight and parts list. If you have any questions, please click here to consult.

Step 2:

After designing the production drawing, the factory will prepare the stock, produce, and conduct quality inspection
before shipment. If you have special accessory requirements, we can provide you with accessories. Our raw materials are strictly screened. In the quality inspection stage, we will provide you with the dual guarantee of QC report and test report to escort you products.

Step 3:

We have a professional team to guide the installation, and also support on-site installation. We will provide
you with more than 2 years of warranty service. Welcome to join us and create a win-win situation. Click here to start our
business now.
If you have any questions, feel free to CHAT for communication.

SHIPPING PROCESS

COMPANY PROFILE

WHY CHOOSE US

Professional 30+ senior engineers offer 24 hours online service and response within 30 min.

● 100,000 m² factory, 250 workers, 30+ engineers .

● 4 production line, 10000+ sets annual production capacity.

● 100% OQC testing with 25 detection contents.

● 15 years power transformer designing and production experience.

● Products comply with GB 20052-2024/ANSI/IEEE/DOE2016/CSA/IEC60076 standard.

●Cross-industry power transformer solution.

● Global on-site technical support.

CERTIFICATIONS

FAQ

Q: Who are we ?

HENTG POWER is a professional designer, manufacturer and installer of power system solution around the World, was
founded in 2011, occupies 100,000 square meter. specializing in reliable, high-performance solutions for global power systems

Q:How can we guarantee quality ?

Always a pre-production sample before mass production; Always final Inspection before shipment, We

will provide QC & test reports. We accept FAT(Factory Acceptance Test). Factory can manufacture oil type and dry type distribution transformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on ANSI/IEEE/DOE2016/CSA/IEC60076 standard. We
will provide you with the guarantee service of over 2 years.

Q: Why choose us?

We have the professional and independent drawing
team and technical team, It is expected that we can confirm all the contents on the drawings with you within 7 days. we have a
professional technical team with 30+ senior engineers offer 24 hours online service and response within 30 min.

Q: What servicescan we provide ?

Accept OEM, business payment are negotiated.
