Place of Origin:
Hunan, China
Brand Name:
HENTG Power
Certification:
CE
Model Number:
S20
| Attribute | Value |
|---|---|

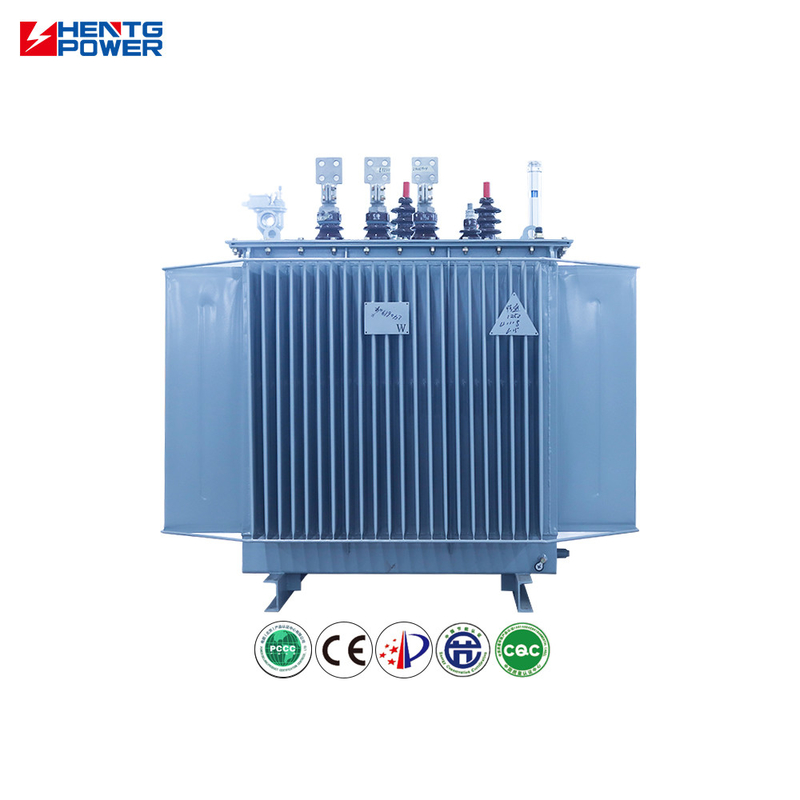

| Type | Power transformer, distribution transformer, Oil-filled Transformer |
| Frequency | 50Hz, 60Hz |
| Winding Material | Copper |
| Application | Power |
| Phase | Three |
| Coil Structure | Layered Winding |
| Coil Number | Multi-winding coil |
| Input Voltage | 3kV, 6kV, 10kV, 15kV, 35kV, 69kV, 110kV, 220kV, 400kV, 115kV, 132kV |
| Output Voltage | 5V, 400V, 208V, 200V, 415V, 127V, 11kV, 12V, 24V, 48V, 110V, 220V, 36V, 380V, 440V, 480V, 9V |
| Cooling Method | ONAN ONAF OFAF |
| Vector Group | Dyn11/Yyn0 |
| Rated Capacity (KVA) | Vector Group | Voltage Combination | No-load Loss | Load Loss | Impedance |
|---|---|---|---|---|---|
| 30 | Yyn0 / Dyn11 | 10 6.3 6 | 70 | 505 | 4.0 |
| 50 | 90 | 730 | |||
| 63 | 100 | 870 | |||
| 80 | 115 | 1050 | |||
| 100 | 135 | 1265 | |||
| 125 | 150 | 1510 | |||
| 160 | 180 | 1850 | |||
| 200 | 215 | 2185 | 4.5 | ||
| 250 | 260 | 2560 | |||
| 315 | 305 | 3065 | |||
| 400 | 370 | 3615 | 5.0 | ||
| 500 | 430 | 4330 |
