Place of Origin:
Jiangsu, China
Brand Name:
HENTG Power
Certification:
CE
Model Number:
ZGS Series
| Attribute | Value |
|---|---|
| Frequency | 50Hz, 60Hz, 50/60Hz |
| Phase | Three |
| Coil Number | Three Windings, Multi Winding, Single Winding, Two Windings |
| Application | Distribution System |
| Output Voltage | 415V, 10kV, 110V, 220V, 380V, 400V, 440V, 480V, 11kV |
| Input Voltage | 11kV, 10.5kV, 3kV, 12.47kV, 6.6kV, 6.3kV, 6kV, 10kV, 35kV, 69kV, 110kV, 115kV, 132kV |
| Type | Isolation Transformer, Voltage Regulator Transformer, AUTOTRANSFORMER, Field Adjustable Transformer, Oil-Immersed Transformer, Dual Winding Transformer |
| Product Name | Three Phase Oil Immersed Transformer |
| Application | Power Distribution System Power Transformer |
| Rated Capacity | 400KVA-2500KVA |
Pad-Mounted Transformer | 50KVA~2500KVA | Ground-Mounted, Fully Sealed, Safe & Reliable

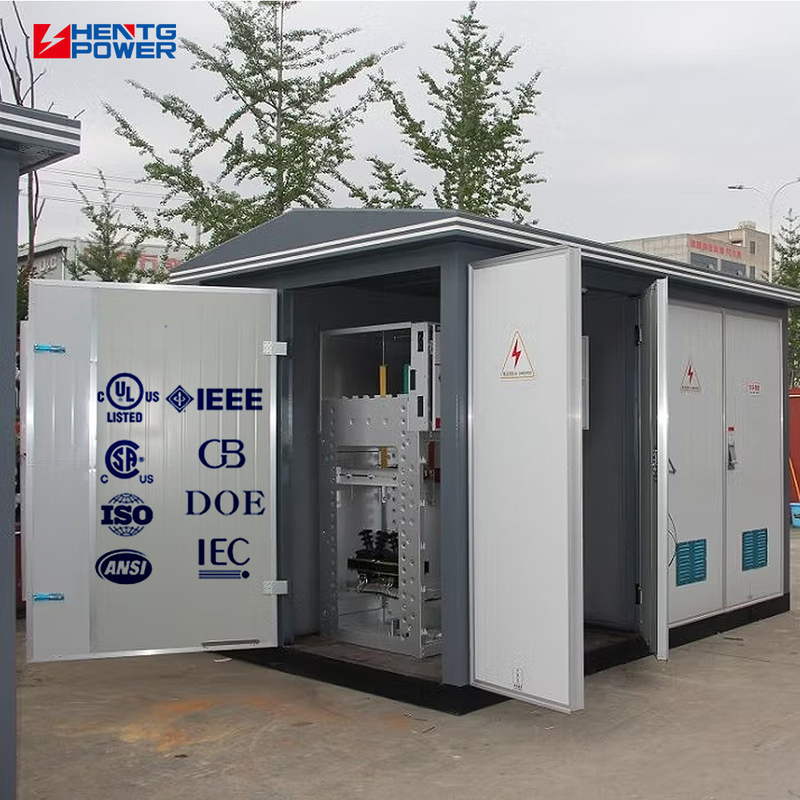

Pad-mounted transformer is a fully sealed, fully insulated ground-mounted distribution unit, widely used in residential areas, shopping centers, industrial plants, and public parks. Built to North American standards, it offers high reliability, enhanced safety, and easy installation.
| HV | ||
|---|---|---|
| Rated Frequency | Hz | 50 |
| Rated Voltage | kV | 6 10 35 |
| Max Working Voltage | kV | 6.9 11.5 40.5 |
| Industrial Frequency Voltage-resisting Time | kV | 32/36 42/48 95/118 |
| Thunder and Lighting Ballistic Voltage-resisting Time | kV | 60/70 75/85 185/215 |
| Rated Current | A | 400 630 |
| Rated Brief-period Current-resisting | kA | 12.5(2s) 16(2s) 20(2s) |
| Rated Crest Value Current-resisting | kA | 32.5 40 50 |
| LV | ||
| Rated Voltage | V | 380 220 |
| Rated Current Of Major Return Circuit | A | 100-3200 |
| Rated short-circuit Current-resisting | kA | 15 30 50 |
| Rated Crest Value Current-resisting | kA | 30 63 110 |
| Branch Circuit | A | 10-800 |
| Quantity Of Branch | line | 1-12 |
| Compensation Circuit | kVAR | 0-360 |
| Transforming | ||
| Rated Capacity | kVA | 50-2000 |
| Short-circuit Impedance | % | 4 6 |
| Scope Of Branch Connection | +2x2.5% ±5% | |
| Vector Group | Yyn0 Dyn11 | |
We will respond to your inquiry within 1 hour and recommend suitable transformer according to your needs. At the same time, we will provide you with reasonable quotations and payment terms. We have a professional and independent drawing team and technical team, and we will confirm all the contents on the drawing with you within 7 days after payment. The drawing usually contains technical data, weight and parts list.
After designing the production drawing, the factory will prepare the stock, produce, and conduct quality inspection before shipment. If you have special accessory requirements, we can provide you with accessories. Our raw materials are strictly screened. In the quality inspection stage, we will provide you with the dual guarantee of QC report and test report to escort your products.

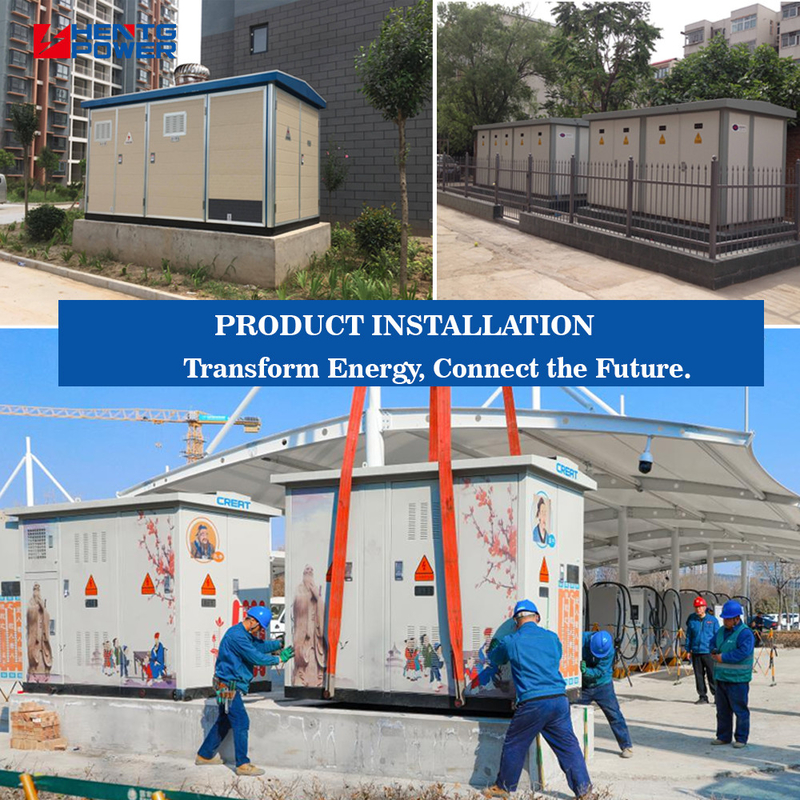

We have a professional team to guide the installation, and also support on-site installation. We will provide you with more than 2 years of warranty service.

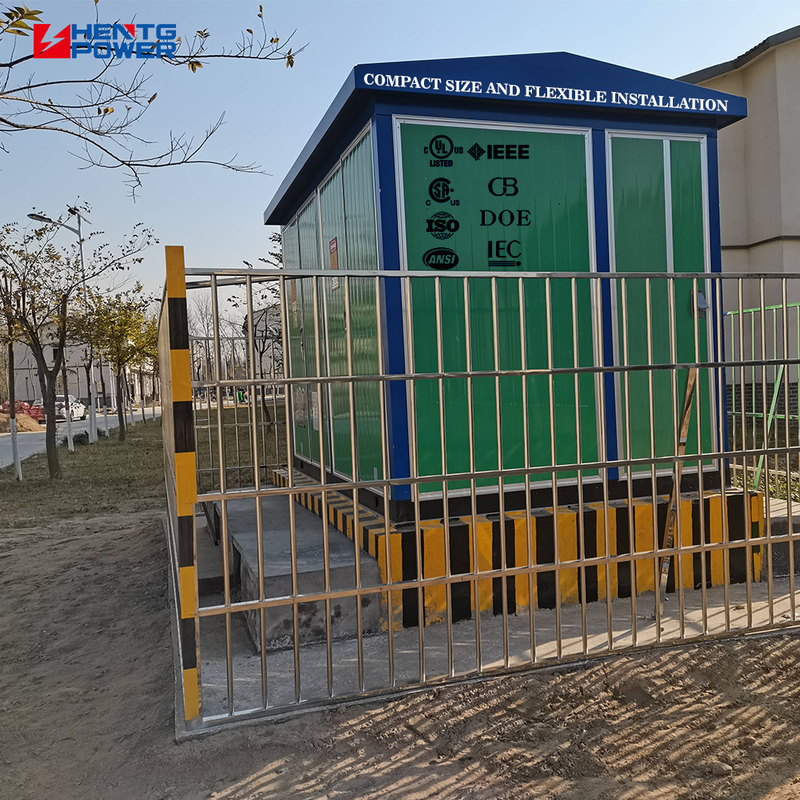

The unit has a clean and modern appearance, with strong environmental adaptability. It integrates well with surrounding architecture and landscaping, enhancing the overall urban aesthetic.
Enables deployment close to medium-voltage load centers, reducing distribution line length, lowering line losses, and improving power quality and supply reliability.
Requires no civil infrastructure, reducing initial investment. No need for fulltime staffing, minimizing labor costs. The long maintenance cycle and easy operation result in a lower total cost of ownership throughout the lifecycle.
The modular substation can be relocated and reused based on urban development needs, avoiding redundant investments and supporting sustainable development goals.
HENTG POWER is a professional designer, manufacturer and installer of power system solution around the World, was founded in 2011, occupies 100,000 square meter. specializing in reliable, high-performance solutions for global power systems.
Always a pre-production sample before mass production; Always final Inspection before shipment, We will provide QC & test reports. We accept FAT(Factory Acceptance Test). Factory can manufacture oil type and dry type distribution transformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on ANSI/IEEE/DOE2016/CSA/IEC60076 standard. We will provide you with the guarantee service of over 2 years.
We have the professional and independent drawing team and technical team. It is expected that we can confirm all the contents on the drawings with you within 7 days. we have a professional technical team with 30+ senior engineers offer 24 hours online service and response within 30 min.
Accept OEM, business payment are negotiated.
