Mv Hv Compact Substation Transformer 3 Phase Oil Type 3250kVA 3500kVA Pre Installed
MV HV Compact Substation Transformer - 3 Phase Oil Type (3250kVA-3500kVA Pre-Installed) Product Overview HENTG's pre-installed substations are compact, factory-assembled solutions that integrate transformers, switchgear, and protection systems in weatherproof enclosures. Designed for quick deployment and easy installation, these solutions are ideal for urban grids, industrial parks, renewable energy plants, and construction sites. Key Features High efficiency power transforma
Compact Substation Transformer 3 Phase
,Pre Installed Compact Substation Transformer

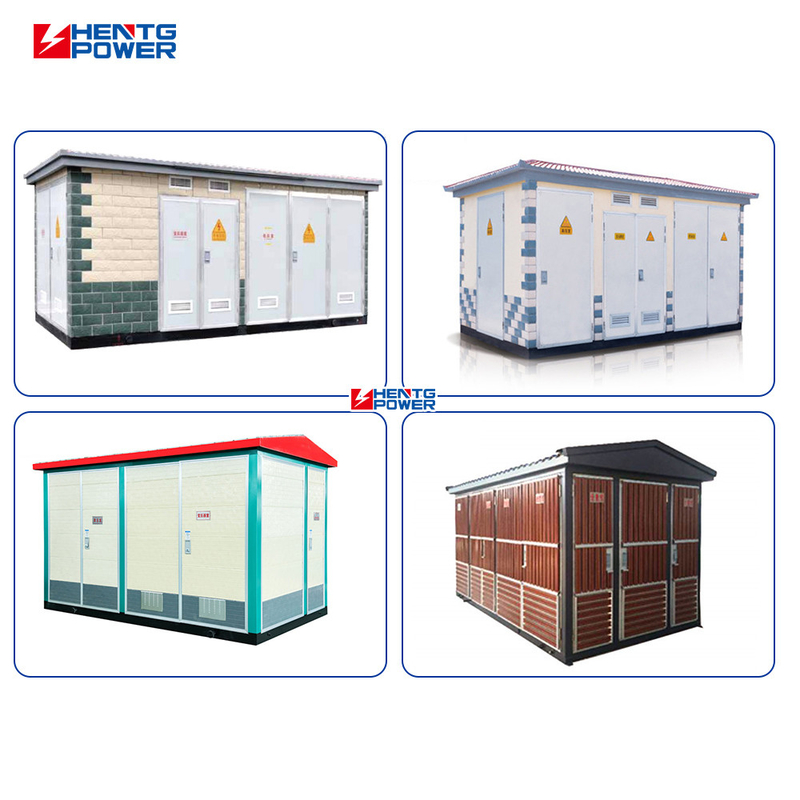

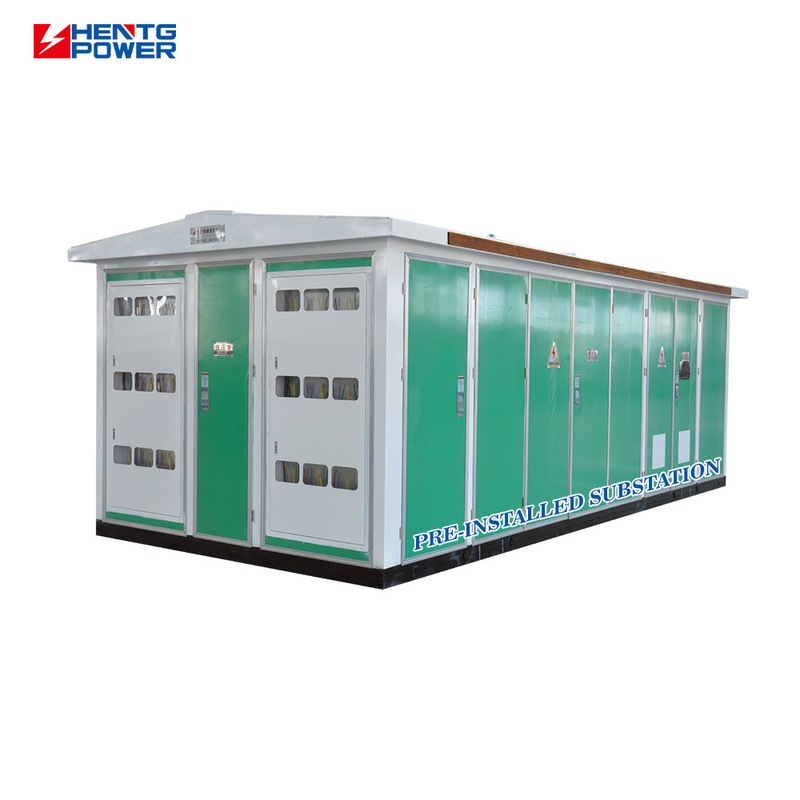

HENTG's pre-installed substations are compact, factory-assembled solutions that integrate transformers, switchgear, and protection systems in weatherproof enclosures. Designed for quick deployment and easy installation, these solutions are ideal for urban grids, industrial parks, renewable energy plants, and construction sites.
- High efficiency power transformation
- Compact, pre-installed substation design
- Weatherproof enclosure for outdoor use

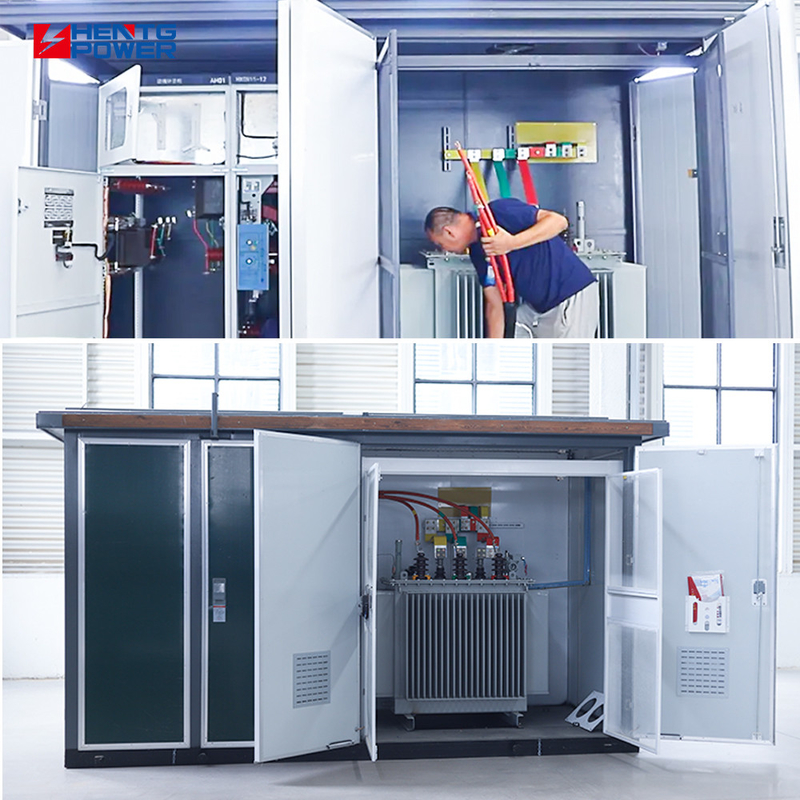

- Integrated transformer, switchgear, and protection systems
- Available in 3250kVA and 3500kVA capacities
- Three-phase oil-type construction
| Attribute | Value |
|---|---|
| Type | Power transformer, distribution transformer, Auto Transformer |
| Frequency | 50Hz, 60Hz |
| Winding Material | Aluminum |
| Phase | Three |
| Input Voltage | 3kV, 6kV, 10kV, 15kV, 35kV, 69kV, 110kV, 220kV, 400kV, 115kV, 132kV |
| Output Voltage | 5V to 480V (multiple options available) |
| Rated Capacity | 30KVA to 2500KVA |
| Parameter | Unit | Value |
|---|---|---|
| Rated Frequency | Hz | 50 |
| Rated Voltage | kV | 6, 10, 35 |
| Max Working Voltage | kV | 6.9, 11.5, 40.5 |
| Rated Current | A | 400, 630 |
| Parameter | Unit | Value |
|---|---|---|
| Rated Voltage | V | 380, 220 |
| Rated Current | A | 100-3200 |
| Parameter | Unit | Value |
|---|---|---|
| Rated Capacity | kVA | 50-2000 |
| Short-circuit Impedance | % | 4, 6 |
| Vector Group | Yyn0, Dyn11 |
We respond within 1 hour with suitable transformer recommendations, competitive quotations, and payment terms. Our technical team confirms all drawing details within 7 days after payment, including technical data, weight, and parts list.

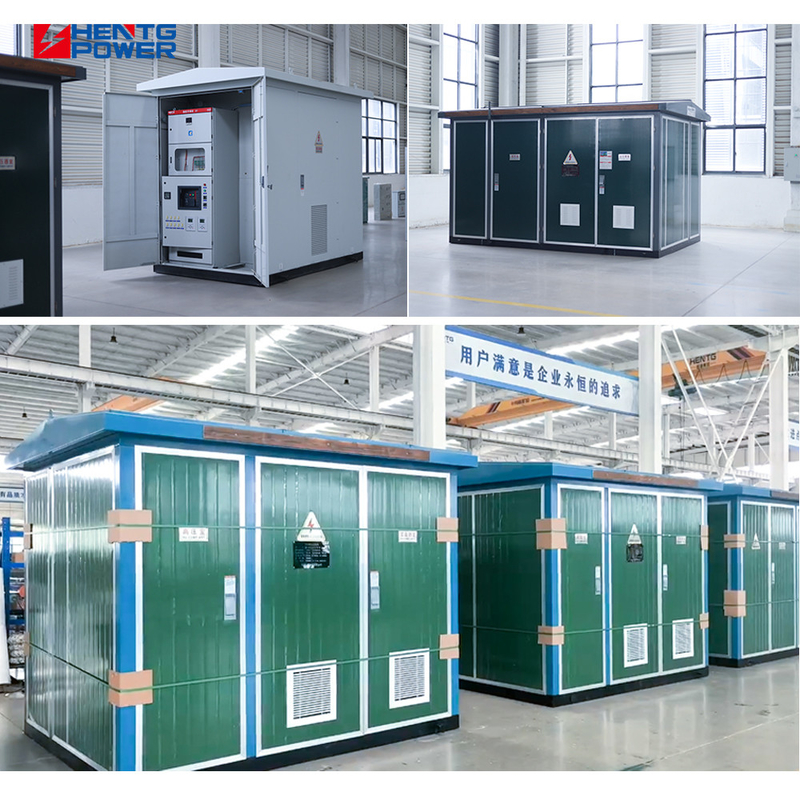

After finalizing drawings, we prepare stock, manufacture, and conduct rigorous quality inspections. We provide QC and test reports, with options for special accessories. All raw materials are strictly screened for quality assurance.

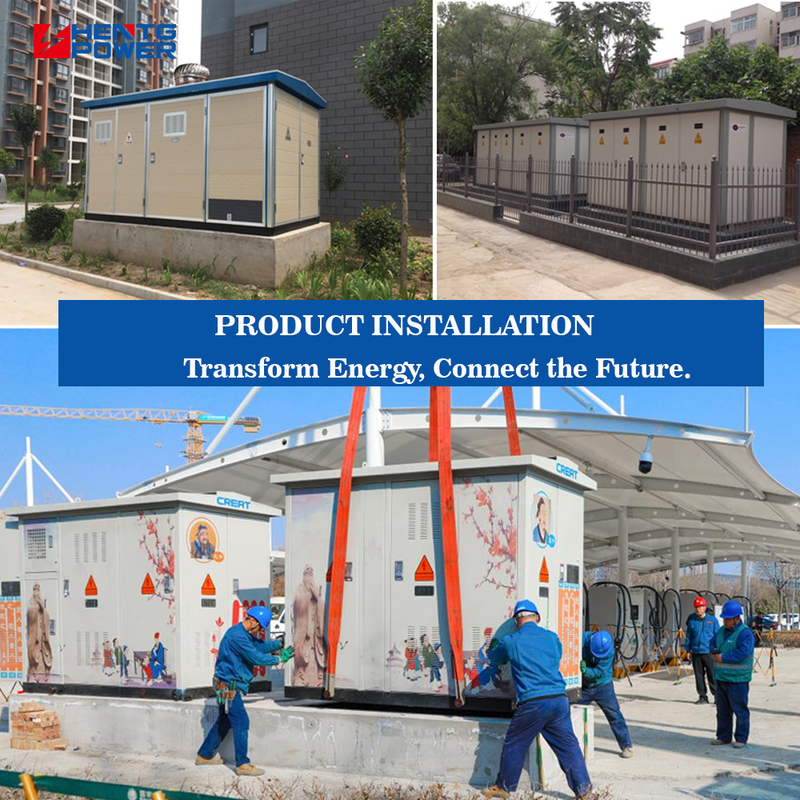

Our professional team provides installation guidance and on-site support. All products come with a minimum 2-year warranty, ensuring long-term reliability and performance.
HENTG POWER is a professional designer, manufacturer and installer of power system solutions worldwide, founded in 2011 with a 100,000 square meter facility. We specialize in reliable, high-performance solutions for global power systems.

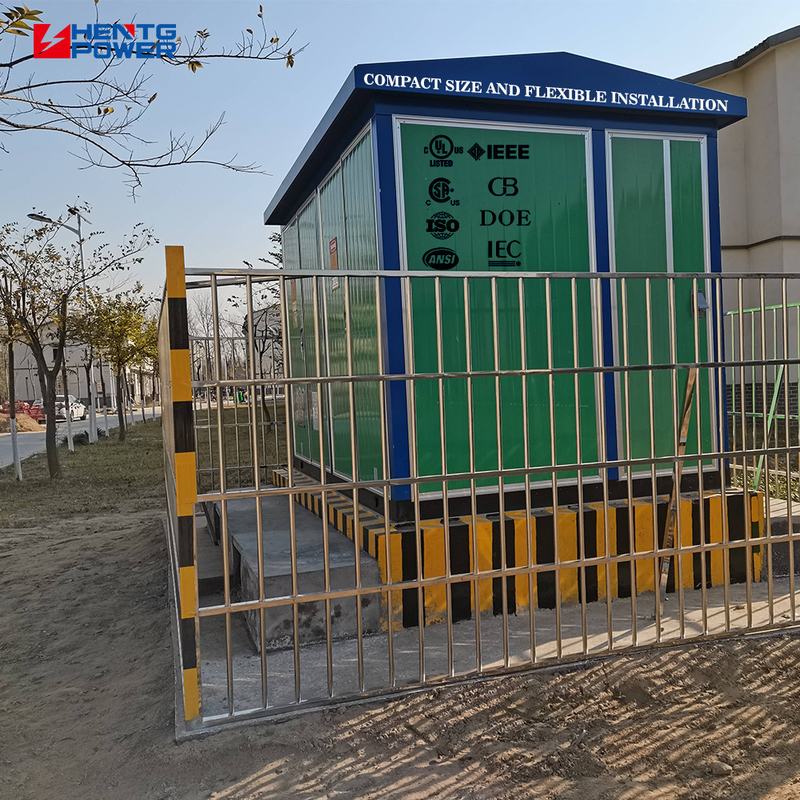

We conduct pre-production samples, final inspections before shipment, and provide QC & test reports. We manufacture to ANSI/IEEE/DOE2016/CSA/IEC60076 standards, with a minimum 2-year warranty.
Our professional team includes 30+ senior engineers providing 24/7 support with 30-minute response times. We confirm all drawing details within 7 days and offer comprehensive technical support throughout the project lifecycle.
We accept OEM requests and offer flexible business payment terms. Our services include custom design, manufacturing, quality assurance, installation support, and long-term maintenance.
Contact us today to discuss your power transformer requirements and receive a customized solution.
-
