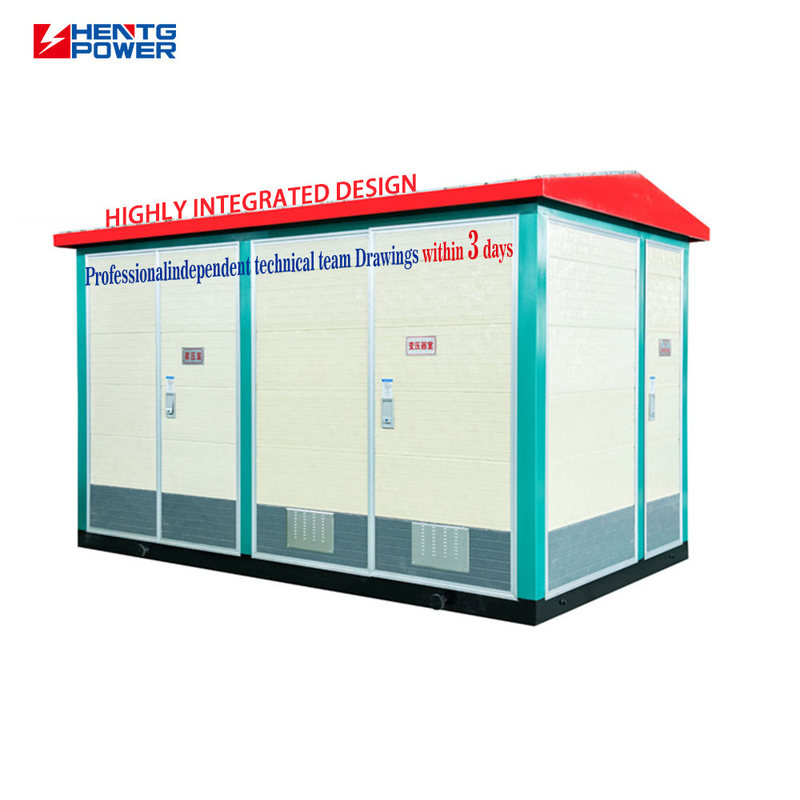

1500kVA Compact Substation Voltage Transformer 3 Phase Ground Mounted Transformer

Product Summary

1500kVA Compact Substation Voltage Transformer 3 Phase Ground Mounted Transformer Product Specifications Attribute Value Type Power transformer, distribution transformer, Auto Transformer Frequency 50Hz, 60Hz Winding Material Aluminum Application Power Distribution System Phase Three Coil Structure Layered Winding Input Voltage 3kV, 6kV, 10kV, 15kV, 35kV, 69kV, 110kV, 220kV, 400kV, 115kV, 132kV Output Voltage 5V, 400V, 208V, 200V, 415V, 127V, 11kV, 12V, 24V, 48V, 110V, 220V,

Key Attributes

Brand Name: HENTG Power

Model Number: YB

Place of Origin: China

Certification: CE

MOQ: 1

Product Custom Attributes

Highlight

1500kVA Compact Substation Voltage Transformer

Compact Substation Ground Mounted Transformer

Type:

Power Transformer, Distribution Transformer, Auto Transformer

Frequency:

50Hz, 60Hz

Winding Material:

Aluminum

Application:

Power

Phase:

Three

Coil Structure:

Layered Winding

Coil Number:

Multi-winding Coil

Input Voltage:

3kV, 6kV, 10kV, 15kV, 35kV, 69kV, 110kV, 220kV, 400kV, 115kV, 132kV

Output Voltage:

5V, 400V , 208V, 200V, 415V, 127V, 11kV, 12V , 24V, 48V, 110V, 220V, 36V, 380V, 440V, 480V, 9V

Material:

Aluminum Winding

Product Name:

Three Phase Transformer

Application:

Power Distribution System

Usage:

Power Electronic

Transformer Type:

YBD Preinstalled

Feature:

High Efficiency

Name:

High Fequency Transformer

Keyword:

Substation Power Transformer

Product Description

1500kVA Compact Substation Voltage Transformer 3 Phase Ground Mounted Transformer

Product Specifications

Attribute	Value
Type	Power transformer, distribution transformer, Auto Transformer
Frequency	50Hz, 60Hz
Winding Material	Aluminum
Application	Power Distribution System
Phase	Three
Coil Structure	Layered Winding
Input Voltage	3kV, 6kV, 10kV, 15kV, 35kV, 69kV, 110kV, 220kV, 400kV, 115kV, 132kV
Output Voltage	5V, 400V, 208V, 200V, 415V, 127V, 11kV, 12V, 24V, 48V, 110V, 220V, 36V, 380V, 440V, 480V, 9V
Transformer Type	YBD Preinstalled
Feature	High Efficiency

Product Description

Pad-Mounted Transformer | 50KVA~2500KVA | Ground-Mounted, Fully Sealed, Safe & Reliable

Fully sealed tank design eliminates oil breathing and contamination risk, ensuring long-lasting operation. Side-mounted operation cabinet hides live parts, making it ideal for residential and public areas.

Technical Data For YB Pre-installed Substation

Parameter	Unit	Value
Rated Frequency	Hz	50
Rated Voltage	kV	6, 10, 35
Max Working Voltage	kV	6.9, 11.5, 40.5
Industrial Frequency Voltage-resisting Time	kV	32/36, 42/48, 95/118
Rated Current	A	400, 630
Rated Capacity	kVA	50-2000
Short-circuit Impendance	%	4, 6
Vector Group		Yyn0, Dyn11

Ordering Process

Step 1: We respond to inquiries within 1 hour, providing suitable transformer recommendations, quotations, and payment terms. Our technical team confirms all drawing details within 7 days after payment.

Step 2: After design approval, we prepare stock, manufacture, and conduct rigorous quality inspections. We provide QC and test reports, with optional Factory Acceptance Test (FAT).

Step 3: We offer professional installation guidance or on-site support, plus a 2+ year warranty. Special accessory requirements can be accommodated.

Frequently Asked Questions

Who are we?

HENTG POWER is a professional designer, manufacturer and installer of power system solutions worldwide. Founded in 2011 with 100,000 square meter facility, we specialize in reliable, high-performance solutions for global power systems.

How can we guarantee quality?

We conduct pre-production samples, final inspections before shipment, and provide QC & test reports. We manufacture oil and dry type distribution transformers up to 500KV 480MVA, GIS, switchgear, and substations, complying with ANSI/IEEE/DOE2016/CSA/IEC60076 standards, with 2+ year warranty service.

Why choose us?

Our professional drawing and technical teams confirm all details within 7 days. With 30+ senior engineers offering 24/7 support and 30-minute response times, we ensure exceptional service throughout your project.

What services can we provide?

We accept OEM orders with flexible payment terms. Our comprehensive services include design, manufacturing, testing, installation support, and extended warranty coverage.

For any questions or to discuss your project requirements, please contact our technical team.
