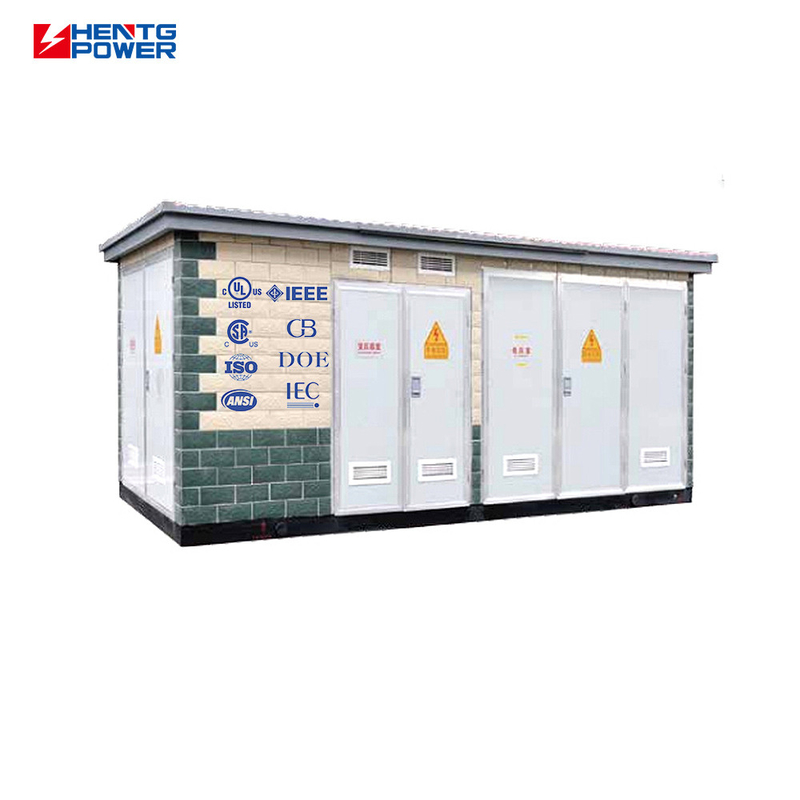

Oil Immersed Compact Substation Transformer 630KVA 1000KVA Pre Installed Box Type
Oil Immersed Compact Substation Transformer 630KVA 1000KVA Pre Installed Box Type Product Specifications Attribute Value Type Power transformer, distribution transformer Material Aluminum, Copper Frequency 50Hz, 60Hz Input Voltage 6kV, 10kV, 15kV, 35kV, 69kV, 110kV, 115kV Output Voltage 415V, 127V, 200V, 208V, 400V, 380V, 220V Capacity 600-2000 kVA Warranty 3 Years Protection Level IP33D/IP54 Customization Available Product Overview HENTG's pre-installed substations are
Compact Substation Transformer 630KVA
,Compact Substation Transformer Box Type
,Compact Substation Oil Immersed Transformer
| Attribute | Value |
|---|---|
| Type | Power transformer, distribution transformer |
| Material | Aluminum, Copper |
| Frequency | 50Hz, 60Hz |
| Input Voltage | 6kV, 10kV, 15kV, 35kV, 69kV, 110kV, 115kV |
| Output Voltage | 415V, 127V, 200V, 208V, 400V, 380V, 220V |
| Capacity | 600-2000 kVA |
| Warranty | 3 Years |
| Protection Level | IP33D/IP54 |
| Customization | Available |

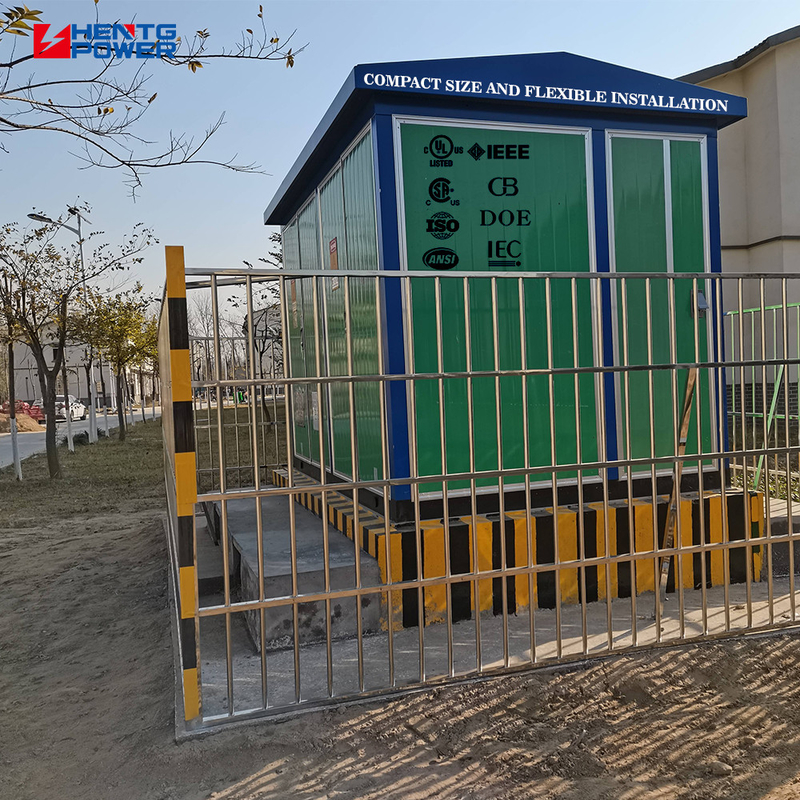

HENTG's pre-installed substations are compact, factory-assembled solutions that integrate transformers, switchgear, and protection systems in a weatherproof enclosure. Designed for quick deployment, easy installation, and minimal on-site work, they are ideal for urban grids, industrial parks, renewable energy plants, and construction sites.
| Rated Frequency | 50 Hz |
| Rated Voltage | 6, 10, 35 kV |
| Max Working Voltage | 6.9, 11.5, 40.5 kV |
| Industrial Frequency Voltage-resisting Time | 32/36, 42/48, 95/118 kV |
| Rated Brief-period Current-resisting | 12.5(2s), 16(2s), 20(2s) kA |
| Rated Voltage | 380, 220 V |
| Rated Current Of Major Return Circuit | 100-3200 A |
| Rated short-circuit Current-resisting | 15, 30, 50 kA |
- Aesthetic and Durable Appearance: Clean, modern design with strong environmental adaptability that integrates well with surrounding architecture.
- Proximity to Medium-Voltage Load Centers: Reduces distribution line length, lowering line losses and improving power quality.
- Cost-Effective Operation: Requires no civil infrastructure or full-time staffing, with long maintenance cycles for lower total cost of ownership.
- Reusable and Environmentally Friendly: Modular design allows relocation and reuse based on development needs.
We respond within 1 hour with suitable transformer recommendations, quotations, and payment terms. Our technical team confirms all drawing details within 7 days after payment.
After design approval, we prepare stock, manufacture, and conduct rigorous quality inspections. We provide QC and test reports, with optional Factory Acceptance Test (FAT).
We provide professional installation guidance or on-site support, along with over 2 years warranty service.
HENTG POWER is a professional designer, manufacturer and installer of power system solutions founded in 2011, occupying 100,000 square meters. We specialize in reliable, high-performance solutions for global power systems.
We conduct pre-production samples, final inspections before shipment, and provide QC & test reports. We manufacture oil and dry type transformers up to 500KV 480MVA, GIS, switchgear, and substations to international standards.
We have professional drawing and technical teams with 30+ senior engineers offering 24/7 support with 30-minute response times. We confirm all drawing details within 7 days.
We accept OEM orders and negotiate business payment terms to meet your specific requirements.
-
