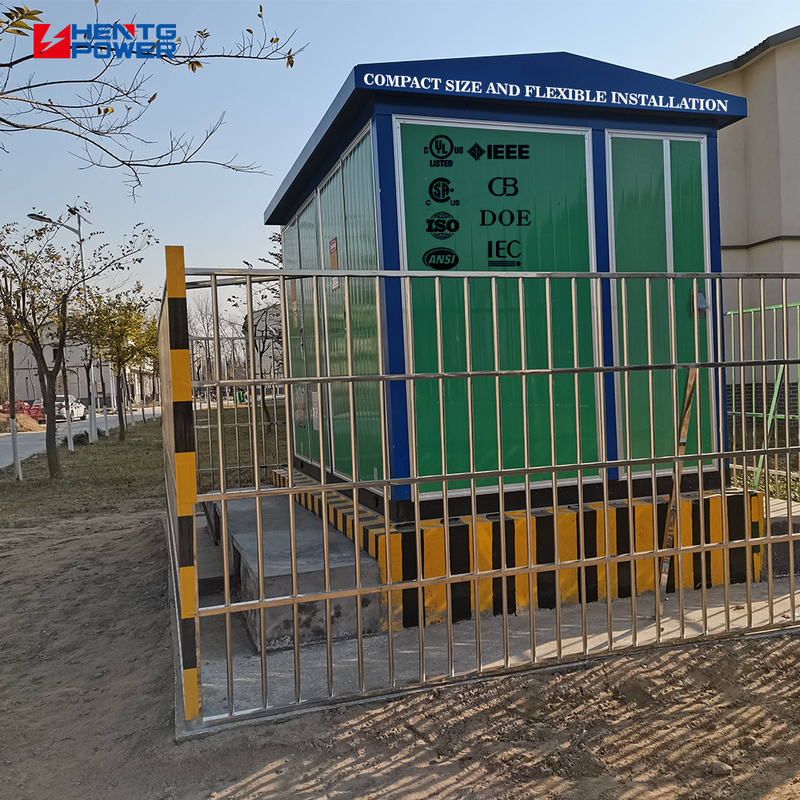

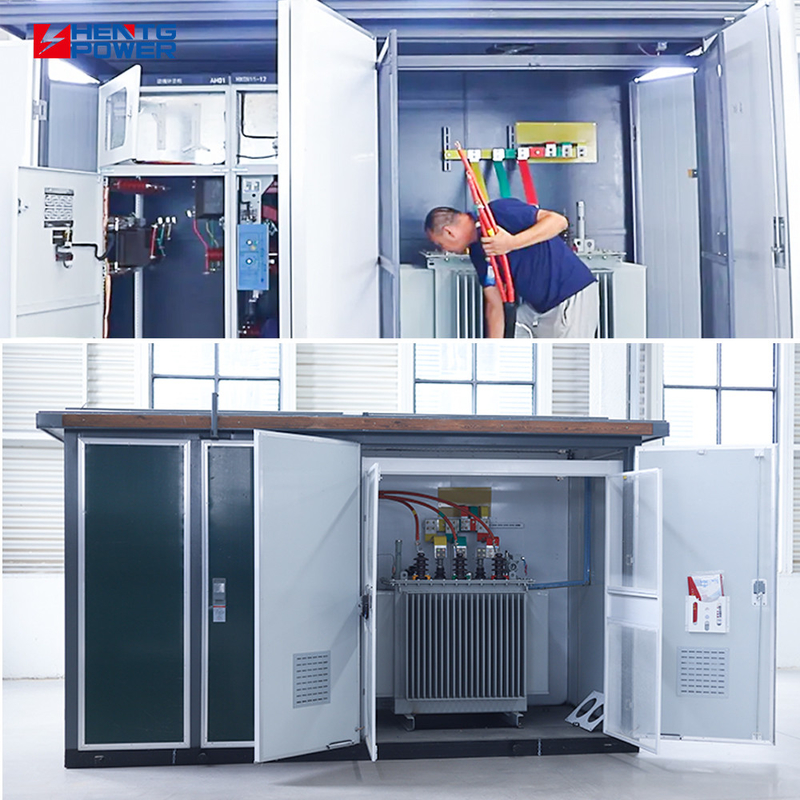

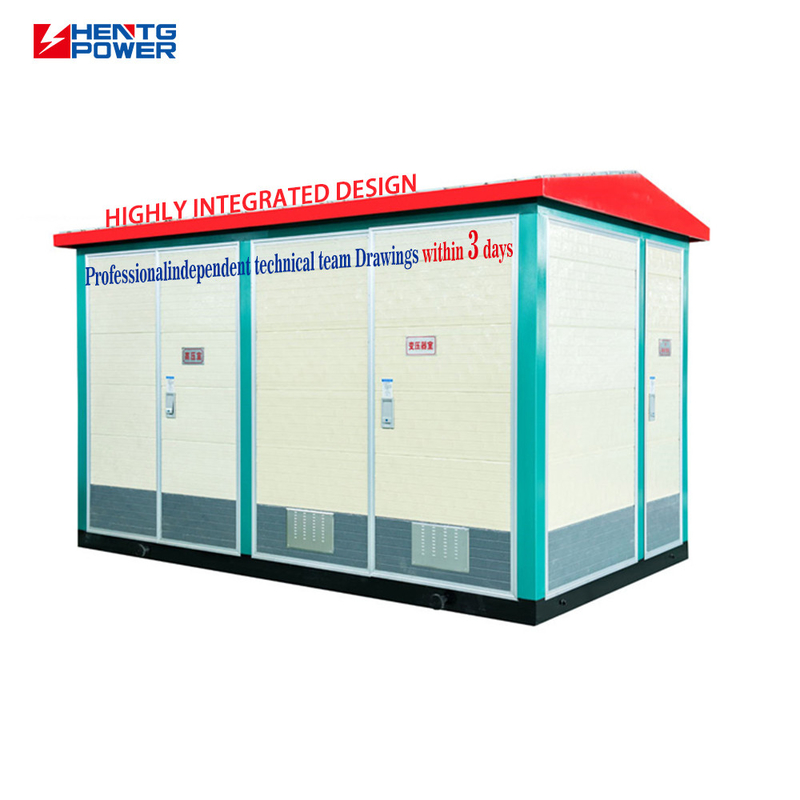

Name: 6kV Compact Distribution Substation Transformer Middle Voltage High Voltage Box Type
Brand: Hunan Hentg Power Electric Technology Co., Ltd.
SKU: ZGS Series
Price: 20.00 USD
Availability: InStock

Home > products > Compact Substation Transformer >

6kV Compact Distribution Substation Transformer Middle Voltage High Voltage Box Type

6kV Compact Distribution Substation Transformer

Distribution Substation Transformer Middle Voltage

Place of Origin:

Jiangsu, China

Brand Name:

HENTG Power

Certification:

Model Number:

ZGS Series

Chat Now

Request A Quote

Product Details

Frequency:

50Hz, 60Hz

Phase:

Three

Coil Number:

Multi Winding, Three Windings, Single Winding, Two Windings

Application:

Power Transformer

Coil Structure:

Layer Coil, Round Coil, Disc Coil

Output Voltage:

415V, 110V, 220V, 380V, 400V , 440V

Input Voltage:

11kV, 10.5kV, 3kV, 12.47kV, 6.6kV, 6.3kV, 6kV, 10kV, 35kV, 69kV

Type:

Oil-Immersed Transformer, Voltage Regulator Transformer

Product Name:

Pre-Installed Substation

Warranty:

36 Months

Installation Location:

Outdoor

Altitude:

<1000m (High Altitude Products Can Be Customized)

Protection Level:

IP33D/IP54

Capacity:

50-1000 KVA

Customized:

Highlight:

6kV Compact Distribution Substation Transformer

Distribution Substation Transformer Middle Voltage

Payment & Shipping Terms

Minimum Order Quantity

1 sets

Price

CN¥37,03-85,47/sets

Box Type Compact Substation 500kva 630kva 800kva Outdoor Power Transformer

Chat Now

500kVA Compact Substation Transformer Electric Voltage Transformer With Flyback Topology

Chat Now

Outdoor HV MV Substation Compact Transformer 45kVA 75kVA 112kVA Ground Mounted

Chat Now

3 Phase Compact Substation Transformer Step Down Voltage Transformer Tamper Proof

Chat Now

+86 15074989773

info@hentgpower.com

Chat Now

Product Description

6kV Compact Distribution Substation Transformer

Middle Voltage High Voltage Box Type transformer designed for reliable power distribution in various industrial and commercial applications.

Product Specifications

Attribute	Value
Frequency	50Hz, 60Hz
Phase	Three
Coil Number	Multi Winding, Three Windings, Single Winding, Two Windings
Application	Power transformer
Coil Structure	Layer coil, round coil, Disc Coil
Output Voltage	415V, 110V, 220V, 380V, 400V, 440V
Input Voltage	11kV, 10.5kV, 3kV, 12.47kV, 6.6kV, 6.3kV, 6kV, 10kV, 35kV, 69kV
Type	Oil-Immersed Transformer, Voltage Regulator Transformer
Warranty	36 months
Installation Location	Outdoor
Protection Level	IP33D/IP54
Capacity	50-1000 kVA
Customized	Accept

Product Overview

HENTG POWER 200KVA 500KVA 1000KVA Middle-Voltage/High-Voltage Box-type Substation 6kV YB Compact Transformer Distribution

HENTG Power's pad-mounted transformer is a fully sealed, fully insulated ground-mounted distribution unit, widely used in residential areas, shopping centers, industrial plants, and public parks. Built to North American standards, it offers high reliability, enhanced safety, and easy installation.

Key Benefits

Integrated lightning arrester, fuses, and grounding system to ensure safe and stable performance
Durable powder-coated enclosure in customizable RAL colors, ideal for diverse environments

Technical Specifications

HV Specifications

Parameter	Unit	Value
Rated Frequency	Hz	50
Rated Voltage	kV	6 10 35
Max Working Voltage	kV	6.9 11.5 40.5
Industrial Frequency Voltage-resisting Time	kV	32/36 42/48 95/118
Thunder and Lighting Ballistic Voltage-resisting Time	kV	60/70 75/85 185/215

LV Specifications

Parameter	Unit	Value
Rated Voltage	V	380 220
Rated Current Of Major Return Circuit	A	100-3200

Key Advantages

Aesthetic and Durable Appearance: Clean modern design with strong environmental adaptability
Proximity to Medium-Voltage Load Centers: Reduces distribution line length and improves power quality
Cost-Effective: Requires no civil infrastructure or fulltime staffing
Reusable and Environmentally Friendly: Modular design allows relocation and reuse

Frequently Asked Questions

Who are we?

HENTG POWER is a professional designer, manufacturer and installer of power system solutions founded in 2011, specializing in reliable, high-performance solutions for global power systems.

How can we guarantee quality?

We conduct pre-production samples and final inspections before shipment, providing QC & test reports. We manufacture oil type and dry type distribution transformers up to 500KV 480MVA power transformers.

Why choose us?

We have a professional technical team with 30+ senior engineers offering 24-hour online service with responses within 30 minutes.
