Hv 220V 1600KVA Step Up And Down Transformer Three Phase YB Compact Substation Suppliers
HV 220V 1600KVA Step Up And Down Transformer Three Phase YB Compact Substation Product Overview YB Compact Substation features a compact, tamper-proof design with front-access doors, ideal for outdoor installations in residential, commercial, and utility networks. Fully sealed and oil-immersed, they integrate transformer, HV/LV switchgear, and protection units for safe, space-saving power distribution. Key Specifications Attribute Value Type Distribution transformer Material
Hv 220V Step Up And Down Transformer
,Step Up And Down Compact Substation
,Three Phase YB Compact Substation

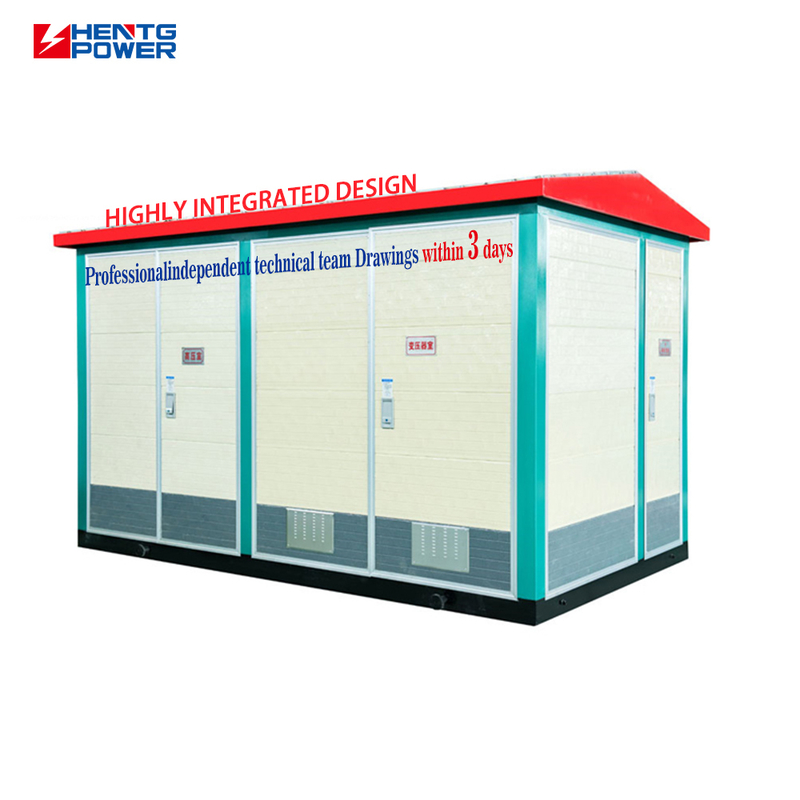

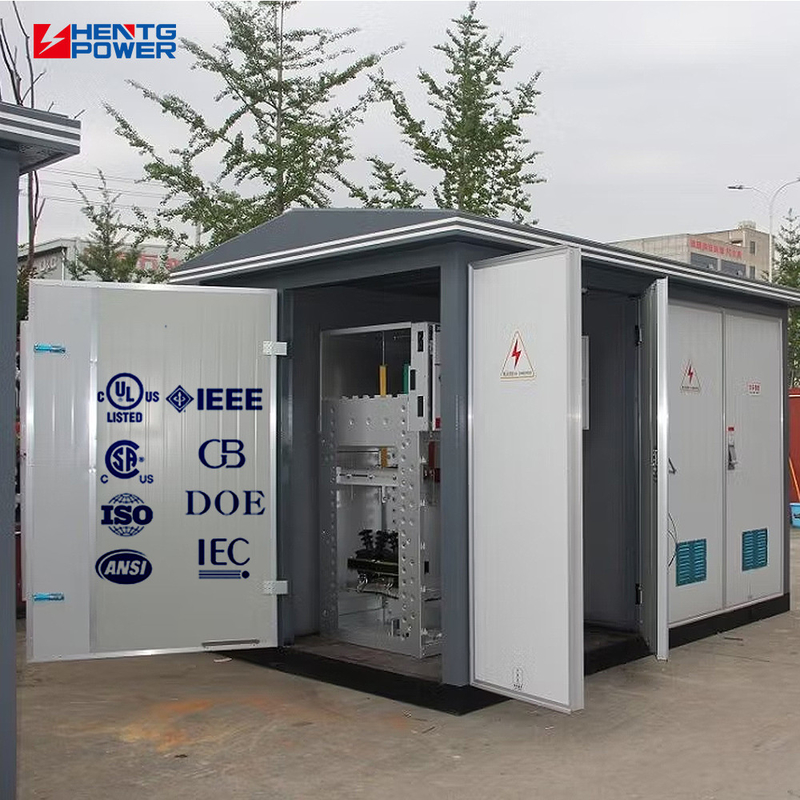

YB Compact Substation features a compact, tamper-proof design with front-access doors, ideal for outdoor installations in residential, commercial, and utility networks. Fully sealed and oil-immersed, they integrate transformer, HV/LV switchgear, and protection units for safe, space-saving power distribution.
| Attribute | Value |
|---|---|
| Type | Distribution transformer |
| Material | Aluminum, Copper |
| Frequency | 50Hz, 60Hz |
| Phase | Three |
| Input Voltage | 3kV, 6kV, 10kV, 15kV, 35kV, 69kV, 110kV, 115kV, 132kV, 220kV, 400kV, Other |
| Output Voltage | 220V, 380V |
| Capacity | 50~2000KVA |
| Protection | IP54/IP33D |
| Warranty | 3 Years |
| Parameter | Unit | Value |
|---|---|---|
| Rated Frequency | Hz | 50 |
| Rated Voltage | kV | 6 10 35 |
| Max Working Voltage | kV | 6.9 11.5 40.5 |
| Industrial Frequency Voltage-resisting Time | kV | 32/36 42/48 95/118 |
| Parameter | Unit | Value |
|---|---|---|
| Rated Voltage | V | 380 220 |
| Rated Current Of Major Return Circuit | A | 100-3200 |
| Rated short-circuit Current-resisting | kA | 15 30 50 |
- Aesthetic and Durable Appearance - The unit has a clean and modern appearance, with strong environmental adaptability. It integrates well with surrounding architecture and landscaping.
- Proximity to Medium-Voltage Load Centers - Enables deployment close to medium-voltage load centers, reducing distribution line length and improving power quality.
- Cost-Effective Operation - Requires no civil infrastructure, reducing initial investment. Long maintenance cycle results in lower total cost of ownership.
- Reusable and Environmentally Friendly - The modular substation can be relocated and reused based on urban development needs.
We respond to inquiries within 1 hour and recommend suitable transformers. Our professional team confirms all drawing contents within 7 days after payment, including technical data and parts list.
After design approval, we prepare stock, produce, and conduct quality inspection before shipment. We provide QC reports and test reports for quality assurance.
Our professional team provides installation guidance and on-site support. We offer more than 2 years of warranty service.
HENTG POWER is a professional designer, manufacturer and installer of power system solutions, founded in 2011. We specialize in reliable, high-performance solutions for global power systems.
We conduct pre-production samples and final inspections before shipment, providing QC & test reports. We accept Factory Acceptance Tests and manufacture transformers up to 500KV 480MVA based on international standards.
We have professional drawing and technical teams that confirm drawings within 7 days. Our team of 30+ senior engineers offers 24-hour online service with responses within 30 minutes.
-
