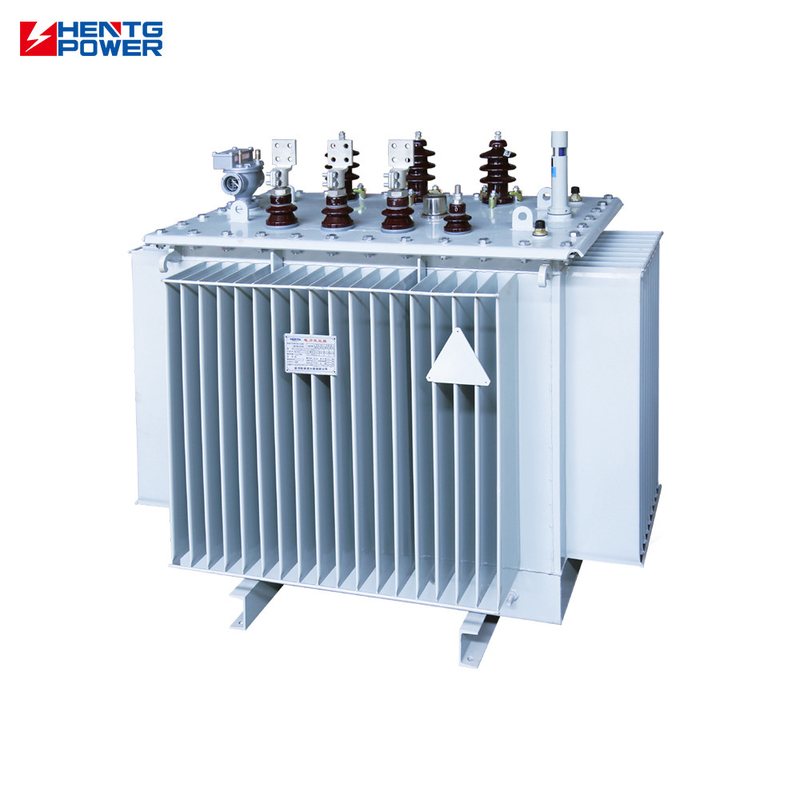

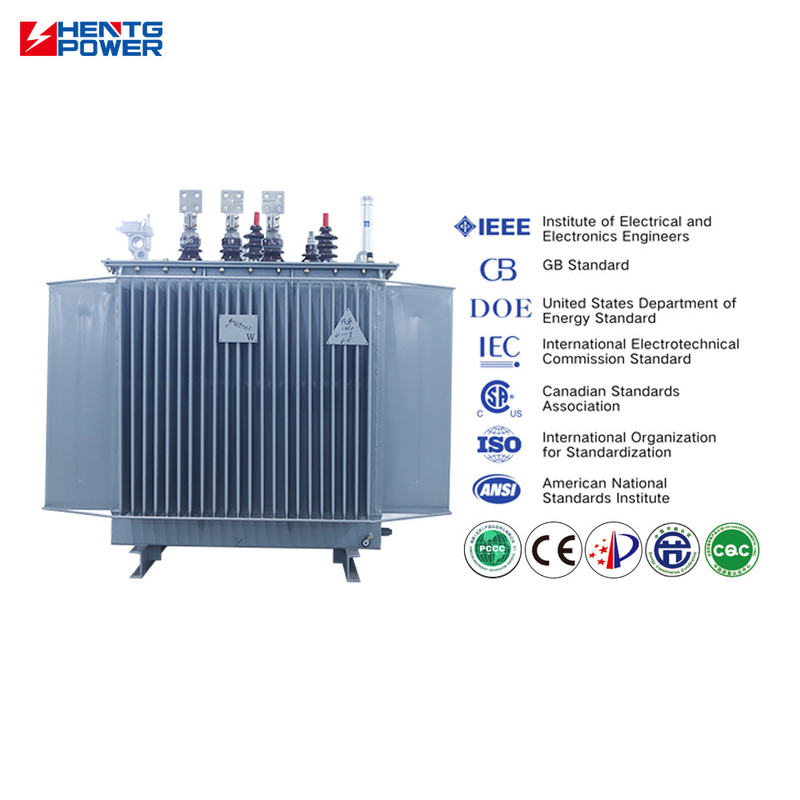

50kVA Double Winding Oil Immersed Transformer Variable Voltage Step Down Power Transformer
50kVA Double Winding Oil Immersed Transformer Variable Voltage Step Down Power Transformer Product Specifications Attribute Value Type Distribution Transformer, Oil-filled Transformer Material Copper, Aluminum, Steel Frequency 50Hz Winding Material Copper, Aluminum Application Industrial, Electronic Phase Three Coil Structure Circular coil Coil Number Dual-winding coil Input Voltage 10kV, 35kV, 110kV Output Voltage 0.4KV Vector Group Dyn 11 Cooling Method ONAN Size 195*168
double winding oil immersed transformer
,50kva oil immersed transformer
,50kva step down power transformer
| Attribute | Value |
|---|---|
| Type | Distribution Transformer, Oil-filled Transformer |
| Material | Copper, Aluminum, Steel |
| Frequency | 50Hz |
| Winding Material | Copper, Aluminum |
| Application | Industrial, Electronic |
| Phase | Three |
| Coil Structure | Circular coil |
| Coil Number | Dual-winding coil |
| Input Voltage | 10kV, 35kV, 110kV |
| Output Voltage | 0.4KV |
| Vector Group | Dyn 11 |
| Cooling Method | ONAN |
| Size | 195*168*174CM |
- Built with high-quality cold-rolled silicon steel sheets and oxygen-free copper windings, minimizing no-load and load losses
- Lower core and copper losses than IEC standards, with reduced temperature rise
- Environmentally friendly design reduces long-term operational costs
- Improves system stability and grid efficiency
- S20 type energy-efficient secondary oil-immersed transformer
| Rated capacity (KVA) | Vector Group | Voltage Combination | No-load loss | Load loss | Impedance |
|---|---|---|---|---|---|
| 30 | Yyn0 / Dyn11 | 10 6.3 6 | 70 | 505 | 4.0 |
| 50 | 90 | 730 | |||
| 63 | 100 | 870 | |||
| 80 | 115 | 1050 | |||
| 100 | 135 | 1265 | |||
| 125 | 150 | 1510 | |||
| 160 | 180 | 1850 | |||
| 200 | 215 | 2185 | |||
| 250 | 260 | 2560 | |||
| 315 | 305 | 3065 | |||
| 400 | 370 | 3615 | |||
| 500 | 430 | 4330 | |||
| 630 | 510 | 4960 | 4.5 | ||
| 800 | 630 | 6000 | |||
| 1000 | 745 | 8240 | |||
| 1250 | 870 | 9600 | |||
| 1600 | 1050 | 11600 | |||
| 2000 | 1225 | 14640 | 5.0 | ||
| 2500 | 1440 | 14840 |
-
