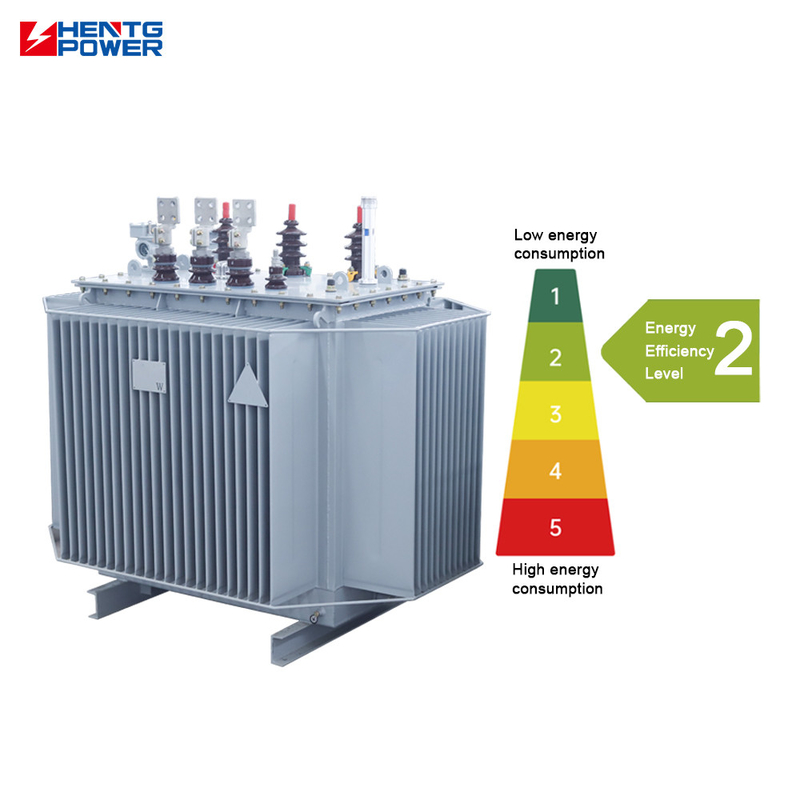

630kVA Mv Hv Oil Immersed Transformer Electrical Isolation Three Phase Power Transformer
630kVA MV HV Oil Immersed Transformer Electrical Isolation Three Phase Power Transformer Product Specifications Attribute Value Type Distribution Transformer, Oil-filled Transformer Material Copper, Aluminum, Steel Frequency 50Hz Shape Rectangle Winding Material Copper, Aluminum Application Electronic, Industrial Phase Three Coil Structure Circular coil Coil Number Dual-winding coil Input Voltage 10kV, 35kV, 110kV Output Voltage 0.4KV Color White Size 150*80*120CM Vector
630kVA Three Phase Power Transformer
,630kVA Hv Oil Immersed Transformer
,Electrical Isolation Oil Immersed Transformer
| Attribute | Value |
|---|---|
| Type | Distribution Transformer, Oil-filled Transformer |
| Material | Copper, Aluminum, Steel |
| Frequency | 50Hz |
| Shape | Rectangle |
| Winding Material | Copper, Aluminum |
| Application | Electronic, Industrial |
| Phase | Three |
| Coil Structure | Circular coil |
| Coil Number | Dual-winding coil |
| Input Voltage | 10kV, 35kV, 110kV |
| Output Voltage | 0.4KV |
| Color | White |
| Size | 150*80*120CM |
| Vector Group | Dyn 11 |
| Cooling Method | ONAN |
| Capacity | 63kVA |
High-voltage oil-immersed power transformers with multi-layer pressboard insulation, enhanced via pre-impregnated lamination to improve thermal cycling and voltage surge resilience.

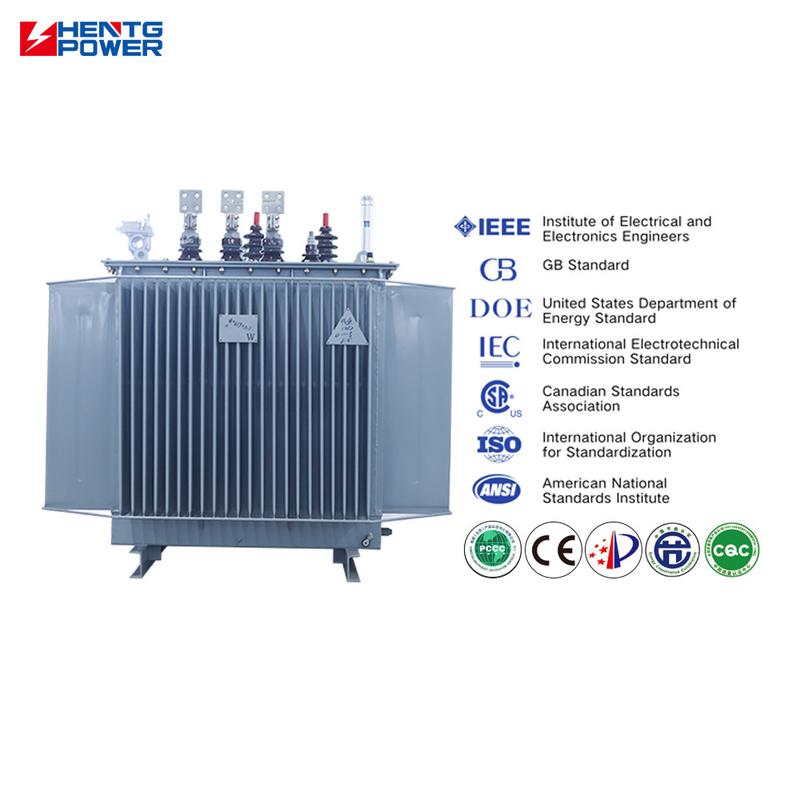

- Compliant with IEC, ANSI, and BS standards, with CE, ISO9001, and type test certificates available
- 100% factory-tested for electrical performance and vacuum-dried for insulation reliability
- Ensures safe and compliant procurement for global projects with guaranteed performance
| Rated Capacity (KVA) | Vector Group | Voltage Combination | No-load Loss | Load Loss | Impedance |
|---|---|---|---|---|---|
| 30 | Yyn0 / Dyn11 | 10 6.3 6 | 70 | 505 | 4.0 |
| 50 | 90 | 730 | |||
| 63 | 100 | 870 | |||
| 80 | 115 | 1050 | |||
| 100 | 135 | 1265 | |||
| 125 | 150 | 1510 | |||
| 160 | 180 | 1850 | |||
| 200 | 215 | 2185 | |||
| 250 | 260 | 2560 | |||
| 315 | 305 | 3065 | |||
| 400 | 370 | 3615 | |||
| 500 | 430 | 4330 | |||
| 630 | 510 | 4960 | 4.5 | ||
| 800 | 630 | 6000 | |||
| 1000 | 745 | 8240 | |||
| 1250 | 870 | 9600 | |||
| 1600 | 1050 | 11600 | |||
| 2000 | 1225 | 14640 | 5.0 | ||
| 2500 | 1440 | 14840 |
HENTG POWER is a professional designer, manufacturer and installer of power system solutions around the world. Founded in 2011, we occupy 100,000 square meters and specialize in reliable, high-performance solutions for global power systems.
- Always a pre-production sample before mass production
- Final inspection before shipment with QC & test reports provided
- We accept FAT (Factory Acceptance Test)

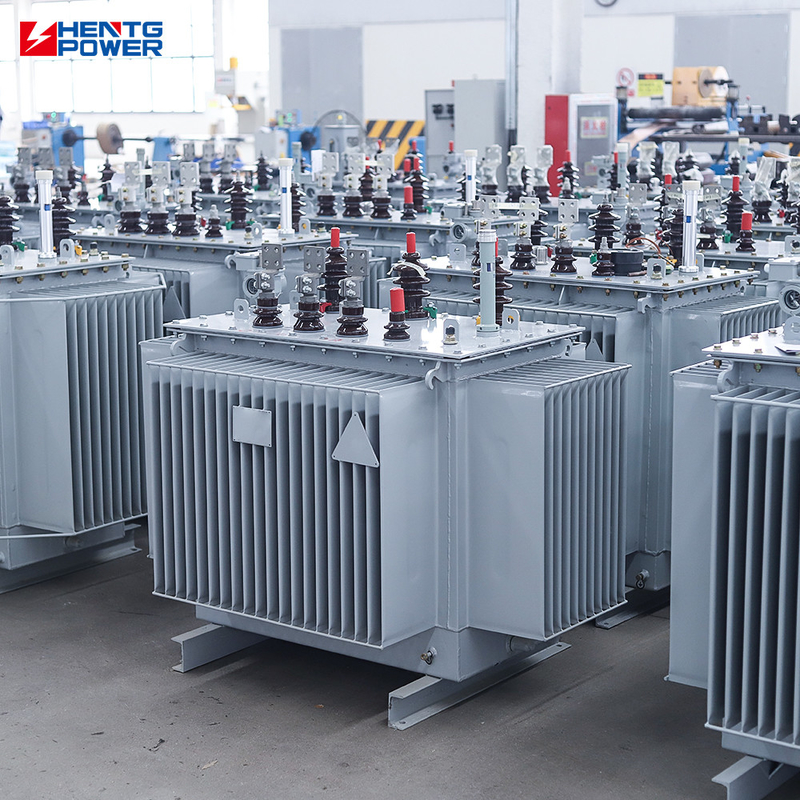

- Factory can manufacture oil type and dry type distribution transformers, max 500KV 480MVA power transformer, GIS, switchgear, substation
- Compliant with ANSI/IEEE/DOE2016/CSA/IEC60076 standards
- 2+ years guarantee service provided
- Professional and independent drawing team and technical team
- Expected to confirm all drawing contents within 7 days
- 30+ senior engineers offering 24/7 online service with 30-minute response time
Accept OEM, business payment terms are negotiable.
-
