Place of Origin:
Jiangsu, China
Brand Name:
HENTG Power
Certification:
CE
Model Number:
YB/ZGS
| Attribute | Value |
|---|---|
| Type | distribution transformer |
| Material | Aluminum, Copper |
| Frequency | 50Hz, 60Hz |
| Shape | Rectangle |
| Winding Material | Aluminum, Copper |
| Application | Power |
| Phase | Three |
| Coil Structure | Circular coil |
| Coil Number | Multi-winding coil |
| Input Voltage | 3kV, 6kV, 10kV, 15kV, 35kV, 69kV, 110kV, 115kV, 132kV, 220kV, 400kV |
| Output Voltage | 220V, 380V |
| Standard | GB/T17467 |
| Capacity | 50~2000KVA |
| Protection | IP54/IP33D |
| Warranty | 3 Years |
| Feature | High Frequency |
| Cooling Method | ONAN ONAF OFAF |
| Power | Custom Designed |
| Product type | Transformer |
| Color | Green |

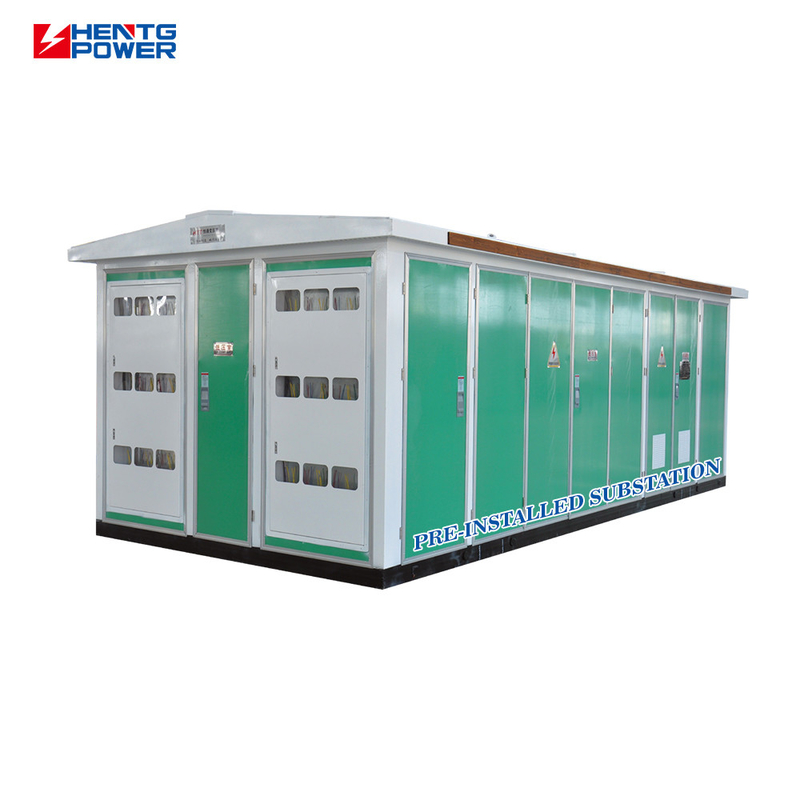

Three-phase Oil Immersed Transformer Compact Substation Manufacturers High Frequency Current Transformer 1200kVA
| HV Specifications | |||
|---|---|---|---|
| Rated Frequency | Hz | 50 | |
| Rated Voltage | kV | 6 10 35 | |
| Max Working Voltage | kV | 6.9 11.5 40.5 | |
| Industrial Frequency Voltage-resisting Time | kV | 32/36 42/48 95/118 | |
| Thunder and Lighting Ballistic Voltage-resisting Time | kV | 60/70 75/85 185/215 | |
| Rated Current | A | 400 630 | |
| Rated Brief-period Current-resisting | kA | 12.5(2s) 16(2s) 20(2s) | |
| Rated Crest Value Current-resisting | kA | 32.5 40 50 | |
| LV Specifications | |||
| Rated Voltage | V | 380 220 | |
| Rated Current Of Major Return Circuit | A | 100-3200 | |
| Rated short-circuit Current-resisting | kA | 15 30 50 | |
| Rated Crest Value Current-resisting | kA | 30 63 110 | |
| Branch Circuit | A | 10-800 | |
| Quantity Of Branch | line | 1-12 | |
| Compensation Circuit | kVAR | 0-360 | |
| Transformer Specifications | |||
| Rated Capacity | kVA | 50-2000 | |
| Short-circuit Impedance | % | 4 6 | |
| Scope Of Branch Connection | +2x2.5% ±5% | ||
| Vector Group | Yyn0 Dyn11 | ||
We will respond to your inquiry within 1 hour and recommend suitable transformer according to your needs. At the same time, we will provide you with reasonable quotations and payment terms. We have a professional and independent drawing team and technical team, and we will confirm all the contents on the drawing with you within 7 days after payment. The drawing usually contains technical data, weight and parts list.
Consult NowAfter designing the production drawing, the factory will prepare the stock, produce, and conduct quality inspection before shipment. If you have special accessory requirements, we can provide you with accessories. Our raw materials are strictly screened. In the quality inspection stage, we will provide you with the dual guarantee of QC report and test report to escort your products.
We have a professional team to guide the installation, and also support on-site installation. We will provide you with more than 2 years of warranty service. Welcome to join us and create a win-win situation.
Start Business Now
HENTG POWER is a professional designer, manufacturer and installer of power system solution around the World, was founded in 2011, occupies 100,000 square meter. specializing in reliable, high-performance solutions for global power systems.
Always a pre-production sample before mass production; Always final Inspection before shipment, We will provide QC & test reports. We accept FAT(Factory Acceptance Test). Factory can manufacture oil type and dry type distribution transformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on ANSI/IEEE/DOE2016/CSA/IEC60076 standard. We will provide you with the guarantee service of over 2 years.
We have the professional and independent drawing team and technical team, It is expected that we can confirm all the contents on the drawings with you within 7 days. we have a professional technical team with 30+ senior engineers offer 24 hours online service and response within 30 mins.
Accept OEM, business payment are negotiated.
