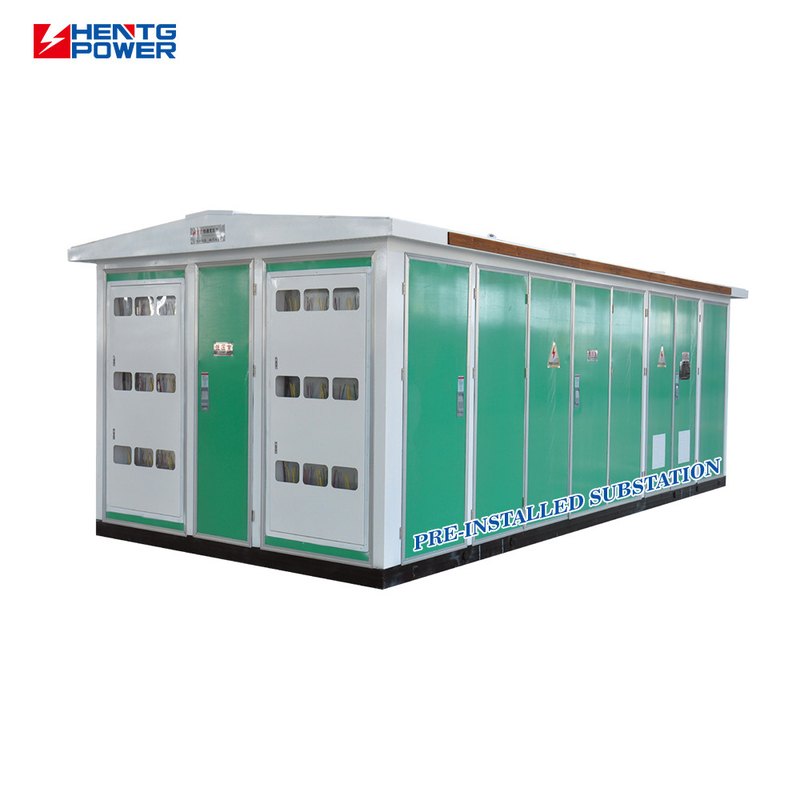

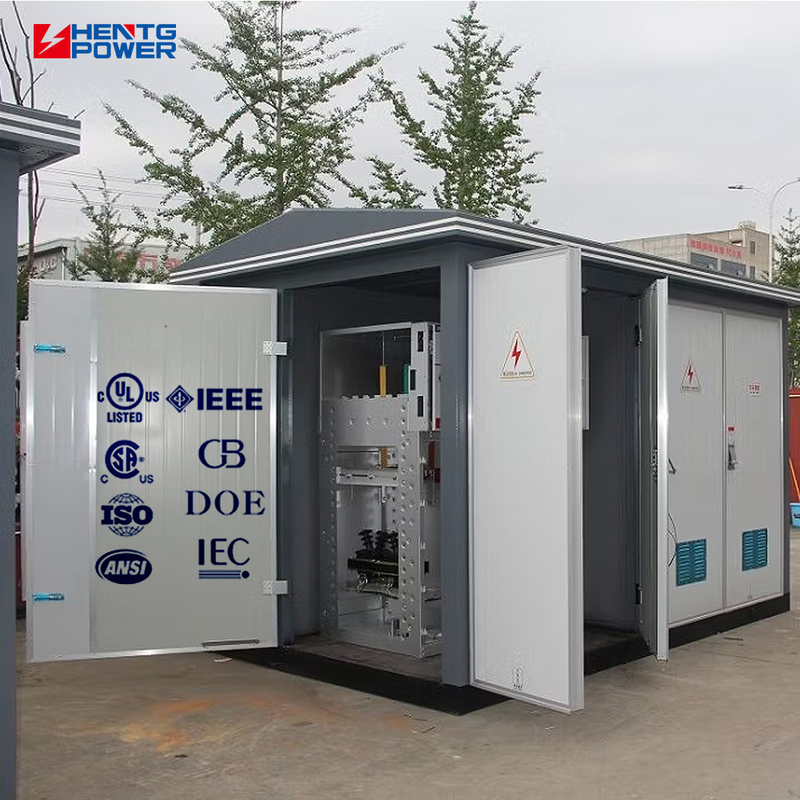

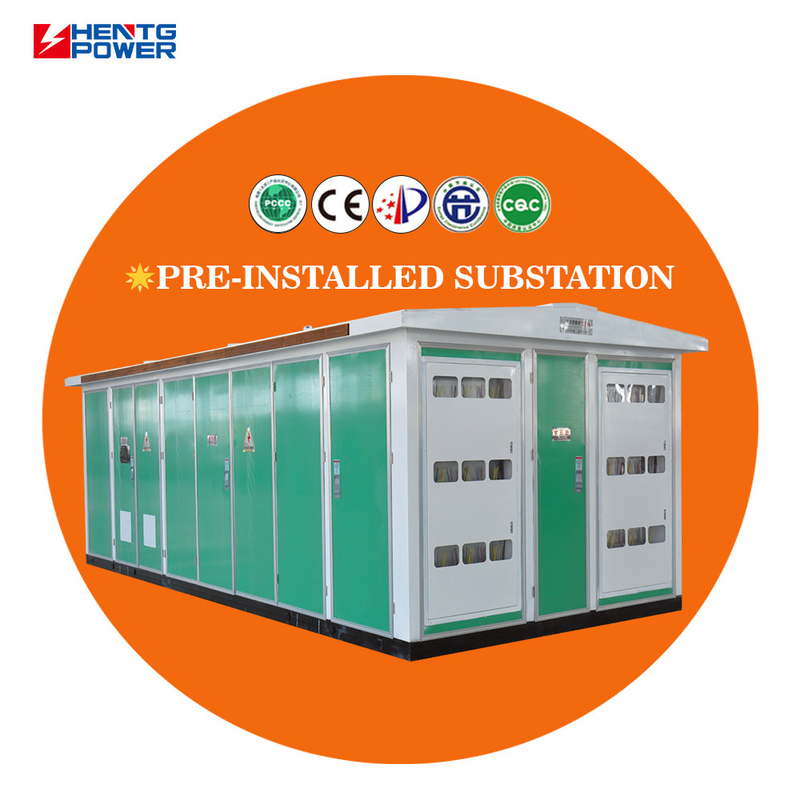

Compact Substation Electricity Power Trafo Transformer Mv 3 Phase Oil Type 1000kva 1500Kva
Compact Substation Electricity Power Trafo Transformer MV 3 Phase Oil Type 1000kVA 1500kVA Product Specifications Attribute Value Type Distribution transformer, Oil-filled Electrical Distribution Transformer Material Copper, Aluminum, Cooper Frequency 50Hz, 60Hz Shape Rectangle Winding Material Aluminum, Copper Application Power Phase Three Coil Structure Circular coil Coil Number Multi-winding coil Input Voltage 3kV, 6kV, 10kV, 15kV, 35kV, 69kV, 110kV, 115kV, 132kV, 220kV,
Power Trafo Transformer Mv 3 Phase
,Compact Substation Trafo Transformer Mv
,Oil Type Trafo Transformer Compact Substation
| Attribute | Value |
|---|---|
| Type | Distribution transformer, Oil-filled Electrical Distribution Transformer |
| Material | Copper, Aluminum, Cooper |
| Frequency | 50Hz, 60Hz |
| Shape | Rectangle |
| Winding Material | Aluminum, Copper |
| Application | Power |
| Phase | Three |
| Coil Structure | Circular coil |
| Coil Number | Multi-winding coil |
| Input Voltage | 3kV, 6kV, 10kV, 15kV, 35kV, 69kV, 110kV, 115kV, 132kV, 220kV, 400kV |
| Output Voltage | 11kV, 415V, 110V, 220V, 380V, 440V, 480V |
| Product Name | Compact Substation |
| Warranty | 3 Years |
| Cooling Method | ONAN ONAF OFAF |
| Operating Temperature | -25~25 |
| Feature | Compact |
| Vector Group | Dyn11/Yyn0 |
| Primary Voltage | 6KV, 10KV 35KV |
| Transformer Type | Oil-type |
HENTG POWER Compact Substation Electricity Power 1500kVA Trafo Transformer MV 3 Phase Oil Type 1000kVA Voltage 35kV Transformer
- Solar and wind farms
- Urban grid upgrades
- Smart infrastructure
- Industrial zones
- Large commercial facilities
| Parameter | Unit | Value |
|---|---|---|
| Rated Frequency | Hz | 50 |
| Rated Voltage | kV | 6 10 35 |
| Max Working Voltage | kV | 6.9 11.5 40.5 |
| Industrial Frequency Voltage-resisting Time | kV | 32/36 42/48 95/118 |
| Thunder and Lighting Ballistic Voltage-resisting Time | kV | 60/70 75/85 185/215 |
| Rated Current | A | 400 630 |
| Rated Brief-period Current-resisting | kA | 12.5(2s) 16(2s) 20(2s) |
| Rated Crest Value Current-resisting | kA | 32.5 40 50 |
| Parameter | Unit | Value |
|---|---|---|
| Rated Voltage | V | 380 220 |
| Rated Current Of Major Return Circuit | A | 100-3200 |
| Rated short-circuit Current-resisting | kA | 15 30 50 |
| Rated Crest Value Current-resisting | kA | 30 63 110 |
| Branch Circuit | A | 10-800 |
| Quantity Of Branch | line | 1月12日 |
| Compensation Circuit | kVAR | 0-360 |
| Parameter | Unit | Value |
|---|---|---|
| Rated Capacity | kVA | 50-2000 |
| Short-circuit Impedance | % | 4 6 |
| Scope Of Branch Connection | +2x2.5% ±5% | |
| Vector Group | Yyn0 Dyn11 |
